Zīmols
Ražotāja daļas nr
AOA-915-5ACM
Garantija
?
24 mēneši
EAN numurs
4718050307524

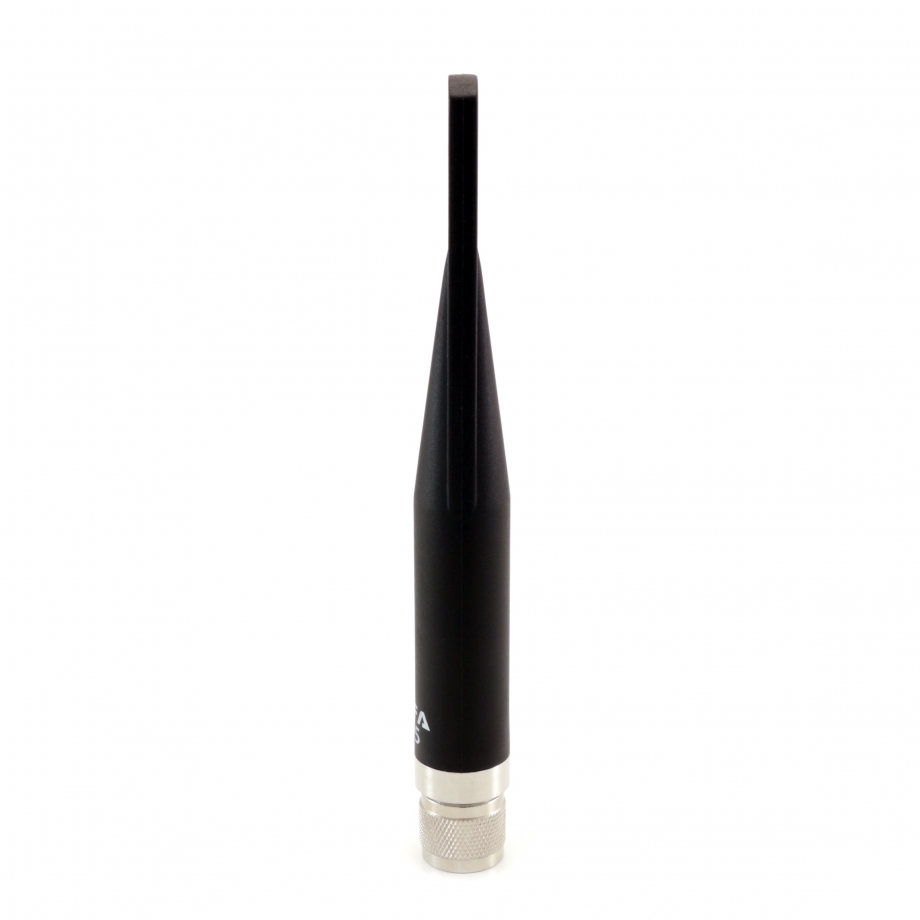

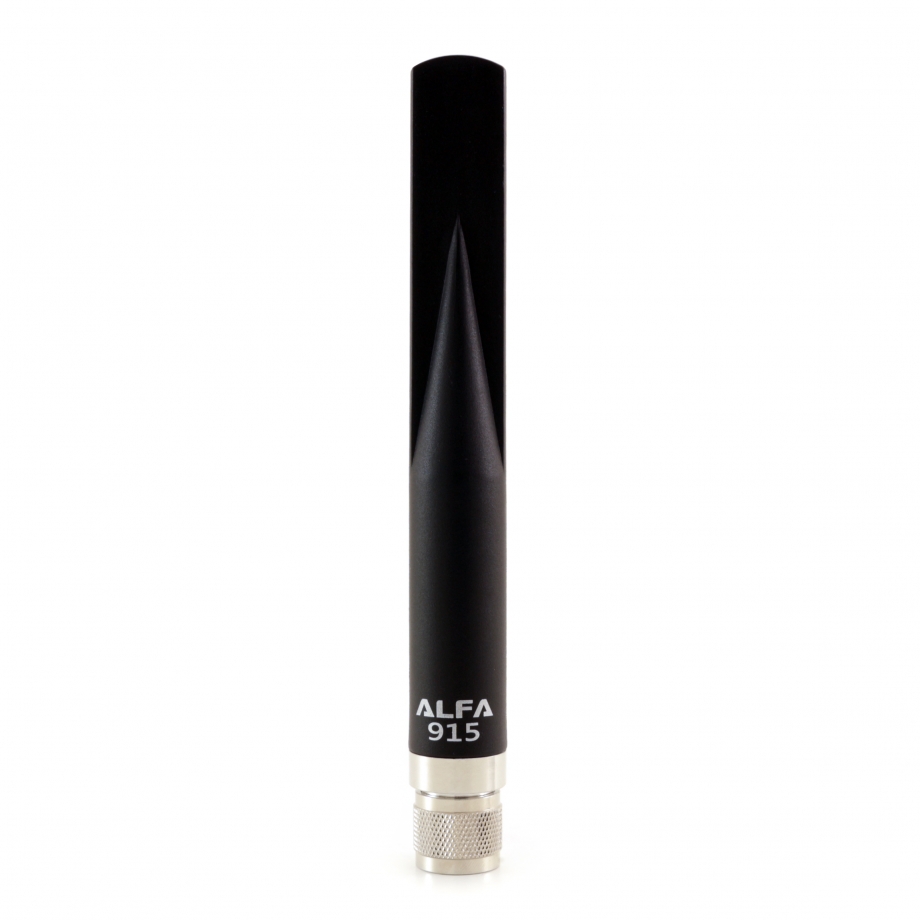

Alfa LoRa/HaLow 915MHz antena 5dBi N-Male
ir noliktavā
?
10.71 €
10.71 €
Noliktavā nepietiek preces. Lūdzu, reģistrējieties, lai noformētu iepriekšpasūtījumu.
Preces apraksts
AOA-915-5ACM ir visvirziena āra antena ar 5 dBi pastiprinājumu, kas darbojas 902-928 MHz frekvenču diapazonā un tādējādi aptver LoRa/HaLow/Sigfox frekvenci (915 MHz). Antena ir aprīkota ar N Male savienotāju. AOA-915-5ACM korpuss ir izgatavots no izturīgiem, laikapstākļu drošiem materiāliem, un to var izmantot dažādos klimatiskajos apstākļos. Šīs kompaktās antenas garums ir 18 cm un diametrs 22 mm.
Saderīgi produkti
Specifikācijas
Bezvadu tīkls
Standarti
802.11ah
Antena
Antenas dizains
Omni
Bezvadu antenas frekvences diapazons un pastiprinājums
0.902 - 0.928 (GHz) 5 (dBi)
Stara platums
360 °
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji

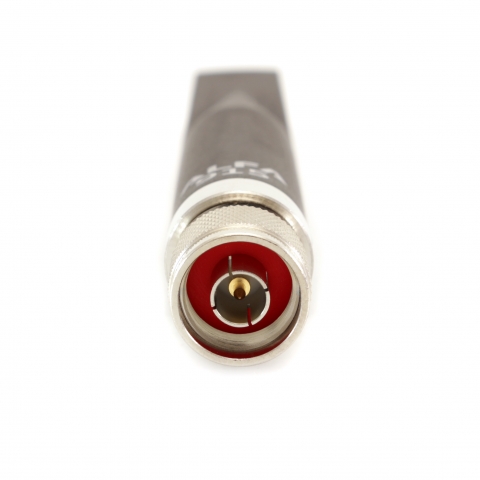

(1) N Male
Fiziskie parametri
Izmēri

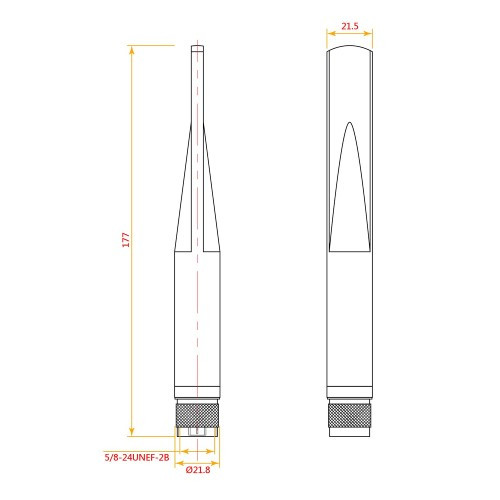

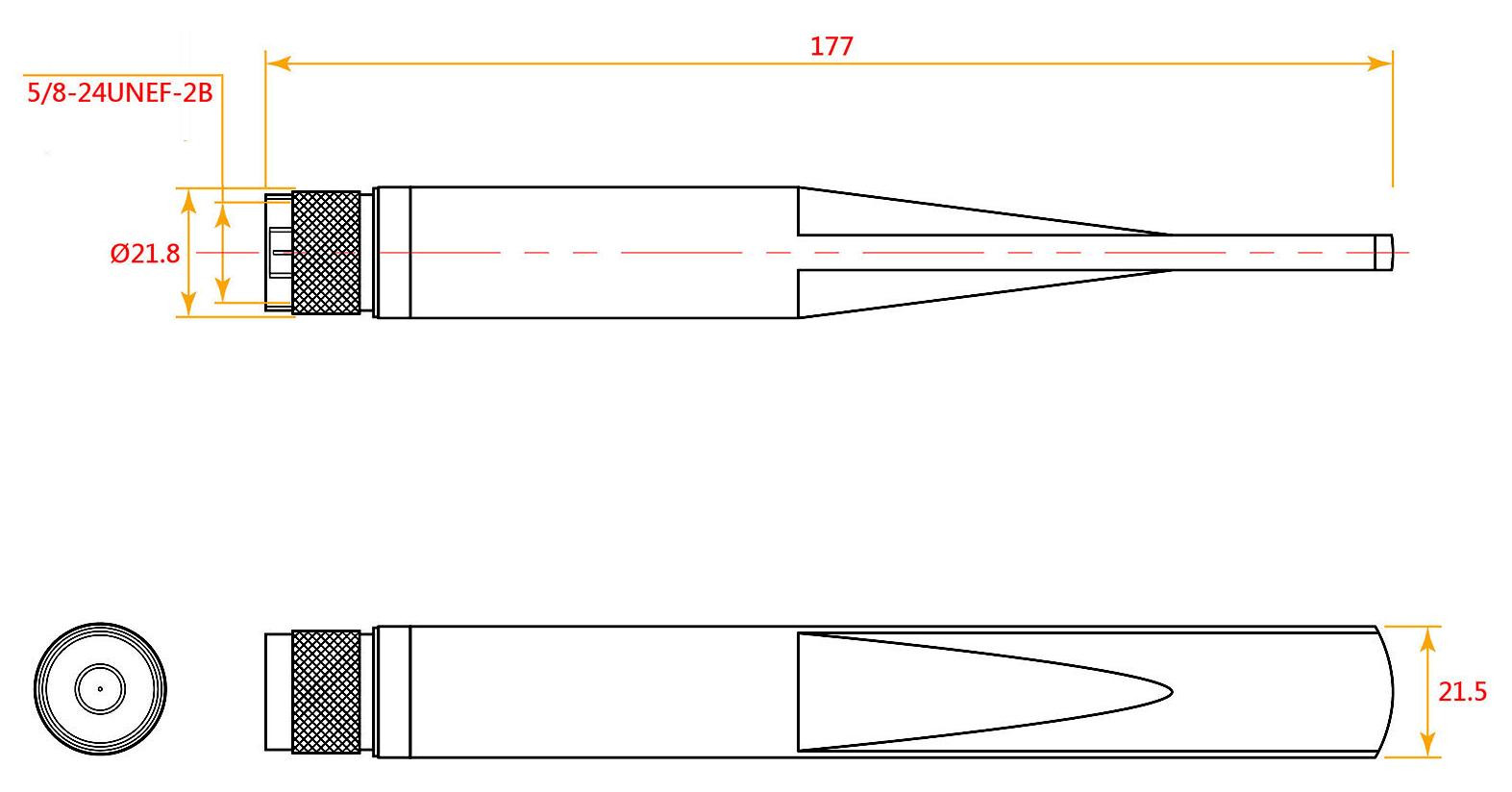

Ø22 x 180 mm
Svars
0.082 kg
Darbības temperatūra
-40 °C līdz 85 °C
