Zīmols
Ražotāja daļas nr
AOA-2458-79AM
Garantija
?
24 mēneši
EAN numurs
4718050306985

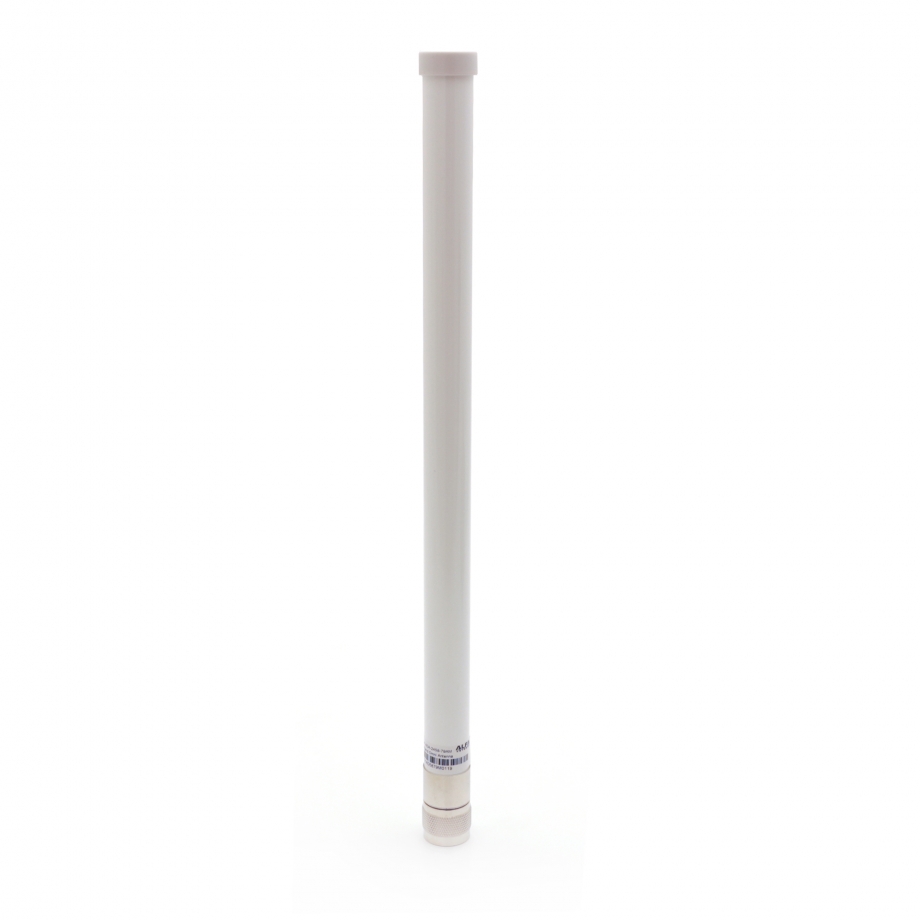

Alfa 2.4/5GHz āra Omni antena 7/9dBi N-Male
ir noliktavā
?
18.74 €
18.74 €
Pieejamas preces variācijas
Preces apraksts
ALFA AOA-2458-79AM ir divjoslu visvirzienu omni antena no ALFA Networks, kas paredzēta lietošanai ārpus telpām. Tā darbojas 2400-2483,5 MHz frekvenču joslā ar 7 dBi pastiprinājumu un 5150-5875 MHz frekvenču joslā ar 9 dBi pastiprinājumu, izmantojot SISO 1x1 tehnoloģiju. Antena ir aprīkota ar ūdensizturīgu N Male savienotāju. Šī ir lieliska antena izmantošanai uz laivām vai autofurgoniem.

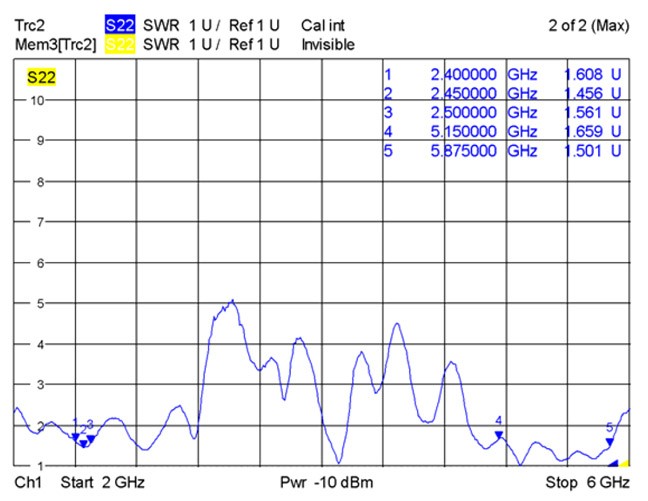

VSWR

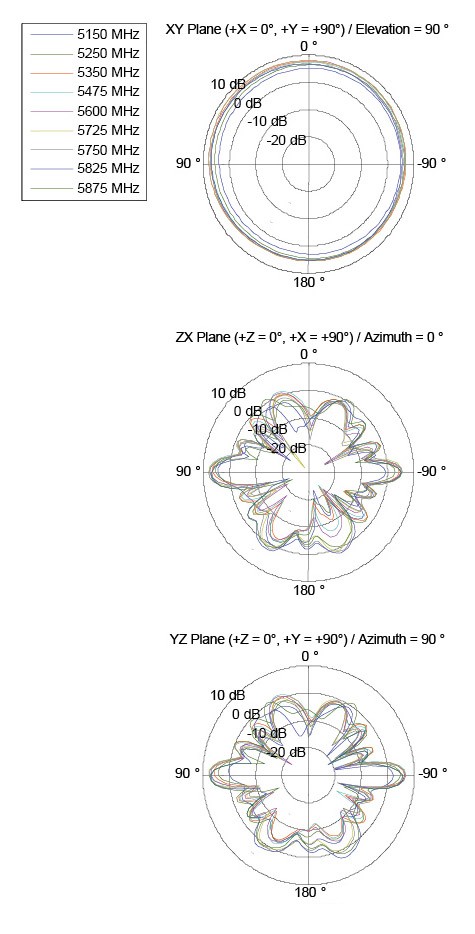

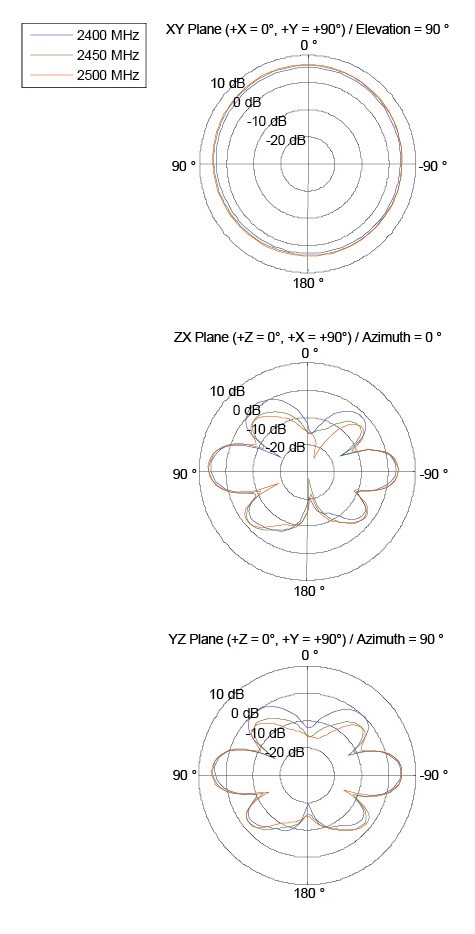

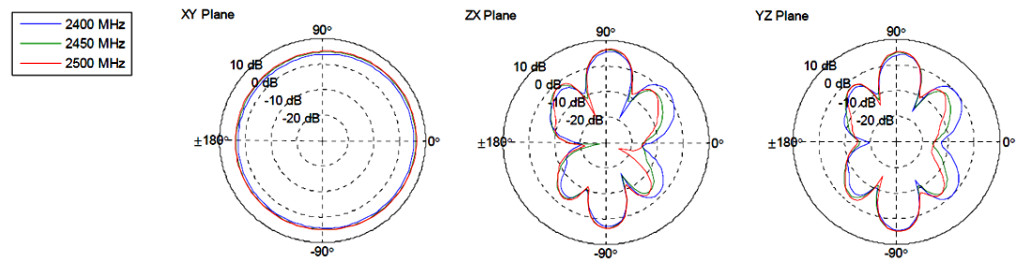

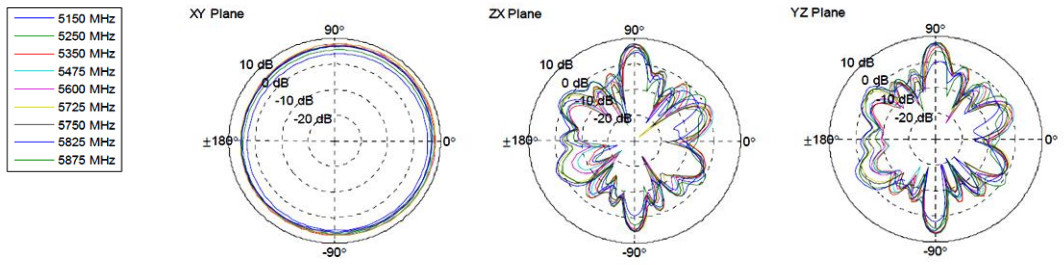

Frekvenču diagramma
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Bezvadu antenas frekvences diapazons un pastiprinājums
2.4 - 2.5 (GHz) 7 (dBi), 5.15 - 5.875 (GHz) 9 (dBi)
Stara platums
360 ° Vertikāli
Polarizācija
Lineāra, Vertikālā
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji

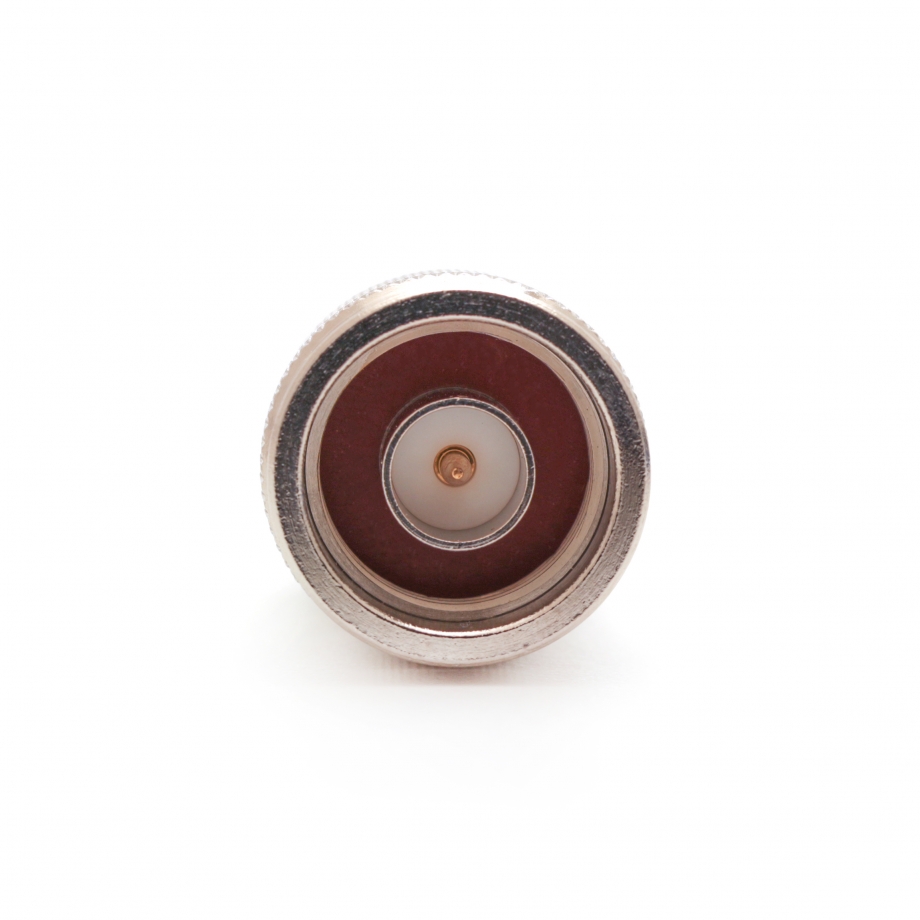

(1) N Male
Fiziskie parametri
Krāsa
Balts
Materiāls
Stikla šķiedra
Izmēri
Ø22 x 322 mm
Darbības temperatūra
-40 °C līdz 85 °C
Vide
Āra
