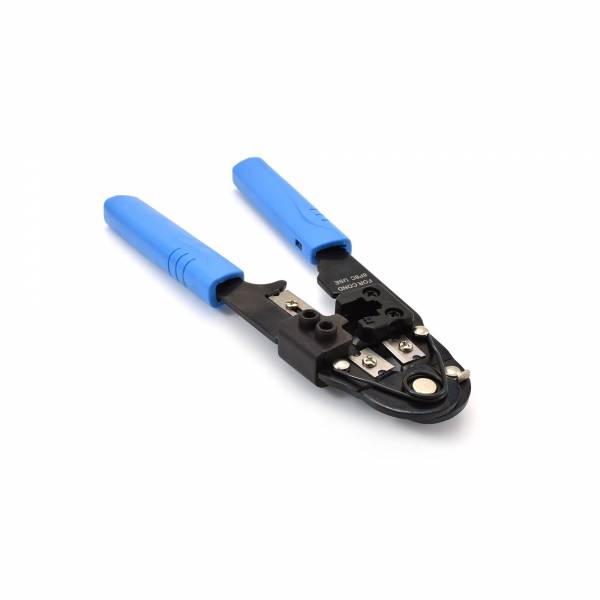

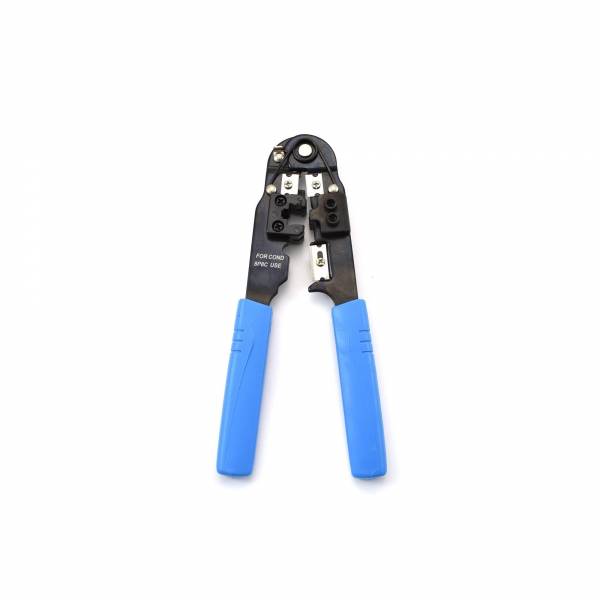

Knaibles RJ45 savienotājiem TOL-210
ir noliktavā
?
3.92 €
3.92 €
Preces apraksts
Appresēšanas instruments ir paredzēts vadu savienošanai savā starpā vai ar savienotāju tapām, veicot elektroinstalācijas darbus, neizmantojot lodēšanu vai metināšanu. Ar appresēšanas instrumentu var ātri un viegli appresēt savienotāju kabelim. Appresēšanas procesā plastmasas savienotājs tiek caurdurts, tadējādi noturot katru no vadiem un ļaujot pārraidīt datus caur savienotāju.
Appresēšanas instrumenta izmantošana:
- Noņemiet izolāciju no kabeļa 25 mm attālumā no tā gala
- Untwist and straighten the wires inside the cable.
- Arrange the wires into the right order.
- Cut the wires into an even line 13 mm from sheathing.
- Insert the wires into the RJ-45 connector.
- Stick the connector into the crimping part of the tool and squeeze twice.
- Remove the cable from the tool and check that all the pins are down.
