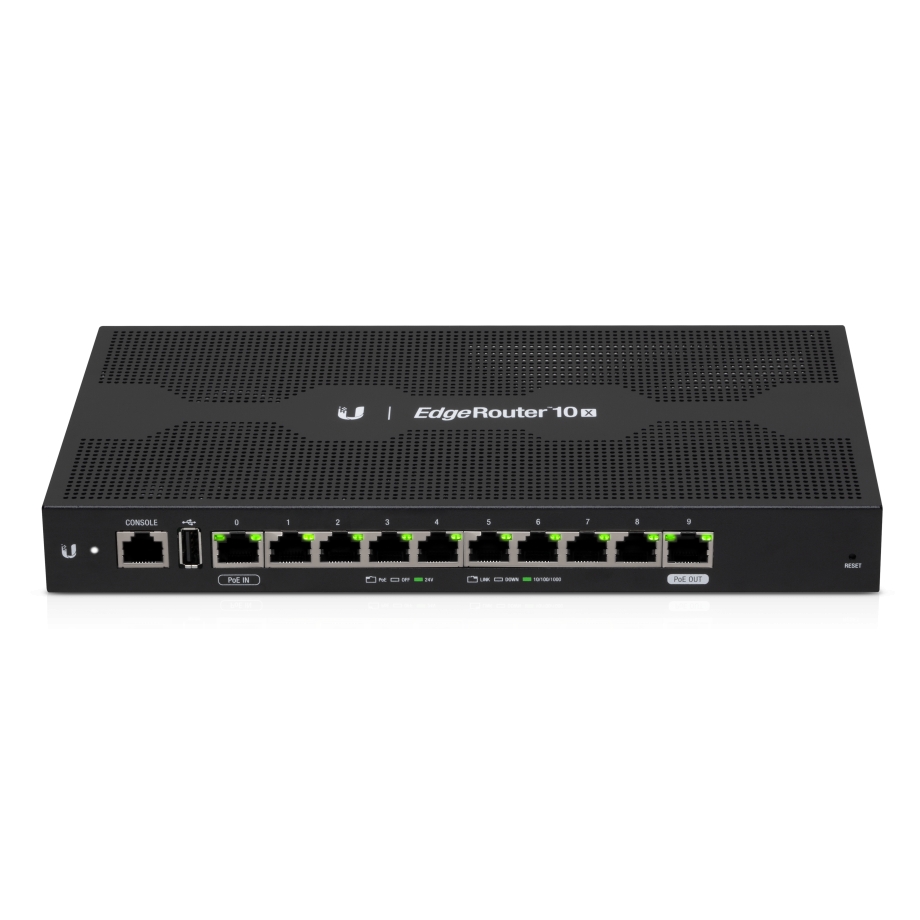

EdgeRouter 10X
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Pieejamas alternatīvas
Preces apraksts
Gigabitu maršrutētājs ar integrētu 2. slāņa komutatoru, desmit Gigabit RJ45 portiem, PoE ieeju un PoE passthrough portu.

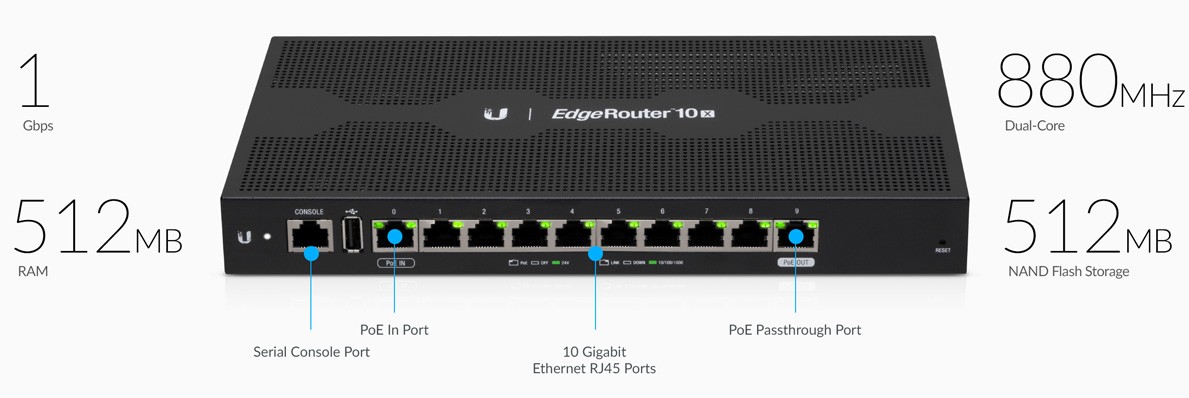

EdgeRouter™ 10X ir moderns gigabitu maršrutētājs ar PoE atbalstu un labāko cenas un veiktspējas attiecību. Desmit Gigabit RJ45 porti nodrošina vadu savienojamību ar PoE atbalstu pirmajā portā un PoE passthrough desmitajā portā. EdgeRouter 10X atbalsta 2. slāņa komutāciju ar vienu iekšējo komutatoru. Konfigurēšanai izmantojiet EdgeOS® vai UISP®.
Universāls dizains

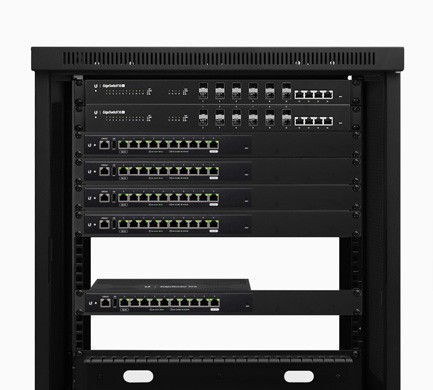

EdgeRouter 10X var uzstādīt statnē, izmantojot EdgeRouter Rack Mount Kit, modelis ER-RMKIT (iegādājams atsevišķi).
Centralizēta pārvaldība

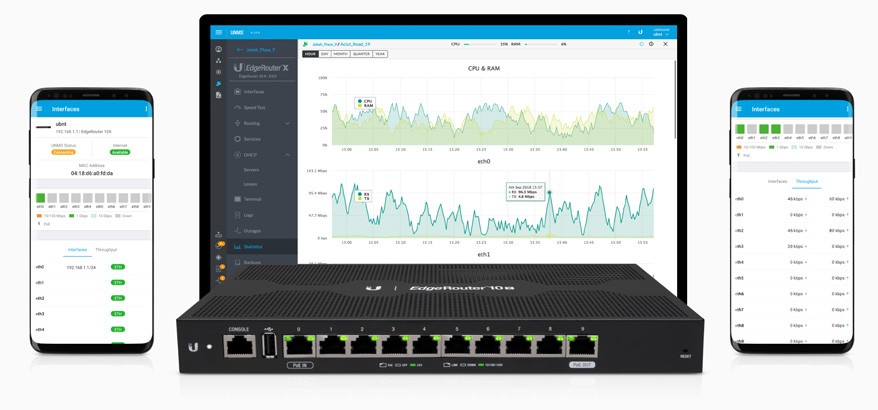

EdgeRouter 10X tiek atbalstīts un pārvaldīts ar UNMS™ lietojumprogrammu ar intuitīvu lietotāja saskarni. Viena pārvaldības sistēma pārrauga reģistrētās EdgeMAX® ierīces vairākās vietās.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Interfeisi
RJ45 porti
(10) 1 Gbps
PoE portu skaits
1 gab
PoE standarti
Pasīvā PoE
USB porti
(1) USB-A 2.0
Komunikācijas interfeiss
RJ45
Pārvaldīšana
Ethernet
Sistēmas specifikācija
Chipset
Dual-Core 880 MHz, MIPS1004Kc
RAM atmiņas apjoms
512 MB
Iebūvētās atmiņas apjoms
512 MB
Elektroapgāde
Enerģijas veids
AC/DC adapteris, 24V pasīvā PoE
Enerģijas padeve
Ārējais AC/DC adapteris
Atbalstītais ieejas spriegums
9 - 30 V DC
Maksimālais enerģijas patēriņš
24 W
Barošanas savienotājs
Līdzstrāvas spraudnis 2,1 x 5,5 mm
PSU / POE adapter
24 V DC 1 A
Fiziskie parametri
Krāsa
Melns
Izmēri
268.1 x 136.5 x 31.1 mm
Svars
0.600 kg
Darbības temperatūra
-10 °C līdz 45 °C
Montāžas veids
Galda virsma
Formas faktors
Darbvirsmas
Iepakojumā iekļauts
Ārējais barošanas bloks
Iekļauts
