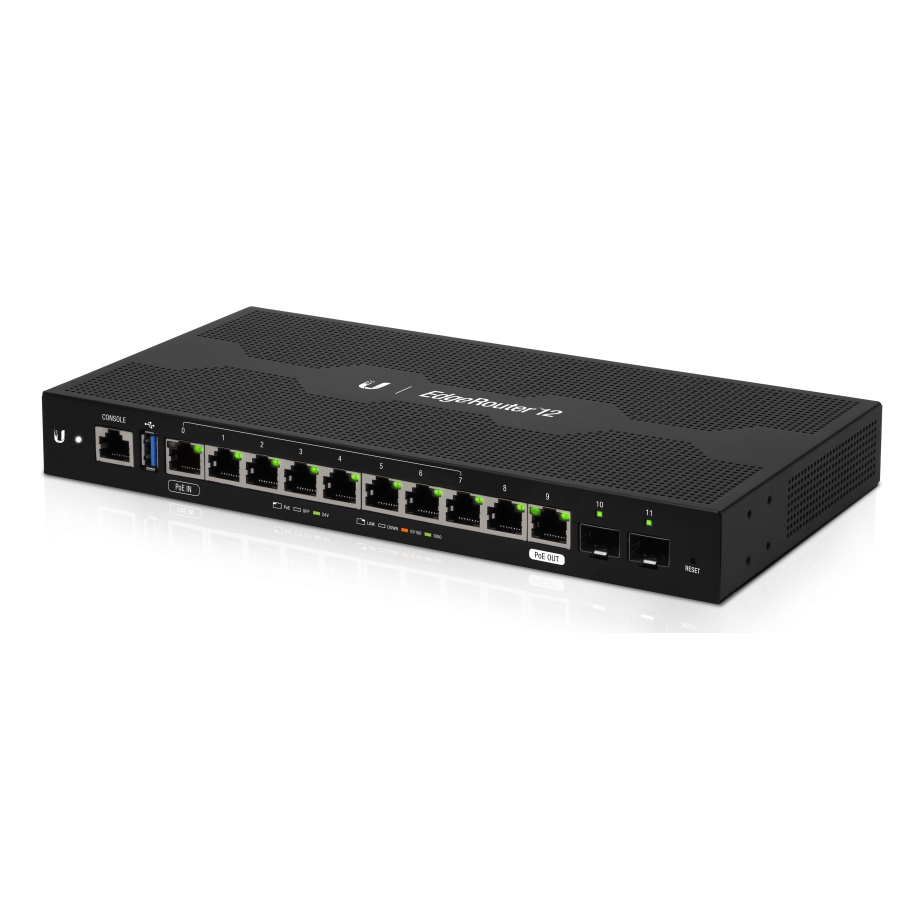

EdgeRouter 12
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Ubiquiti UISP Router Pro
UISP-R-Pro
Pieejamas alternatīvas
Preces apraksts

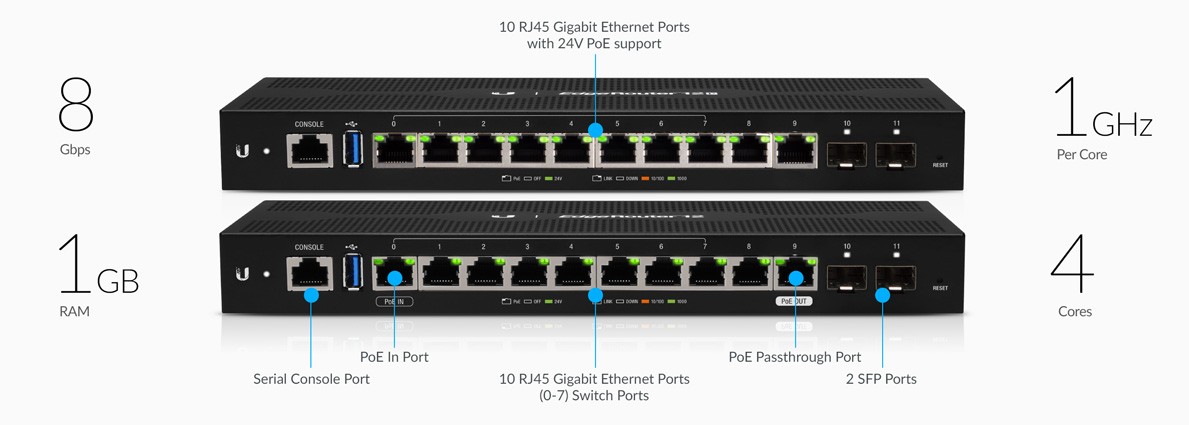

Optimāla cenas un veiktspējas attiecība
EdgeRouter™ 12/12P piedāvā optimālu cenas un veiktspējas attiecību, apstrādājot līdz 3,4 miljoniem pakešu sekundē ar līnijas ātrumu līdz 8 Gbps. Desmit Gigabit Ethernet porti nodrošina vadu savienojamību, bet divi SFP porti - optisko šķiedru savienojamību. EdgeRouter 12/12P atbalsta 2. slāņa komutāciju. EdgeRouter 12P atbalsta 24 V PoE barošanu caur desmit RJ45 portiem.

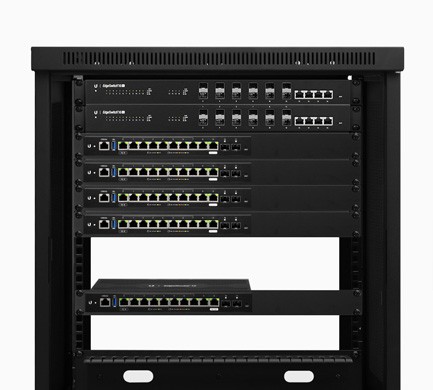

Universāls dizains
EdgeRouter 12/12P var uzstādīt statnē, izmantojot EdgeRouter Rack Mount Kit, modelis ER-RMKIT (iegādājams atsevišķi).

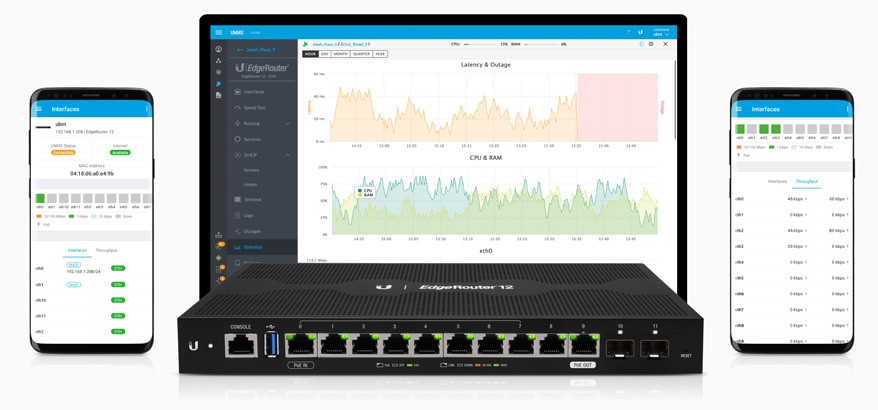

Centralizēta pārvaldība
EdgeRouter 12/12P tiek pārvaldīts ar UNMS™ lietojumprogrammu ar intuitīvu lietotāja saskarni. Viena pārvaldības sistēma pārrauga reģistrētās EdgeMAX® ierīces vairākās vietās.
Salīdzināt ar līdzīgiem produktiem
| Ethernet porti | ||||||
| 10 x 1 Gbps | 3 x 1 Gbps | 6 x 1 Gbps | 1 x 1 Gbps | 5 x 1 Gbps | 5 x 1 Gbps | |
| PoE standarti | ||||||
| 1 x Passive PoE | 5 x Passive PoE | 1 x Passive PoE | 5 x Passive PoE | |||
| SFP porti | ||||||
| 2 x 1G SFP | 1 x 1G SFP | 1 x 1G SFP | 8 x 10G SFP+ | 1 x 1G SFP | ||
| USB Ports | ||||||
| 1 x USB-A 2.0 | 1 x USB-A 3.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | |||
| Chipset | ||||||
| 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | MIPS64 16 Core 1.8 GHz | Dual-Core 880 MHz, MIPS1004Kc | Dual-Core 880 MHz, MIPS1004Kc | |
| RAM atmiņas apjoms | ||||||
| 1 GB | 1 GB | 1 GB | 16 GB | 256 MB | 256 MB | |
| Iebūvētās atmiņas apjoms | ||||||
| 4 GB | 4 GB | 4 GB | 8 GB | 256 MB | 256 MB | |
| Maksimālais enerģijas patēriņš | ||||||
| 24 W | 13 W | 90 W | 100 W | 5 W | 55 W | |
| Montāžas veids | ||||||
| Tabletop | Tabletop | RackMount, Wall Mount, Tabletop | RackMount | Tabletop | Tabletop | |
| Ethernet porti | 10 x 1 Gbps | 3 x 1 Gbps | 6 x 1 Gbps | 1 x 1 Gbps | 5 x 1 Gbps | 5 x 1 Gbps |
| PoE standarti | 1 x Passive PoE | 5 x Passive PoE | 1 x Passive PoE | 5 x Passive PoE | ||
| SFP porti | 2 x 1G SFP | 1 x 1G SFP | 1 x 1G SFP | 8 x 10G SFP+ | 1 x 1G SFP | |
| USB Ports | 1 x USB-A 2.0 | 1 x USB-A 3.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | ||
| Chipset | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | MIPS64 16 Core 1.8 GHz | Dual-Core 880 MHz, MIPS1004Kc | Dual-Core 880 MHz, MIPS1004Kc |
| RAM atmiņas apjoms | 1 GB | 1 GB | 1 GB | 16 GB | 256 MB | 256 MB |
| Iebūvētās atmiņas apjoms | 4 GB | 4 GB | 4 GB | 8 GB | 256 MB | 256 MB |
| Maksimālais enerģijas patēriņš | 24 W | 13 W | 90 W | 100 W | 5 W | 55 W |
| Montāžas veids | Tabletop | Tabletop | RackMount, Wall Mount, Tabletop | RackMount | Tabletop | Tabletop |
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Interfeisi
RJ45 porti
(10) 1 Gbps
PoE portu skaits
1 gab
PoE standarti
Pasīvā PoE
SFP porti
(2) 1G SFP
USB porti
(1) USB-A 2.0
Komunikācijas interfeiss
RJ45
Pārvaldīšana
Ethernet
Sistēmas specifikācija
Chipset
4-Core 1 GHz, MIPS64
RAM atmiņas apjoms
1 GB
Iebūvētās atmiņas apjoms
4 GB
Elektroapgāde
Enerģijas veids
AC/DC adapteris, 24V pasīvā PoE
Enerģijas padeve
Ārējais AC/DC adapteris
Atbalstītais ieejas spriegums
9 - 30 V DC
Maksimālais enerģijas patēriņš
24 W
Barošanas savienotājs
Līdzstrāvas spraudnis 2,1 x 5,5 mm
PSU / POE adapter
24 V DC 1 A
Fiziskie parametri
Krāsa
Melns
Izmēri
268.1 x 136.5 x 31.1 mm
Svars
0.700 kg
Darbības temperatūra
-10 °C līdz 50 °C
Montāžas veids
Galda virsma
Formas faktors
Darbvirsmas
Iepakojumā iekļauts
Ārējais barošanas bloks
Iekļauts
