Iskra 5G antena P-60 MIMO, 10m kabelis
ir noliktavā
?
107.74 €
107.74 €
Pieejamas preces variācijas
Preces apraksts

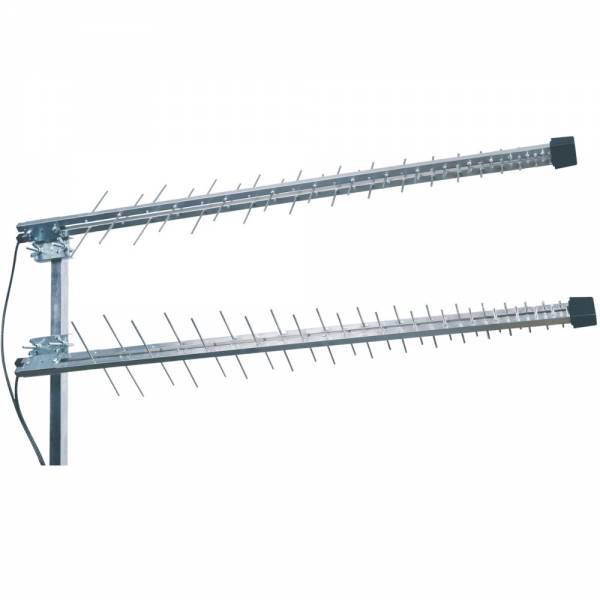

P-60 5G 7003800 ir MIMO antenu komplekts tiek izmantots mobilo operatoru signālu uztveršanai, izmantojot MIMO tehnoloģiju (divas antenas, kas uzstādītas X polaritātē). Antenu komplekts aptver ļoti plašu frekvenču diapazonu no LTE 700 līdz LTE 5G 3,8 GHz. Komplekts ir vislabāk piemērots savienošanai ar Wi-Fi maršrutētāju vai MIMO modemu. Vienā komplektā ir divas antenas (augšējai un apakšējai montāžas pozīcijai) ar vienādiem tehniskajiem datiem.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Yagi
Bezvadu antenas frekvences diapazons un pastiprinājums
2.400 - 2.495 (GHz) 10 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.862 (GHz) 10 (dBi), 1.710 - 1.880 (GHz) 10 (dBi), 2.50 - 2.70 (GHz) 10 (dBi), 3.30 - 3.80 (GHz) 8 (dBi)
Stara platums
44 ° Vertikāli, 52 ° Horizontāli
Kabeļa garums
10 m
VSWR
< 1.6
Pretestība
50 Ω
Priekšpuses/mugurpuses attiecība
> 23 dB
Maksimālā ieejas jauda
50 W
Konnektori
RF savienotāji

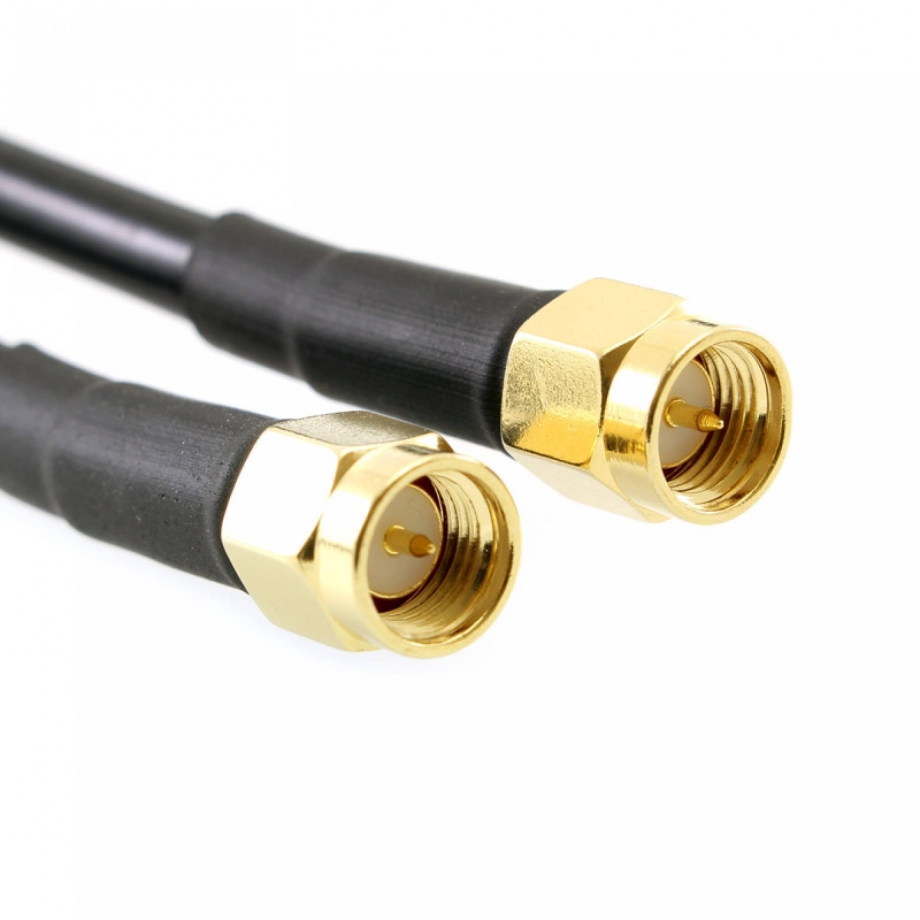

(2) SMA Male
Fiziskie parametri
Izmēri
L=1100 mm
Vide
Āra
Montāžas veids
Staba stiprinājums
