Zīmols
Ražotāja daļas nr
PR1KCO28
Garantija
?
24 mēneši
EAN numurs
0708747439779
Teltonika LTE/GPS/GLONASS/Wi-Fi kombinēta jumts antena 3m
Certified Teltonika Engineers
Official Teltonika Distributor
ir noliktavā
?
40.49 €
40.49 €
Noliktavā nepietiek preces. Lūdzu, reģistrējieties, lai noformētu iepriekšpasūtījumu.
Certified Teltonika Engineers
Official Teltonika Distributor
Preces apraksts

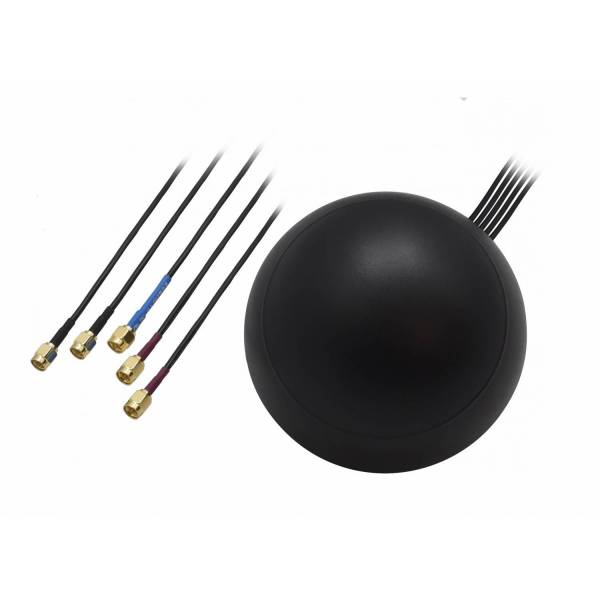

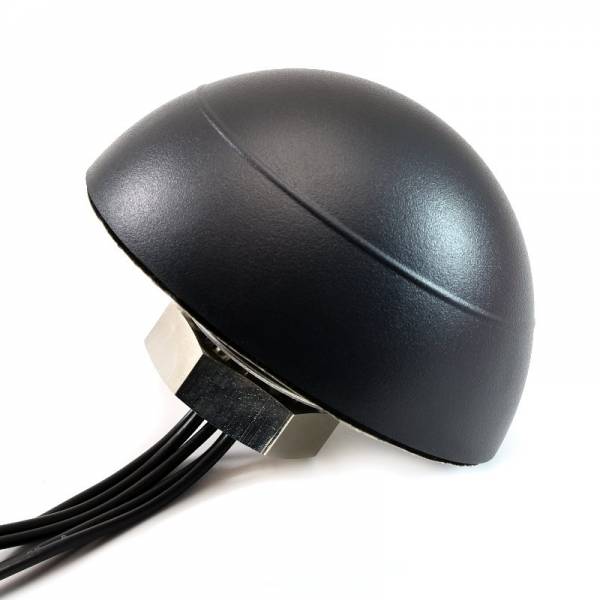

PR1KCO28 ir kombinēta GPS + GLONASS + LTE MIMO + Wi-Fi MIMO antena. GNSS antenas darbības frekvenču diapazons ir 1575-1610 MHz. LTE MIMO antena darbojas frekvenču diapazonā 698-960 / 1710-2690 MHz ar pastiprinājumu 3 dBi, bet Wi-Fi MIMO antena darbojas diapazonā 2400-2483 / 4900-5825 MHz ar pastiprinājumu 2 dBi. Antena ir aizsargāta pret putekļiem un ūdeni atbilstoši IP65 standartam. PR1KCO28 ir aprīkota ar pieciem RG174 augstfrekvences koaksiālajiem kabeļiem. Katrs kabelis ir 3 m garš. Stiprinājuma metode: skrūvējama.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Jumta
Bezvadu antenas frekvences diapazons un pastiprinājums
2.4 - 2.483 (GHz) 2 (dBi), 4.9 - 5.825 (GHz) 2 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.96 (GHz) 3 (dBi), 1.71 - 2.69 (GHz) 3 (dBi)
Mobilās antenas pastiprinājums
3 dBi, 3 dBi
Polarizācija
Lineāra
GPS antenas frekvences diapazons un pastiprinājums
1575.42 MHz 2 dBic (Zenith)
Kabeļa garums
3 m
VSWR
< 3
Pretestība
50 Ω
Konnektori
RF savienotāji
(3) SMA Male, (3) RP-SMA Male
Fiziskie parametri
Krāsa
Melns
Materiāls
ABS plastmasa
Aizsardzība pret mitrumu un putekļiem
IP67

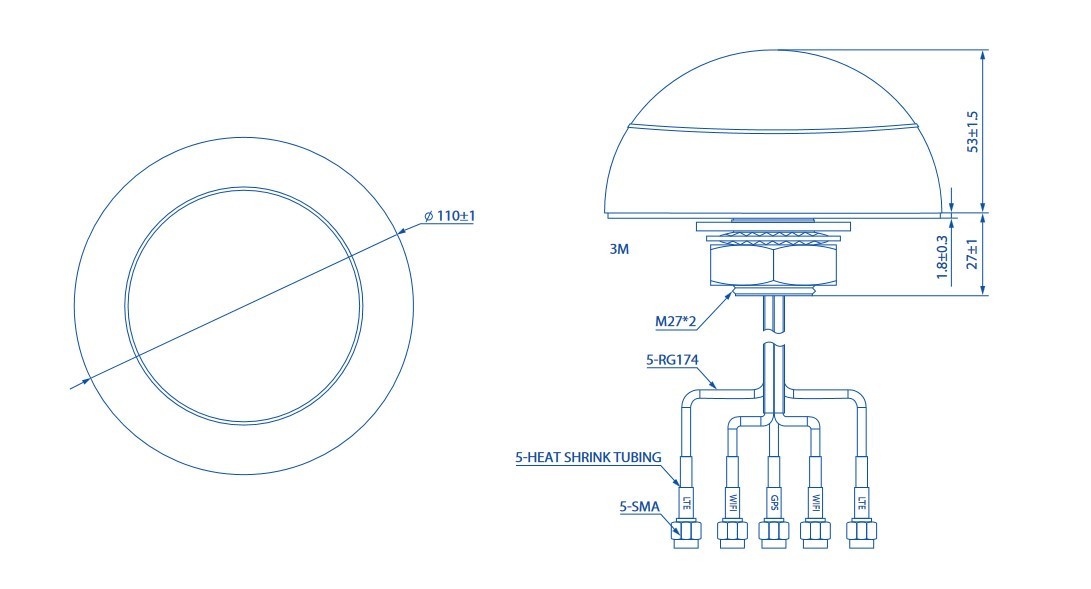

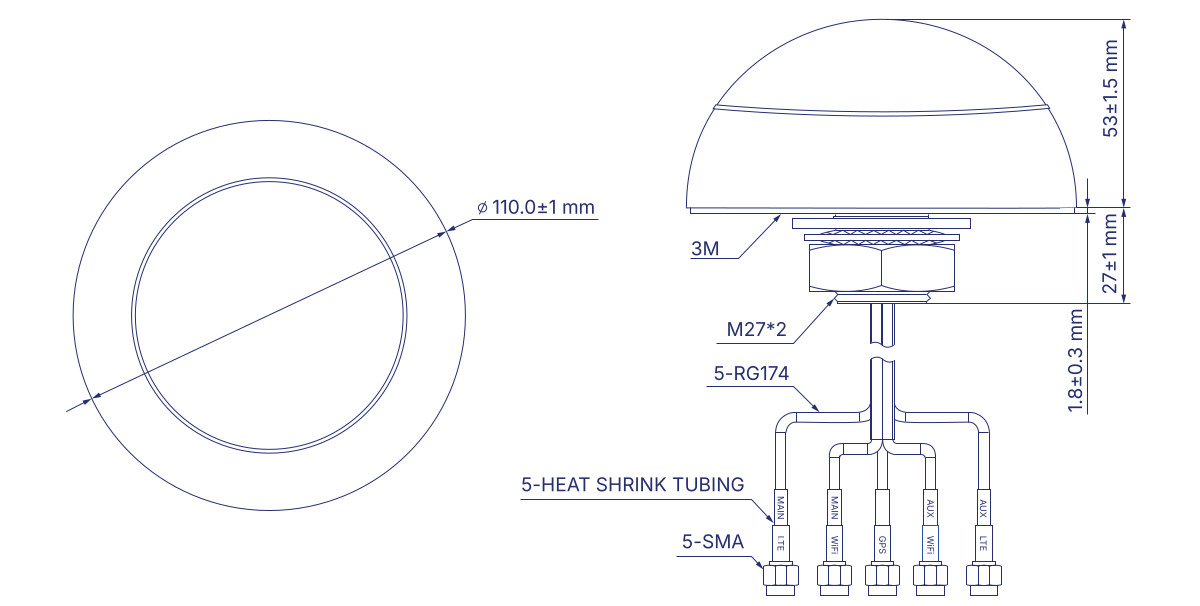

Izmēri
Ø110 x 55 mm
Svars
0.55 kg
Vide
Iekštelpu, Āra
Montāžas veids
Pieskrūvēt, Līme
