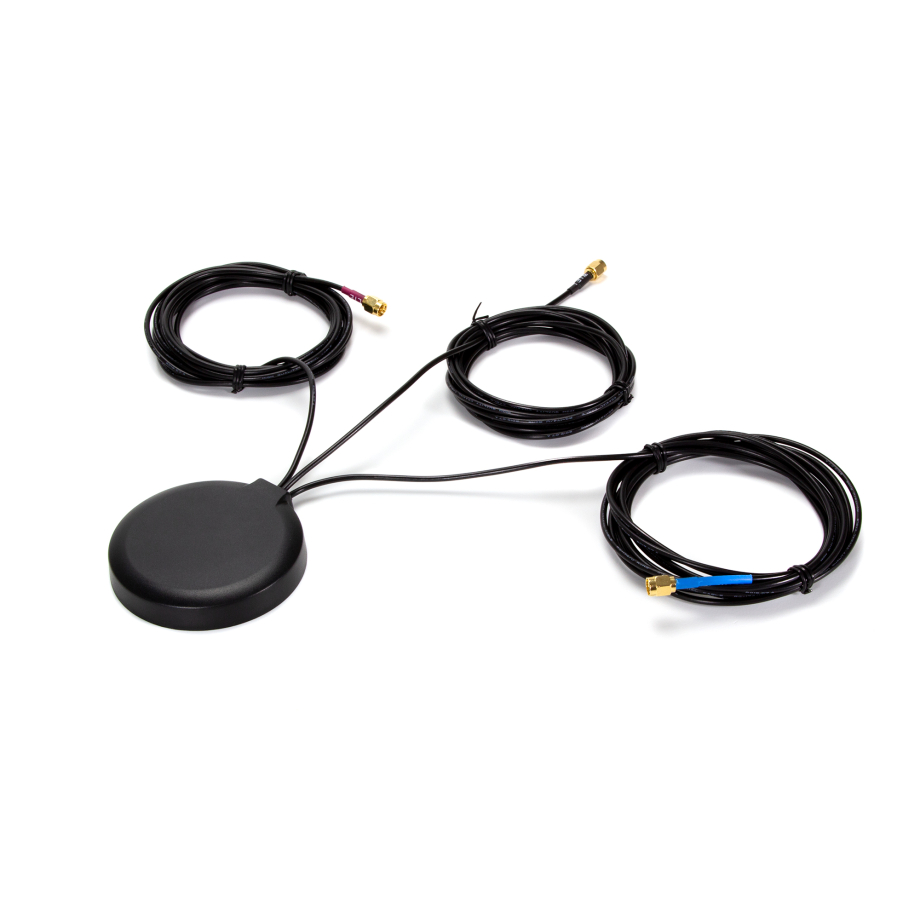

LTE/GPS/GLONASS/Wi-Fi Combo āra antena JCE305
ir noliktavā
?
18.86 €
18.86 €
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
4G (LTE)
Antena
Antenas dizains
Jumta
Bezvadu antenas frekvences diapazons un pastiprinājums
2.400 - 2.483 (GHz) 3 (dBi), 4.900 - 5.825 (GHz) 3 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.960 (GHz) 3 (dBi), 1.710 - 2.700 (GHz) 3 (dBi)
Mobilās antenas pastiprinājums
3 dBi
GPS antenas frekvences diapazons un pastiprinājums
1575.42 MHz 2 dBic (Zenith)
Kabeļa garums
3 m
Pretestība
50 Ω
Konnektori
RF savienotāji

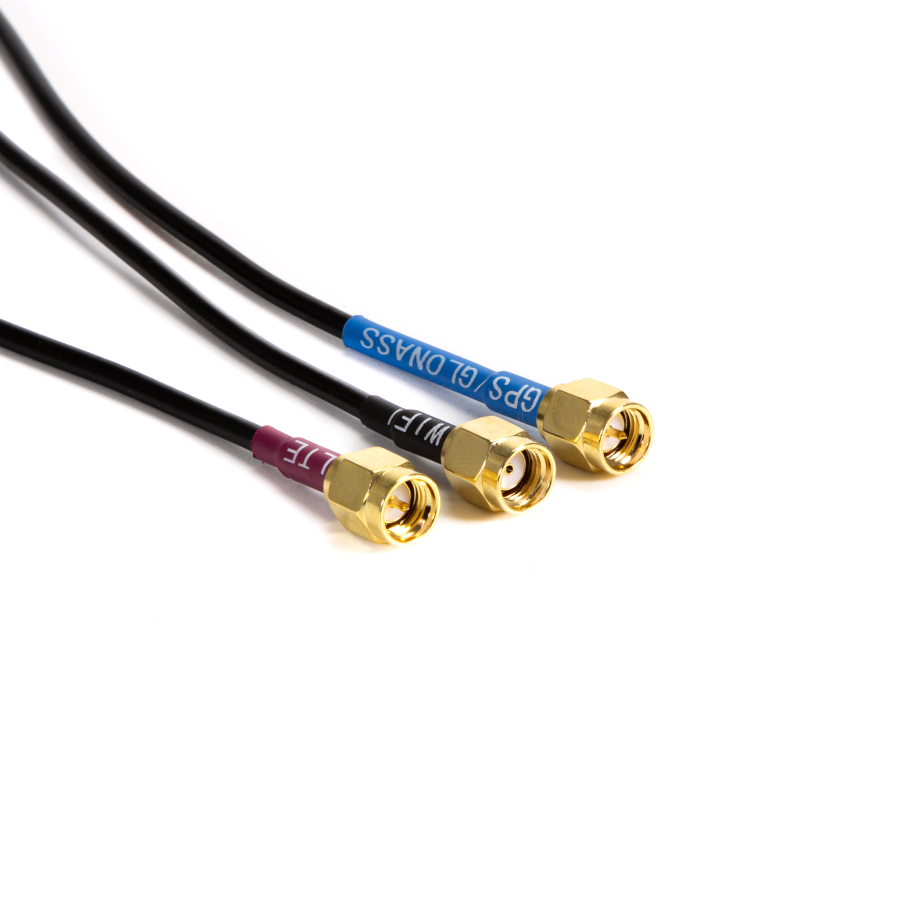

(2) SMA Male, (1) RP-SMA Male
Fiziskie parametri
Krāsa
Melns
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri

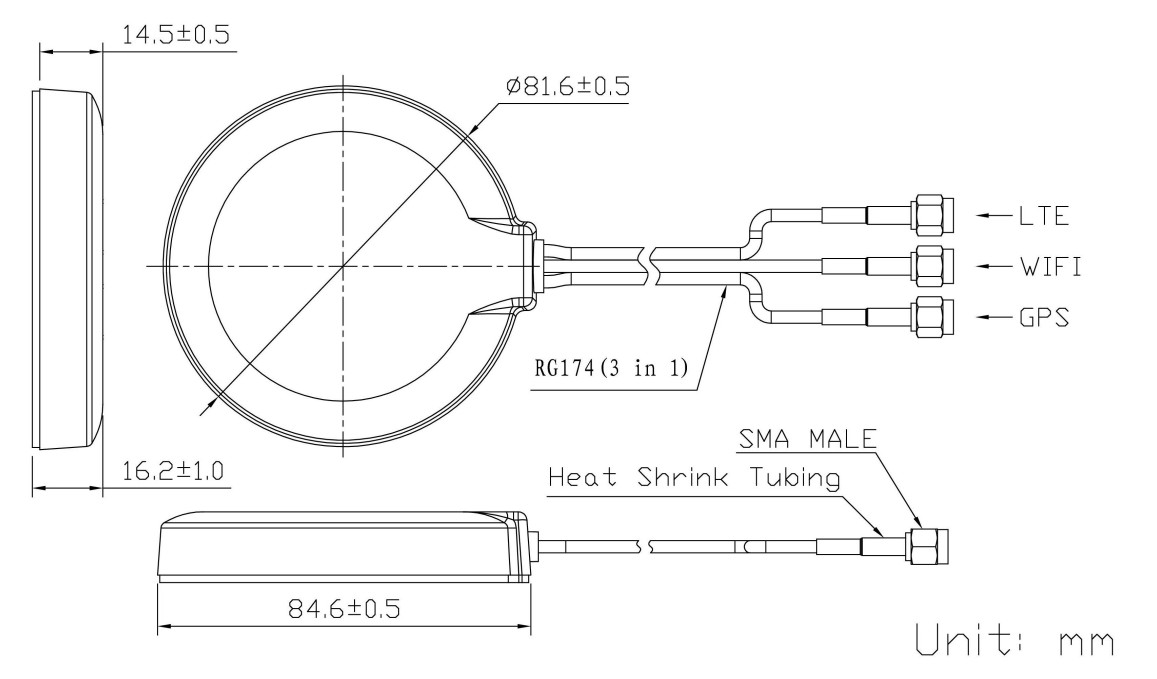

Ø85 x 16.2 mm
Darbības temperatūra
-40 °C līdz 85 °C
Vide
Āra
Montāžas veids
Magnētisks
