Zīmols
Ražotāja daļas nr
APLM2-H
Garantija
?
24 mēneši
EAN numurs
5907772035337
QuPanel LTE High Power MIMO 2x2, 5m kabelis
ir noliktavā
?
101.23 €
101.23 €
Noliktavā nepietiek preces. Lūdzu, reģistrējieties, lai noformētu iepriekšpasūtījumu.
Preces apraksts

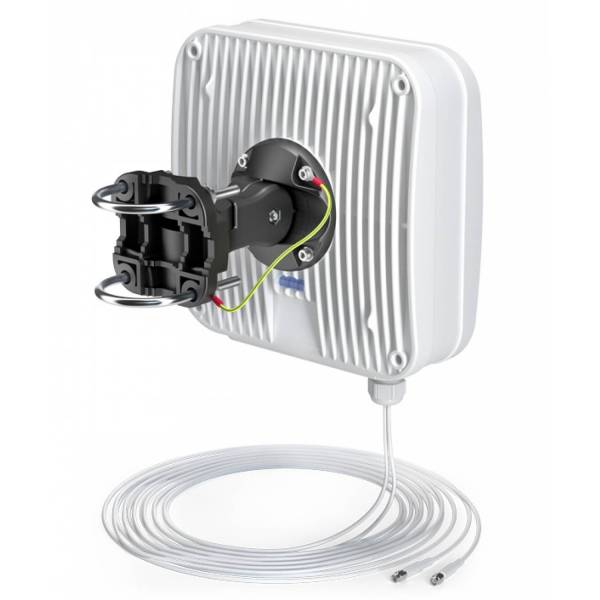

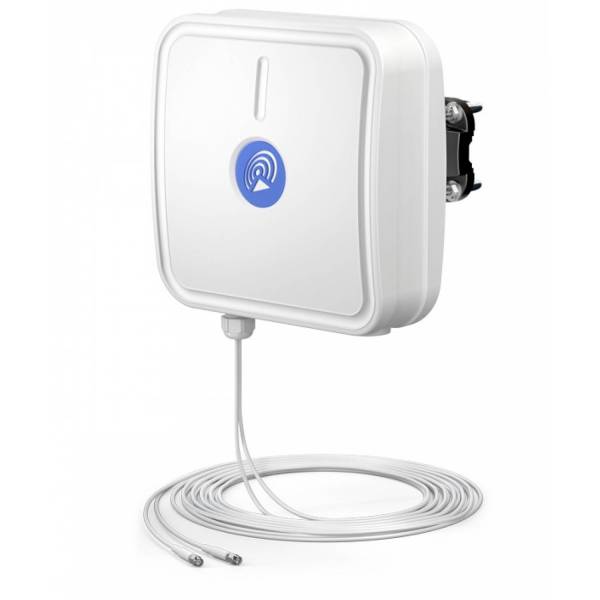

Virziena antena QuPanel LTE HP 2x2 MIMO ar pastiprinājuma koeficientu 7dBi ir galvenokārt paredzēta 4G LTE diapazonu, bet ir saderīga arī ar 3G un 2G. Antena uzlabo signālu lauku/piepilsētu rajonos un vietās ar vāju mobilo signālu. Šī antena ir paredzēta uzstādīšanai uz ēkām (uz staba vai sienas). Pateicoties ļoti plašam darba frekvenču diapazonam antena ir universāla ierīce LTE joslām, piemēram, LTE700/ 800/ 1800/ 1900/ 2100/ 2300/ 2600. Tā ir saderīga ar Teltonika RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 un citiem 2x2 MIMO LTE / 3G / 2G modemiem un maršrutētājiem.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Paneļa
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 7 (dBi), 1.7 - 2.2 (GHz) 7 (dBi), 2.2 - 2.7 (GHz) 7 (dBi)
Mobilās antenas pastiprinājums
7 dBi
Stara platums
70 ° Vertikāli, 70 ° Horizontāli
Kabeļa garums
5 m
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(2) SMA Male
Fiziskie parametri
Krāsa
Balts
Materiāls
ABS plastmasa, Stikla šķiedra
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
392 x 392 x 96 mm
Svars
1.88 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
