Zīmols
Ražotāja daļas nr
A360M
Garantija
?
24 mēneši
EAN numurs
5907772035641
QuMax antena RUT360 iekārtai
ir noliktavā
?
128.49 €
128.49 €
Preces apraksts

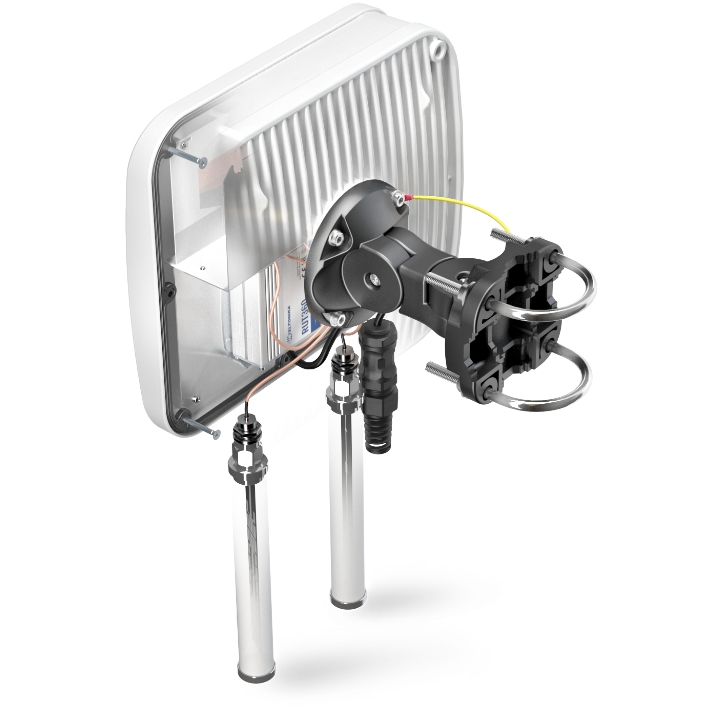

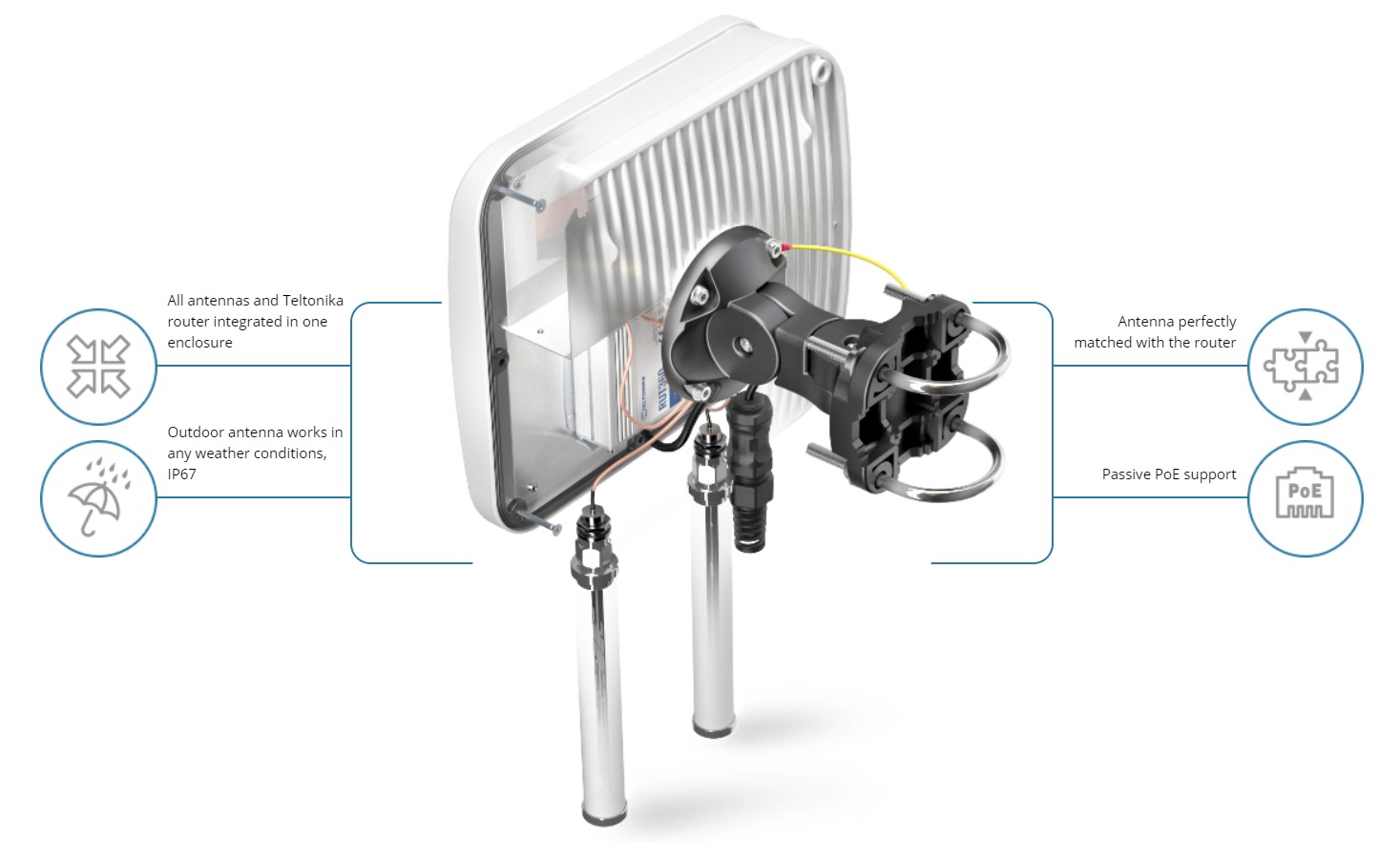

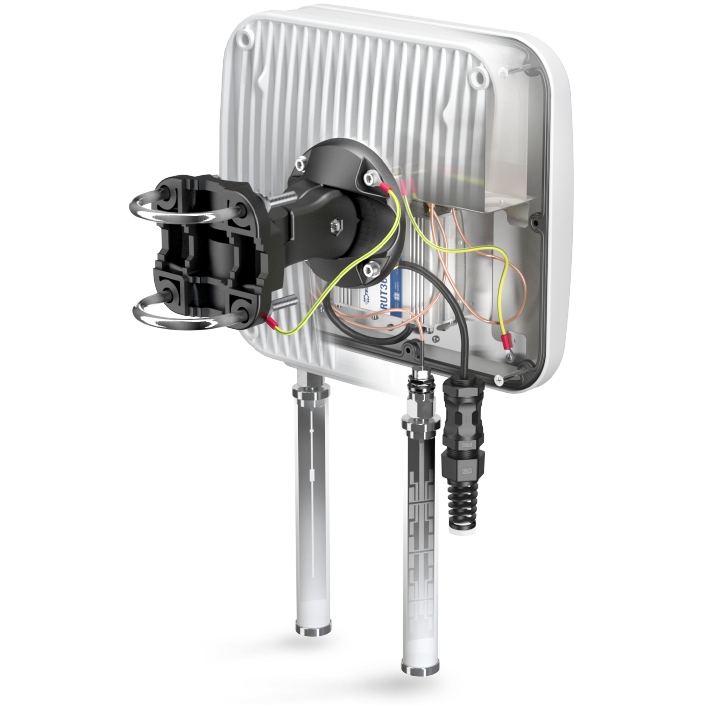

Integrēta ārtelpu daudzdiapazonu lieljaudas LTE virziena antena + āra Wi-Fi visvirzienu antena + vieta Teltonika RUT360 uzstādīšanai
QuMax ir jaudīgākā virziena LTE antena no visām QuWireless antenām. Tā ir paredzēta savienojumiem ar bāzes staciju lielos attālumos. Šī ierīce ir labākā izvēle stacionārām instalācijām industriālā vidē. Korpusa iekšpusē ir vieta Teltonika RUT360 maršrutētājam. Korpuss atbilst IP67 aizsardzības standartam. Ierīce ir aprīkota arī ar iebūvētām visvirziena Wi-Fi antenām izmantošanai ārpus telpām.
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Paneļa
Bezvadu antenas frekvences diapazons un pastiprinājums
2.40 - 2.50 (GHz) 6 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.2 - 2.7 (GHz) 6 (dBi)
Mobilās antenas pastiprinājums
4 dBi, 5 dBi, 6 dBi
Stara platums
90 ° Vertikāli, 90 ° Horizontāli
Polarizācija
Vertikālā
VSWR
< 2
Pretestība
50 Ω
Konnektori
RF savienotāji
(2) N Male, (2) N Female
Ethernet savienotājs
RJ45 savienojums
Fiziskie parametri
Materiāls
Alumīnijs, ABS plastmasa, Stikla šķiedra, Politetrafluoretilēns
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
272 x 276 x 96 mm
Svars
1.8 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
