Zīmols
Ražotāja daļas nr
A950M
Garantija
?
24 mēneši
EAN numurs
5907772035092
QuMax antena RUT901/950/951 iekārtām
ir noliktavā
?
128.49 €
128.49 €
Preces apraksts

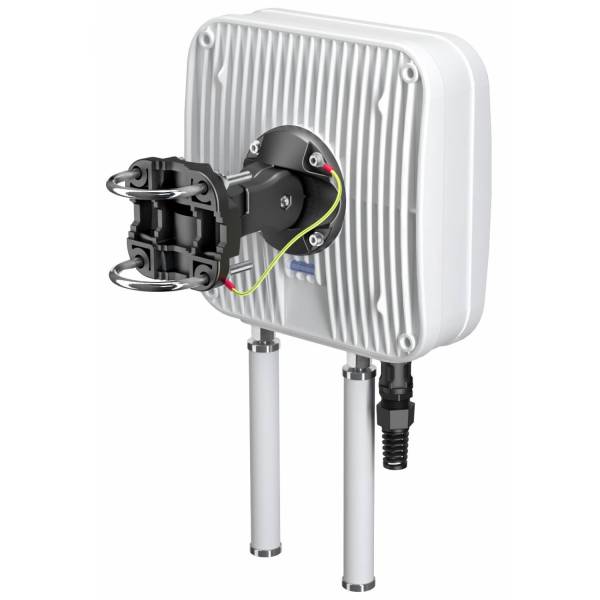

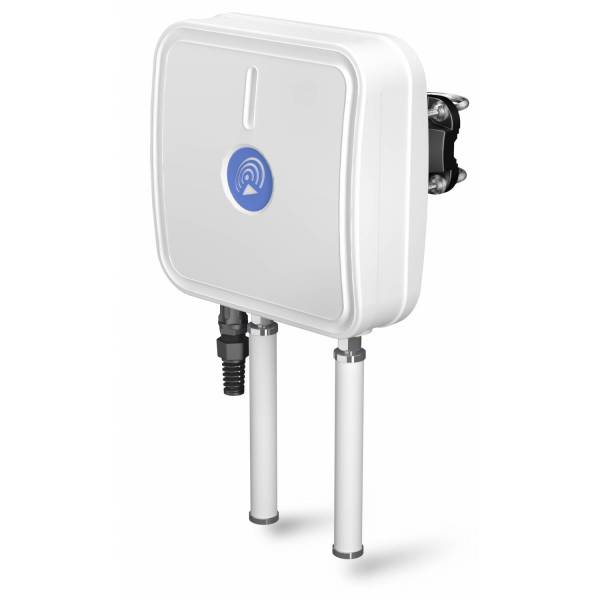

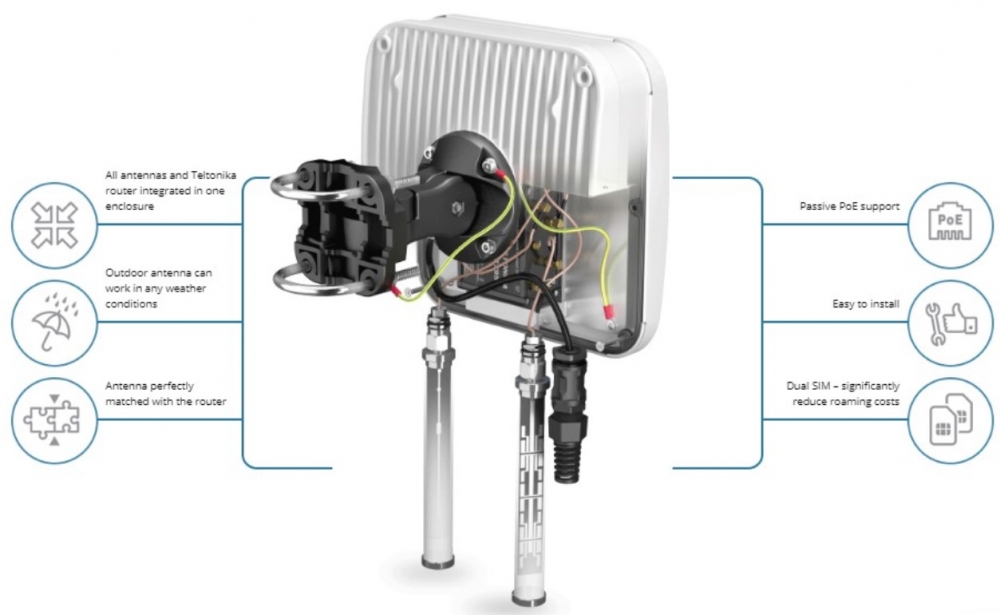

QuMAX piedāvā jaudīgāko virziena LTE antenu no visām QuWireless antenām. Tā paredzēta savienojumiem ar bāzes staciju lielā attālumā. QuMAX ir izstrādāts, lai uzstādītu maršrutētāju Teltonika RUT950, RUT951 vai RUT901 vienā korpusā, kas atbilst IP67 standartam. Šī antena ir optimāla izvēle stacionārām instalācijām industriālā vidē. Tajā ir iebūvētas arī visvirziena Wi-Fi antenas izmantošanai ārpus telpām.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
4G (LTE)
Antena
Antenas dizains
Paneļa
Bezvadu antenas frekvences diapazons un pastiprinājums
2.40 - 2.50 (GHz) 6 (dBi), 4.70 - 6.00 (GHz) 7 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.2 - 2.7 (GHz) 6 (dBi)
Mobilās antenas pastiprinājums
4 dBi, 5 dBi, 6 dBi
Polarizācija
Vertikālā
VSWR
< 2
Pretestība
50 Ω
Fiziskie parametri
Krāsa
Balts
Materiāls
Alumīnijs, ABS plastmasa, Stikla šķiedra, Politetrafluoretilēns
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
272 x 276 x 96 mm
Svars
1.8 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
