Zīmols
Ražotāja daļas nr
RX11S
Garantija
?
24 mēneši
EAN numurs
5907772035214
QuRouter X11S
ir noliktavā
?
-15% 552.81 €
470.69 €
-15% 552.81 €
470.69 €
Preces apraksts

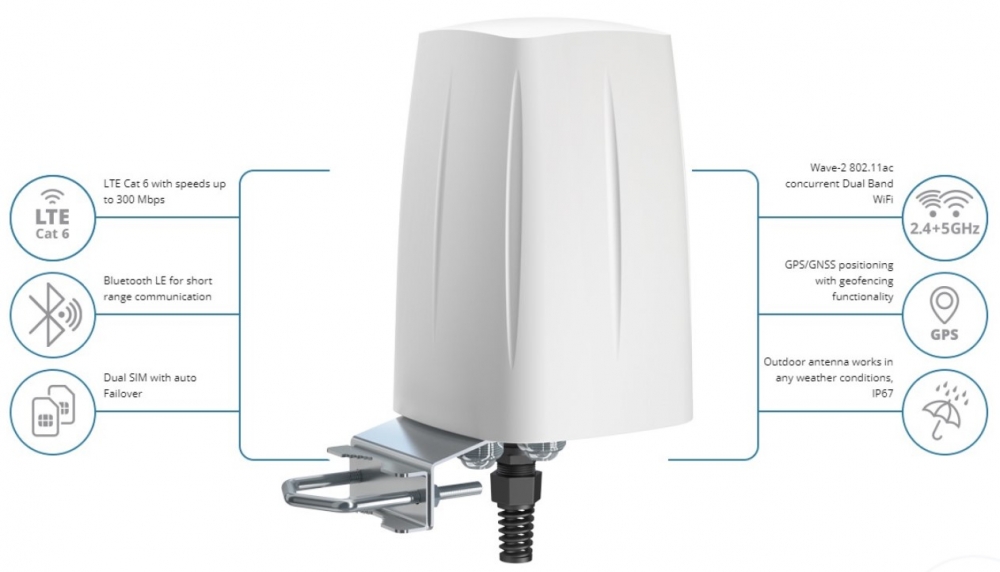

QuRouter X11S ir izturīgs LTE Cat 6 ārtelpu maršrutētājs ar iebūvētu divdiapazonu Wi-Fi piekļuves punktu, kas paredzēts uzstādīšanai gan mobilajā, gan stacionārajā vidē. Tas ir aprīkots ar diviem SIM karšu slotiem, kā arī Bluetooth LE un GPS/GNSS moduļiem. RUTX11 ir aprīkots ar daudzvirzienu antenām visām bezvadu saskarnēm. Šī ierīce ir ideāli piemērota sarežģītiem rūpnieciskiem lietojumiem. 717 MHz ARM Cortex A7 četrkodolu procesors un 256 MB DDR3 RAM nodrošina netraucētu VPN datu vākšanu.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
3G (UMTS), 4G (LTE)
LTE kategorija
Cat6 - 300Mbps/50Mbps
FDD LTE frekvenču joslas
1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
TDD LTE frekvenču joslas
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM kartes slots
Dual SIM
Bezvadu tīkls
Standarti
802.11b/g/n, 802.11ac Wave2
Caurlaidspēja 2.4GHz joslā
300 Mbps
Caurlaidspēja 5GHz joslā
867 Mbps
Antena
Antenas dizains
Kupola
Bezvadu antenas frekvences diapazons un pastiprinājums
2.40 - 2.50 (GHz) 6 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.96 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Stara platums
360 °, 35 ° Vertikāli
Polarizācija
Vertikālā
VSWR
< 2.0
Pretestība
50 Ω
Interfeisi
RJ45 porti
(4) 1 Gbps
USB porti
(1) USB-A 2.0
Pārvaldīšana
Ethernet
Bluetooth
4.0 LE
Sistēmas specifikācija
Chipset
Quad-core ARM Cortex A7, 717 MHz
RAM atmiņas apjoms
256 MB
Iebūvētās atmiņas apjoms
256 MB
Elektroapgāde
Enerģijas veids
24V pasīvā PoE
Enerģijas padeve
Ārējais AC/DC adapteris
Atbalstītais ieejas spriegums
9 - 50 V DC
Maksimālais enerģijas patēriņš
16 W
Barošanas savienotājs
4-pin, 3 mm
Fiziskie parametri
Krāsa
Balts
Materiāls
Cinkots tērauds, Alumīnijs, ABS plastmasa
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
160 x 160 x 240 mm
Svars
1.5 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
