Zīmols
Ražotāja daļas nr
PR1US540
Garantija
?
24 mēneši
EAN numurs
4779051840632

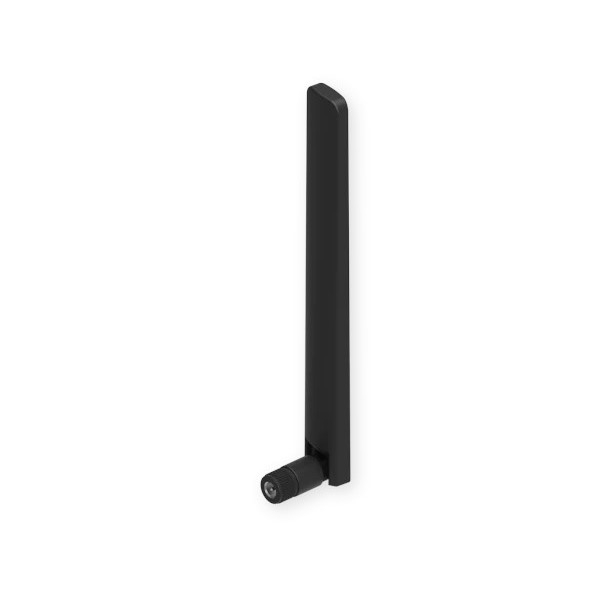

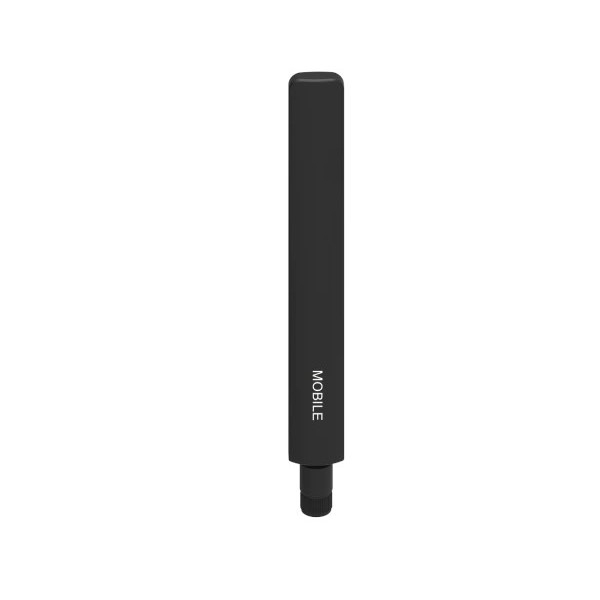

Teltonika 5G Mobile SMA Antenna
Certified Teltonika Engineers
Official Teltonika Distributor
ir noliktavā
?
4.30 €
4.30 €
Noliktavā nepietiek preces. Lūdzu, reģistrējieties, lai noformētu iepriekšpasūtījumu.
Certified Teltonika Engineers
Official Teltonika Distributor
Preces apraksts
Nevainojams 5G pārklājums
Teltonika 5G Mobile SMA antena ir augstas veiktspējas visvirziena antena, kas paredzēta lietošanai ar 5G mobilajām ierīcēm. Antenas pastiprinājuma koeficients ir 4.5 dBi, kas nodrošina spēcīgu signāla uztveršanu pat vietās ar vāju signāla līmeni. Tādējādi šī antena ir universāls risinājums izmantošanai dažādās lietojumprogrammās, piemēram, mobilajos platjoslas sakaros, IoT un M2M komunikācijās. Antenai ir lineāra polarizācija un VSWR 3.0, lai nodrošinātu minimālus signāla zudumus. PR1US540 ir izgatavota no augstas kvalitātes materiāliem, un tai ir IP33 aizsardzības klase, kas nodrošina izturību pret putekļiem un ūdeni.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.617 - 0.960 (GHz) 4.5 (dBi), 1.41 - 1.61 (GHz) 4.5 (dBi), 1.71 - 2.69 (GHz) 4.5 (dBi), 3.3 - 7.125 (GHz) 4.5 (dBi)
Mobilās antenas pastiprinājums
4.5 dBi, 4.5 dBi, 4.5 dBi, 4.5 dBi
Polarizācija
Lineāra
VSWR
< 3
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) SMA Male
Fiziskie parametri
Krāsa
Melns
Aizsardzība pret mitrumu un putekļiem
IP33
Svars
0.024 kg
Darbības temperatūra
-40 °C līdz 85 °C
Vide
Iekštelpu
Montāžas veids
Pieskrūvēt
Iepakojumā iekļauts
Vienības
1 gab
