Zīmols
Ražotāja daļas nr
PR1KFG30
Garantija
?
24 mēneši
EAN numurs
0708747440799
Teltonika GNSS antena 2dBi, pašlīmējoša, Fakra C Female
Certified Teltonika Engineers
Official Teltonika Distributor
ir noliktavā
?
8.88 €
8.88 €
Noliktavā nepietiek preces. Lūdzu, reģistrējieties, lai noformētu iepriekšpasūtījumu.
Certified Teltonika Engineers
Official Teltonika Distributor
Preces apraksts

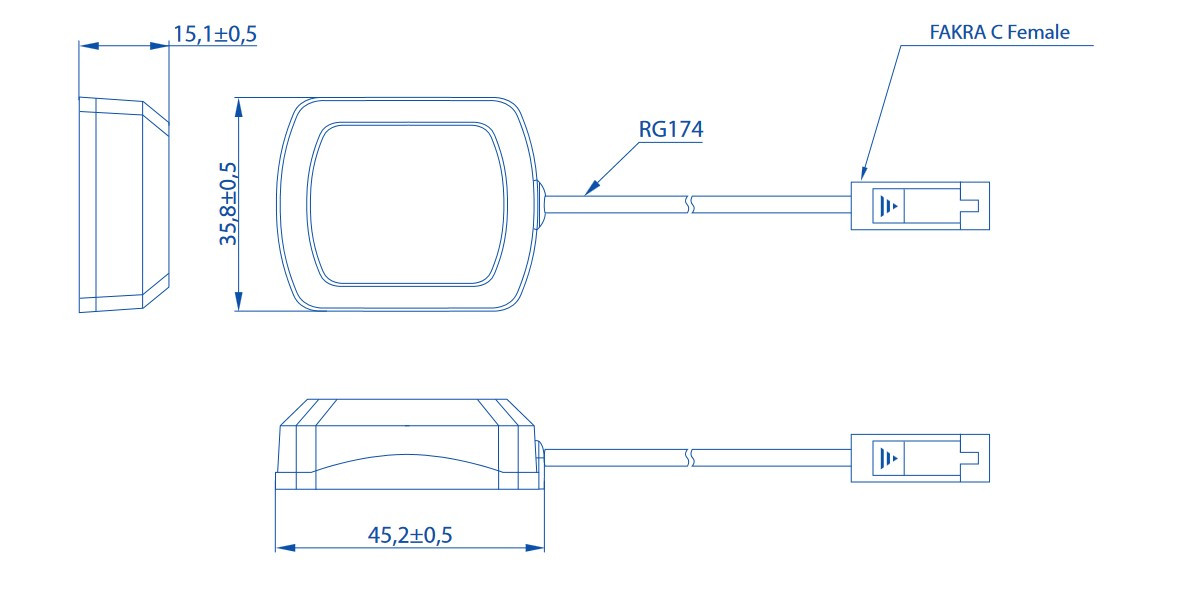

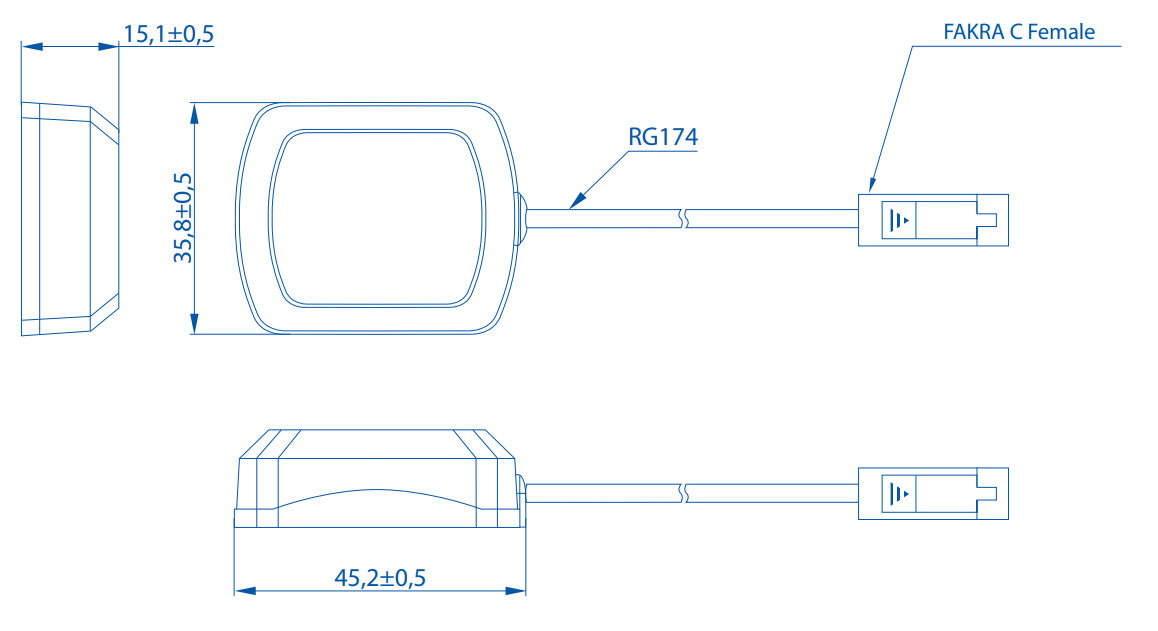

PR1KFG30 ir GNSS antena ar RHCP polarizāciju. Antena darbojas frekvenču diapazonā 1575,42-1602 MHz ar 2 dBi pastiprinājumu. PR1KFG30 ir aprīkota ar RG174 augstfrekvences koaksiālo kabeli ar taisnu Fakra C Female savienotāju. Kabeļa garums ir 3 m. Piestiprināšanas metode: pielīmēšana.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Antena
Antenas dizains
Jumta
Polarizācija
RHCP
GPS antenas frekvences diapazons un pastiprinājums
1575.42 MHz 2 dBic (Zenith)
Kabeļa garums
3 m
VSWR
< 1.5
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) Fakra C Female
Fiziskie parametri
Krāsa
Melns
Izmēri
45 x 36 x 15 mm
Darbības temperatūra
-40 °C līdz 85 °C
Montāžas veids
Līme
