Zīmols
Ražotāja daļas nr
PR1US440
Garantija
?
24 mēneši
EAN numurs
0708747440812

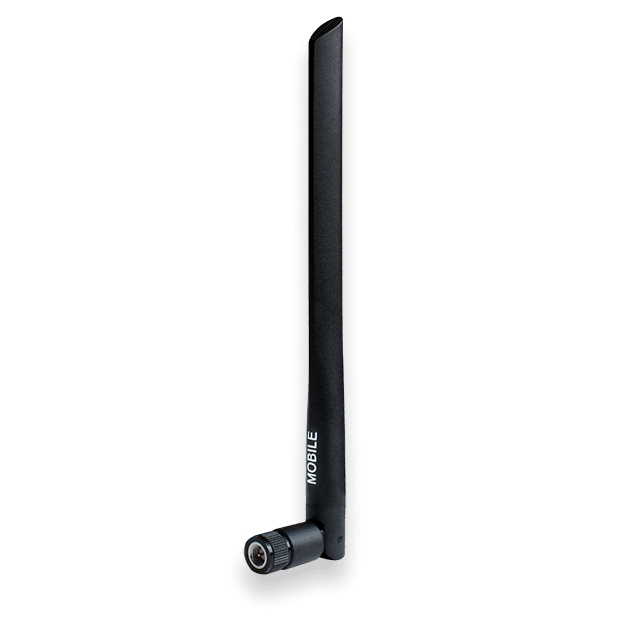

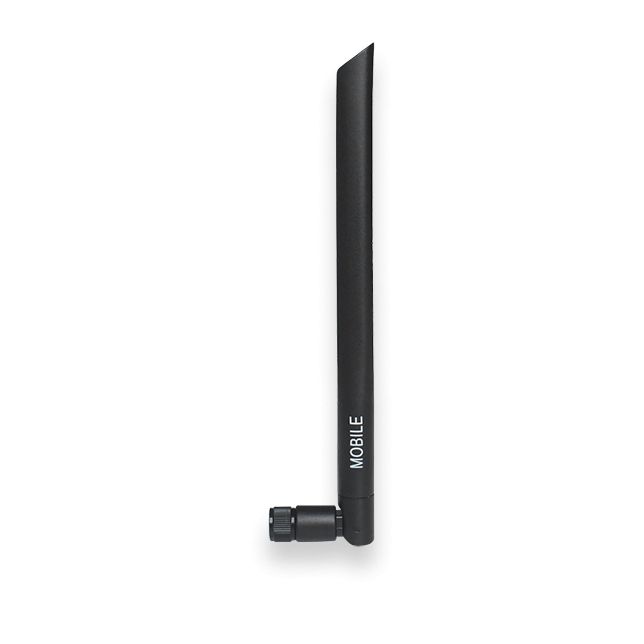

Teltonika mobilā antena 3dBi, SMA Male
Certified Teltonika Engineers
Official Teltonika Distributor
ir noliktavā
?
2.66 €
2.66 €
Certified Teltonika Engineers
Official Teltonika Distributor
Preces apraksts
PR1US440 ir lineāri polarizēta mobilā antena. Antena darbojas 690/ 900/ 1800/ 1900/ 2100/ 2700 MHz frekvenču diapazonā ar 3,5 dBi pastiprinājuma koeficientu. PR1US440 ir aizsargāta pret putekļiem un ūdeni atbilstoši IP33 standartam. Antena ir 197 mm gara un aprīkota ar SMA Male savienotāju.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.960 (GHz) 3 (dBi), 1.710 - 2.690 (GHz) 3 (dBi)
Mobilās antenas pastiprinājums
3 dBi
Polarizācija
Lineāra
VSWR
< 3.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) SMA Male
Fiziskie parametri

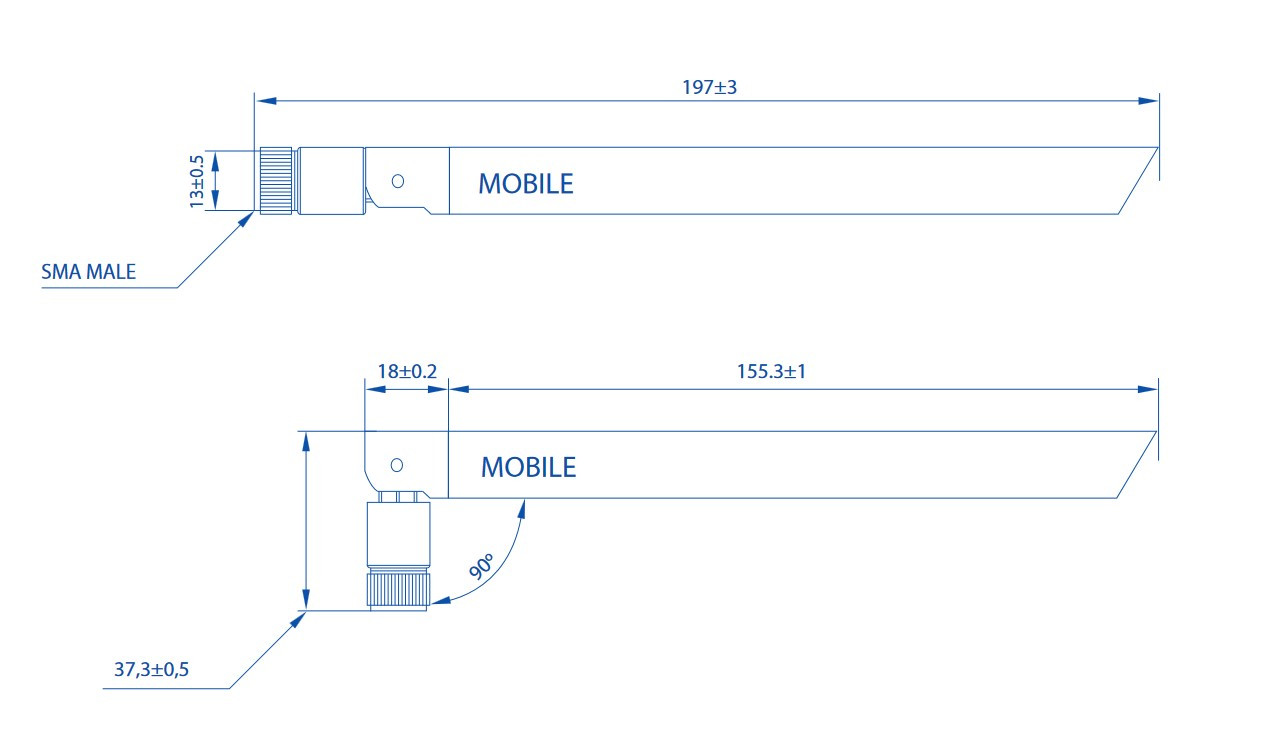

Izmēri
L = 198 mm
Darbības temperatūra
-40 °C līdz 85 °C
