Zīmols
Ražotāja daļas nr
TSW202
Garantija
?
24 mēneši
EAN numurs
4779051840281

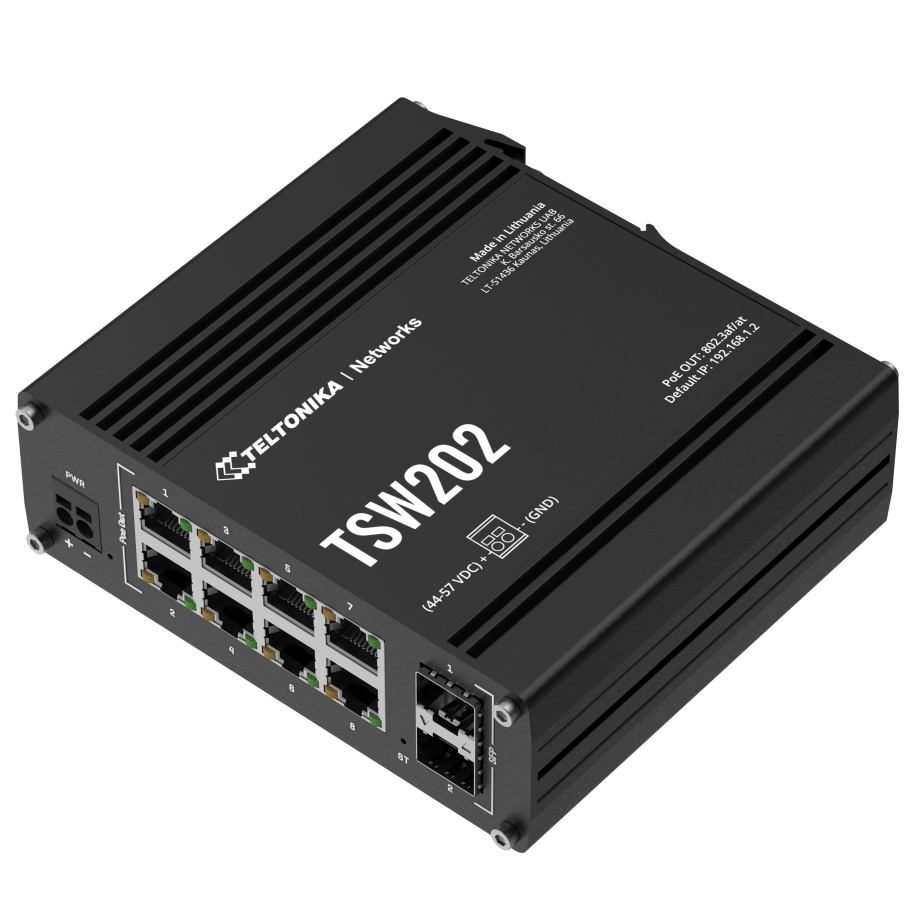

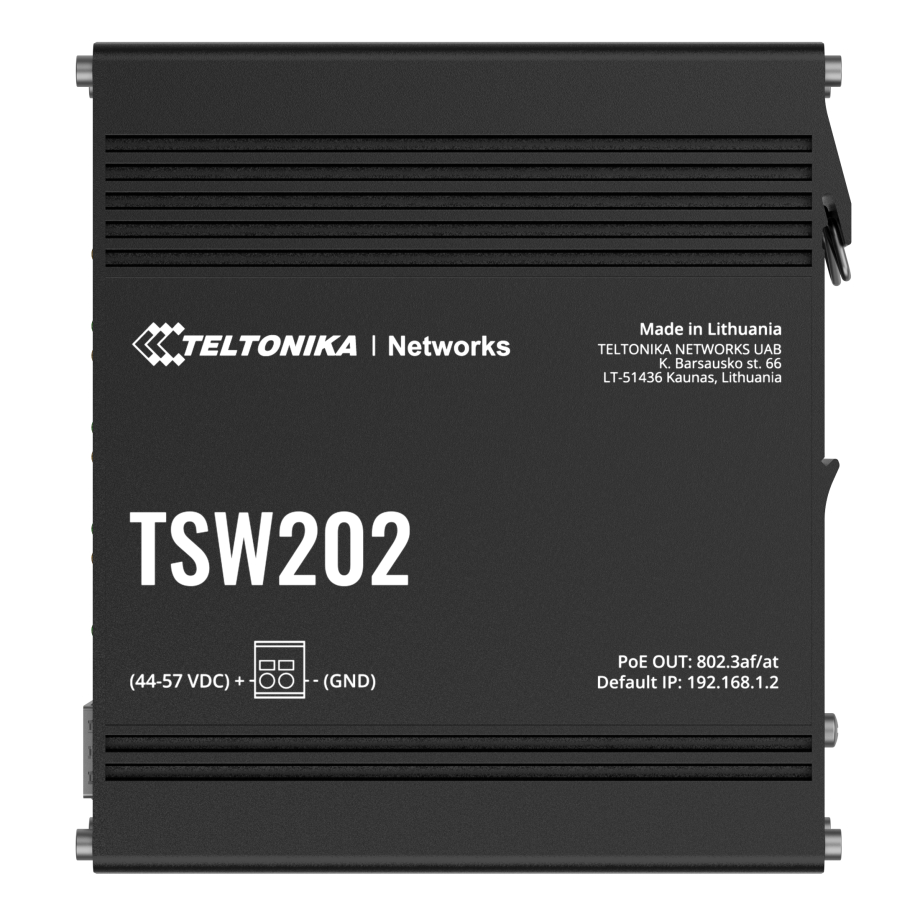

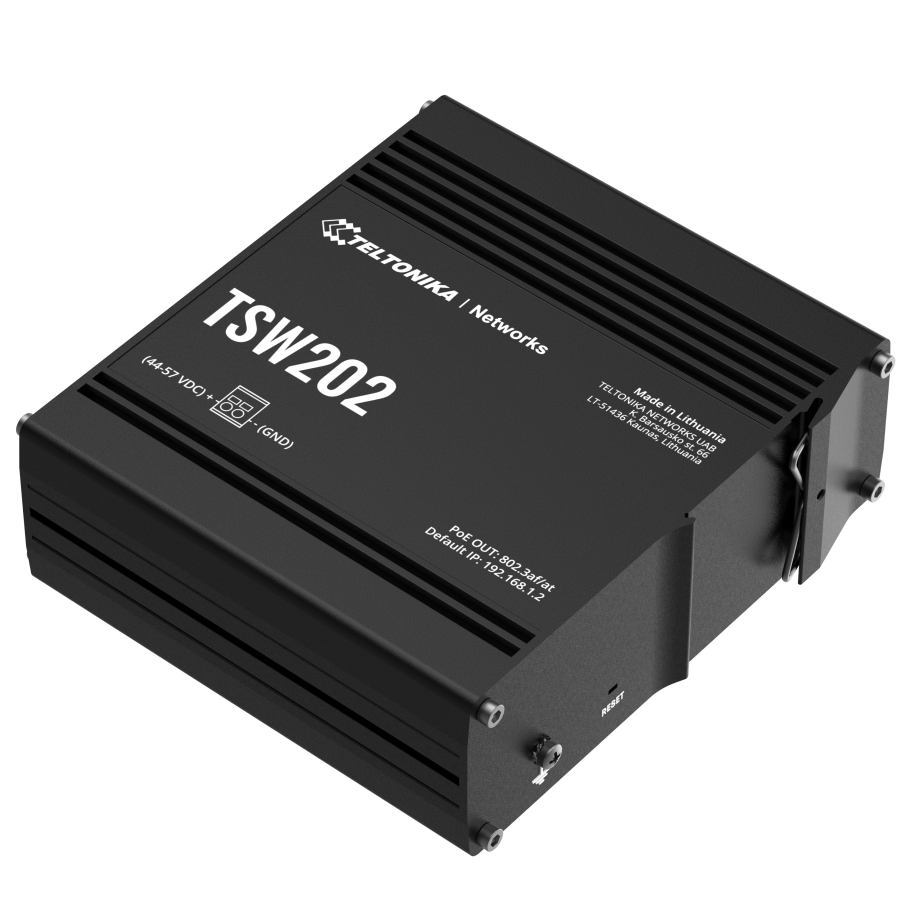

Teltonika TSW202 PoE+ komutators
Certified Teltonika Engineers
Official Teltonika Distributor
nav noliktavā
?
140.36 €
140.36 €
Piegāde noliktavā?
?
nav informācijas par pieejamību
%20-%20https://sketch.com%20--%3e%3ctitle%3eprofile_ico%3c/title%3e%3cdesc%3eCreated%20with%20Sketch.%3c/desc%3e%3cg%20id='elements'%20stroke='none'%20stroke-width='1'%20fill='none'%20fill-rule='evenodd'%3e%3cg%20id='svg_elements'%20transform='translate(-449.000000,%20-152.000000)'%20fill='%23131515'%3e%3cpath%20d='M459.293251,164.029275%20C464.901425,164.029275%20469.293251,166.657751%20469.293251,170.012711%20L469.293251,170.012711%20L469.293251,171.011748%20C469.293251,171.556855%20468.849156,172%20468.302879,172%20C467.756603,172%20467.312508,171.556855%20467.312508,171.011748%20L467.312508,171.011748%20L467.312508,170.012711%20C467.312508,167.841105%20463.640863,166.00676%20459.293251,166.00676%20C454.946621,166.00676%20451.273993,167.841105%20451.273993,170.012711%20L451.273993,170.012711%20L451.273993,171.011748%20C451.273993,171.556855%20450.829898,172%20450.283622,172%20C449.738328,172%20449.293251,171.556855%20449.293251,171.011748%20L449.293251,171.011748%20L449.293251,170.012711%20C449.293251,166.657751%20453.686059,164.029275%20459.293251,164.029275%20Z%20M458.603921,152.053677%20C459.091246,151.982108%20459.584467,151.982108%20460.068845,152.053677%20C461.136835,152.211523%20462.104609,152.697806%20462.869002,153.459584%20C463.631431,154.220381%20464.118757,155.187064%20464.276941,156.252769%20C464.680753,158.970463%20462.793349,161.510702%20460.068845,161.91365%20C459.822235,161.949926%20459.572677,161.968553%20459.327049,161.968553%20C458.255129,161.968553%20457.229387,161.629332%20456.360847,160.986184%20C455.28991,160.194013%20454.592327,159.032228%20454.395825,157.714559%20C453.992013,154.995885%20455.879417,152.456625%20458.603921,152.053677%20Z%20M459.336874,153.976259%20C459.189498,153.976259%20459.041138,153.987044%20458.894744,154.008613%20C458.099892,154.126262%20457.397397,154.546857%20456.916949,155.192947%20C456.437483,155.839036%20456.238034,156.631207%20456.355935,157.425338%20C456.473836,158.219469%20456.894351,158.920462%20457.541826,159.398901%20C458.187336,159.877341%20458.978258,160.074403%20459.779004,159.958715%20C461.422746,159.715574%20462.562459,158.183194%20462.317814,156.54297%20C462.122294,155.222359%20461.101465,154.204695%20459.779004,154.008613%20C459.633593,153.987044%20459.484251,153.976259%20459.336874,153.976259%20Z'%20id='profile_ico'%3e%3c/path%3e%3c/g%3e%3c/g%3e%3c/svg%3e){kind=small}
Saņemt īpašu cenu
Certified Teltonika Engineers
Official Teltonika Distributor
Pieejamas alternatīvas
Preces apraksts
Nevainojama tīkla pārvaldība
TSW202 PoE + komutators paplašina tīkla vadības iespējas, sniedzot lietotājiem pilnīgu kontroli pār tīkla infrastruktūru. Plašs pārvaldības funkciju klāsts ļauj efektīvi konfigurēt, kontrolēt un novērst defektus, nodrošinot maksimālu tīkla veiktspēju.
Universālais risinājums
TSW202 PoE+ komutators nodrošina centralizētu enerģijas sadali. Pateicoties astoņiem Gigabit Ethernet portiem, no kuriem katrs nodrošina 30 W jaudu, šis komutators bez grūtībām nodrošina strāvas padevi dažādām pieslēgtajām ierīcēm, novēršot nepieciešamību lietot vairākus strāvas adapterus un vienkāršojot tīkla pārvaldību. Aprīkots ar diviem augstas veiktspējas SFP portiem, TSW202 PoE+ komutators ļauj paplašināt tīkla darbības zonu, nodrošinot uzticamus savienojumus lielos attālumos.
M2M mijiedarbības optimizēšana
Komutators TSW202 atbalsta plašu industriālo protokolu klāstu, ieskaitot Ethernet/IP, Profinet un MRP, nodrošinot netraucētu integrāciju ar esošajām rūpnieciskās automatizācijas sistēmām. Tas uzlabo M2M komunikācijas, nodrošinot efektīvu datu apmaiņu starp ierīcēm un veicinot lēmumu pieņemšanu reālajā laikā.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Interfeisi

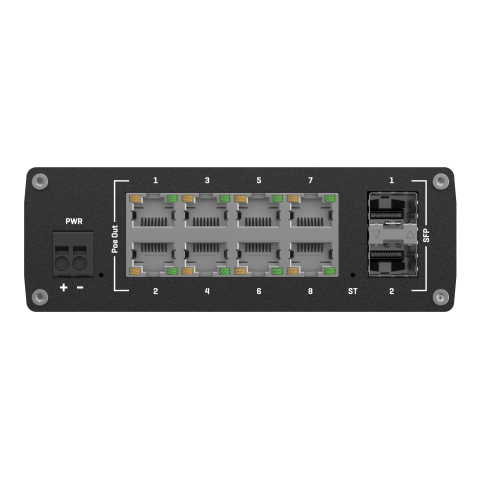

RJ45 porti
(8) 1 Gbps
PoE portu skaits
8 gab
PoE standarti
802.3af (PoE), 802.3at (PoE+)
SFP porti
(2) 1G SFP
Sistēmas specifikācija
RAM atmiņas apjoms
128 MB
Iebūvētās atmiņas apjoms
16 MB
Elektroapgāde
Enerģijas veids
AC/DC adapteris
Enerģijas padeve
Ārējais AC/DC adapteris
Atbalstītais ieejas spriegums
7 - 57 V DC
Maksimālais enerģijas patēriņš
240 W
Barošanas savienotājs
2-pin, 3 mm
Fiziskie parametri
Materiāls
Alumīnijs
Aizsardzība pret mitrumu un putekļiem
IP30
Izmēri
132 x 44.2 x 122.2 mm
Svars
0.610 kg
Darbības temperatūra
-40 °C līdz 75 °C
Montāžas veids
DIN sliede, Sienas stiprinājums, Galda virsma
Iepakojumā iekļauts
Ārējais barošanas bloks
Nav iekļauts
