EdgeSwitch 16 XG
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Ubiquiti UniFi Switch Aggregation
USW-Aggregation
Pieejamas alternatīvas
Preces apraksts
Augsta veiktspēja

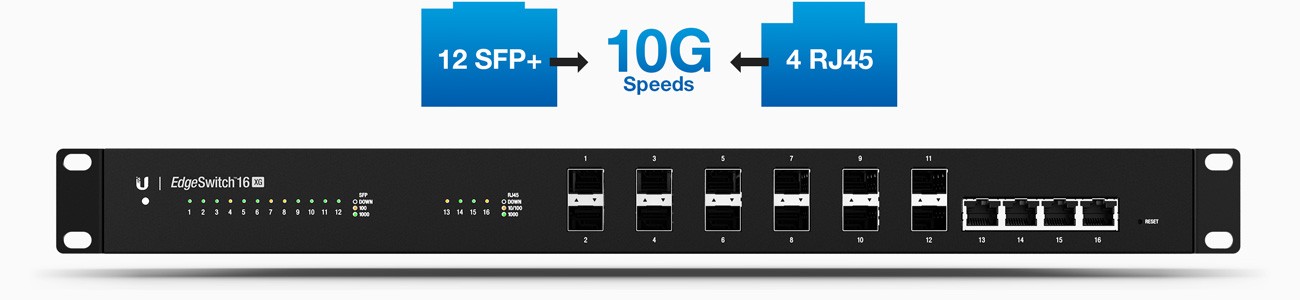

EdgeSwitch ir jaudīgs komutators ar īpaši augstu veiktspēju. Komutatoram ir divpadsmit SFP+ porti un četri RJ45 10GBASE-T porti, katra no kurām nodrošina datu pārraides ātrumu līdz 10 Gbps.
EdgeSwitch nodrošina trafika pārsūtīšanu vienlaicīgi pa visiem portiem ar līnijas ātrumu bez pakešu zudumiem. EdgeSwitch 16 XG komutatora kopējā caurlaidspēja ir 160 Gbps ar pakešu apstrādes ātrumu 238 Mpps.

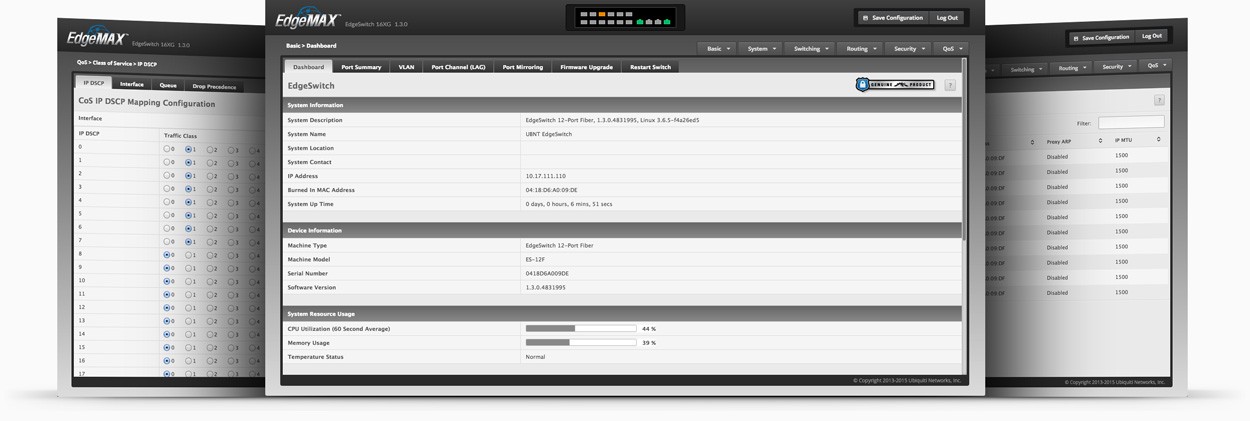

EdgeMax operētājsistēma
EdgeSwitch 16 XG izmanto EdgeMax operētājsistēmu, kas nodrošina ērtu grafisko konfigurācijas saskarni un uzlabotas komutācijas funkcijas, tostarp VLAN marķēšanu un kanālu agregāciju, kā arī ierobežotas 3. slāņa funkcijas, tostarp statiskās maršrutēšanas un DHCP servera funkcijas.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Interfeisi
RJ45 porti
(4) 10 Gbps
PoE standarti
nav PoE
SFP porti
(12) 10G SFP+
Komunikācijas interfeiss
RJ45
Pārvaldīšana
Ethernet
Elektroapgāde
Enerģijas veids
AC/DC adapteris
Enerģijas padeve
Iekšējais barošanas bloks, Ārējais AC/DC adapteris
Atbalstītais ieejas spriegums
100 - 240 V AC
Maksimālais enerģijas patēriņš
56 W
Barošanas savienotājs
Līdzstrāvas spraudnis 2,1 x 5,5 mm
Fiziskie parametri
Krāsa
Melns
Izmēri
443 x 221 x 43 mm
Svars
2.71 kg
Darbības temperatūra
-5 °C līdz 40 °C
Vide
Iekštelpu
Formas faktors
Montāžai 19" plauktā
Plauktu vienību skaits
1U
Montāžas veids
Montāža plauktā
