Virziena antena ar augsto pastirpinājuma koeficientu

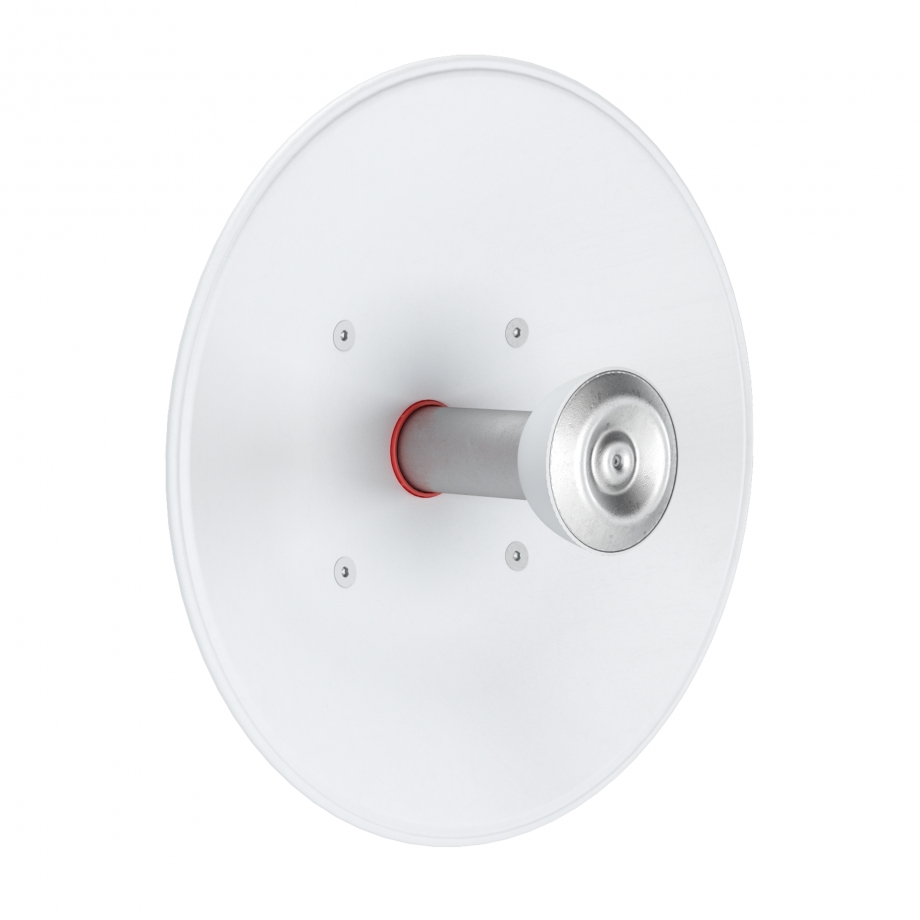

UltraDish™ TP antenas ir paraboliskās antenas ar plašu pastiprinājuma diapazonu un TwistPort™ savienotāju. UltraDish TP antenas ir šauri virzītās un sasniedz maksimālo veiktspēju, izmantojot starojuma sānu daivu samazināšanas tehnoloģiju.
Stara īpašības

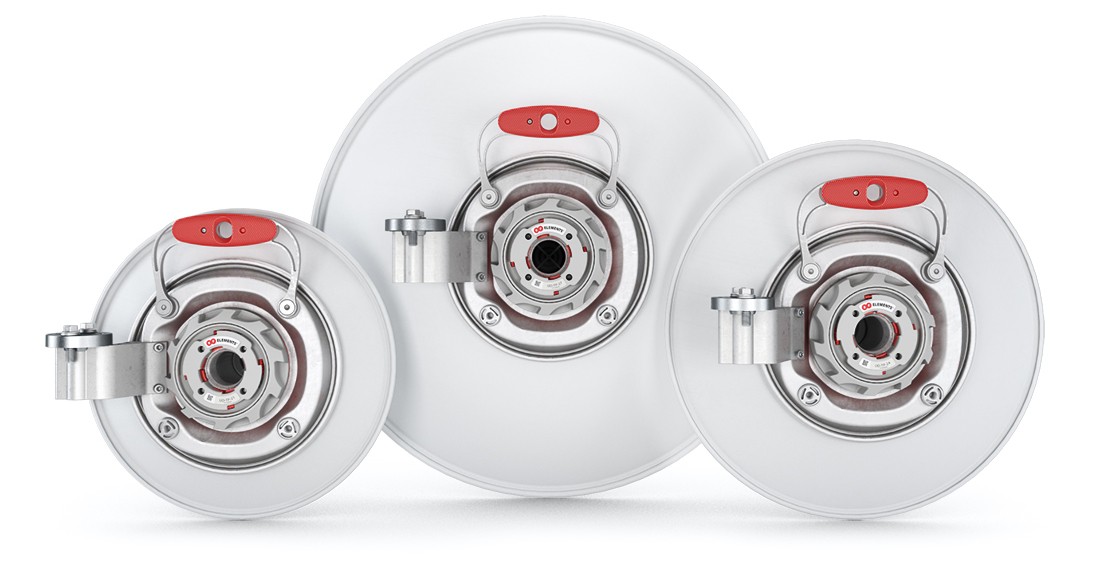

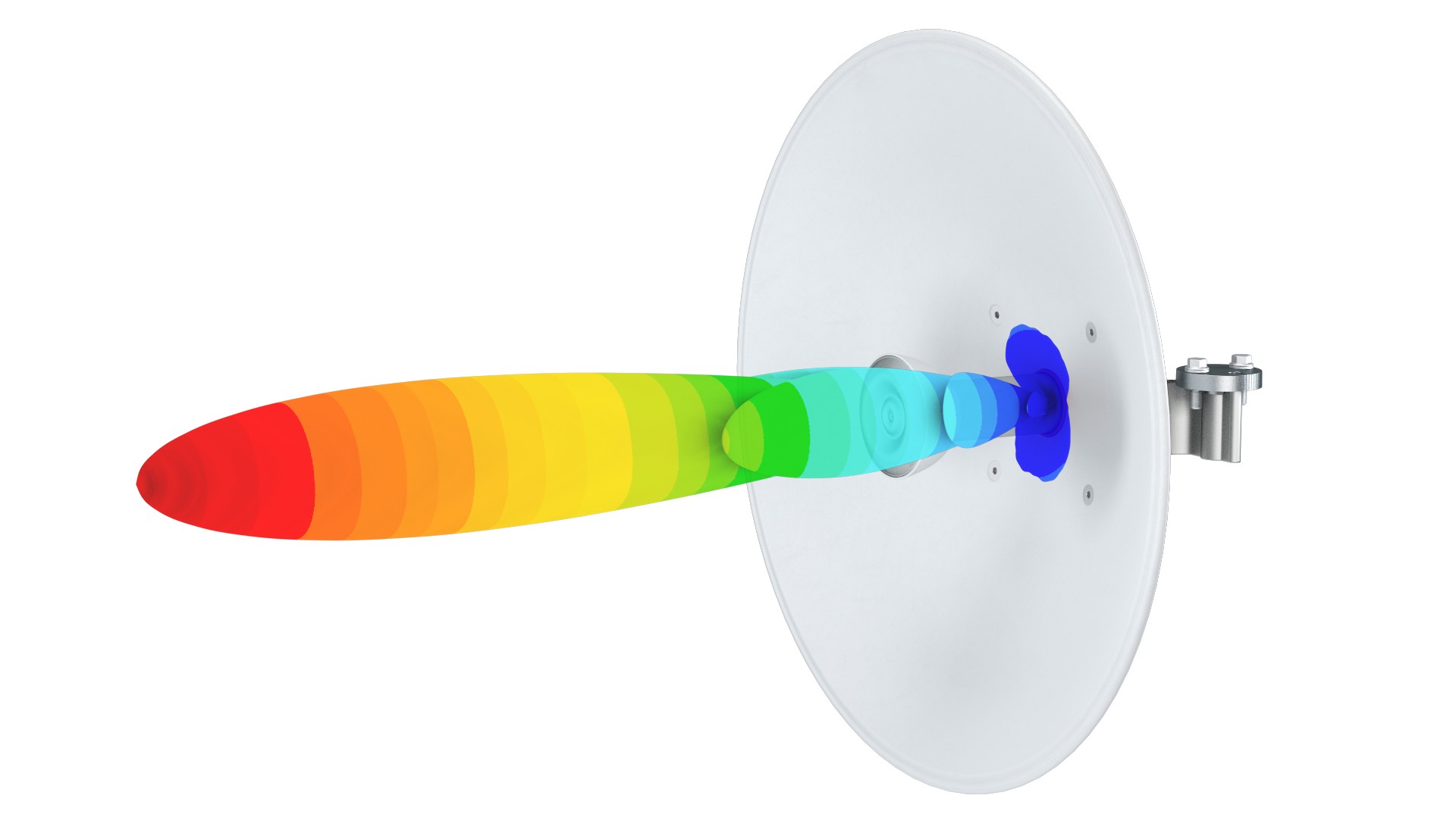

UltraDish™ TP antenu starojuma diagramma ar samazinātām sānu daivām minimizē saņemtos un pārraidītos traucējumus vidē ar augsto trokšņa līmeni. Elastīgais UltraDish™ TP antenu pastiprinājums tiek panākts, pielāgojot galvenā atstarotāja izmēru.
Plašs frekvenču diapazons 5.18 - 6.4 GHz

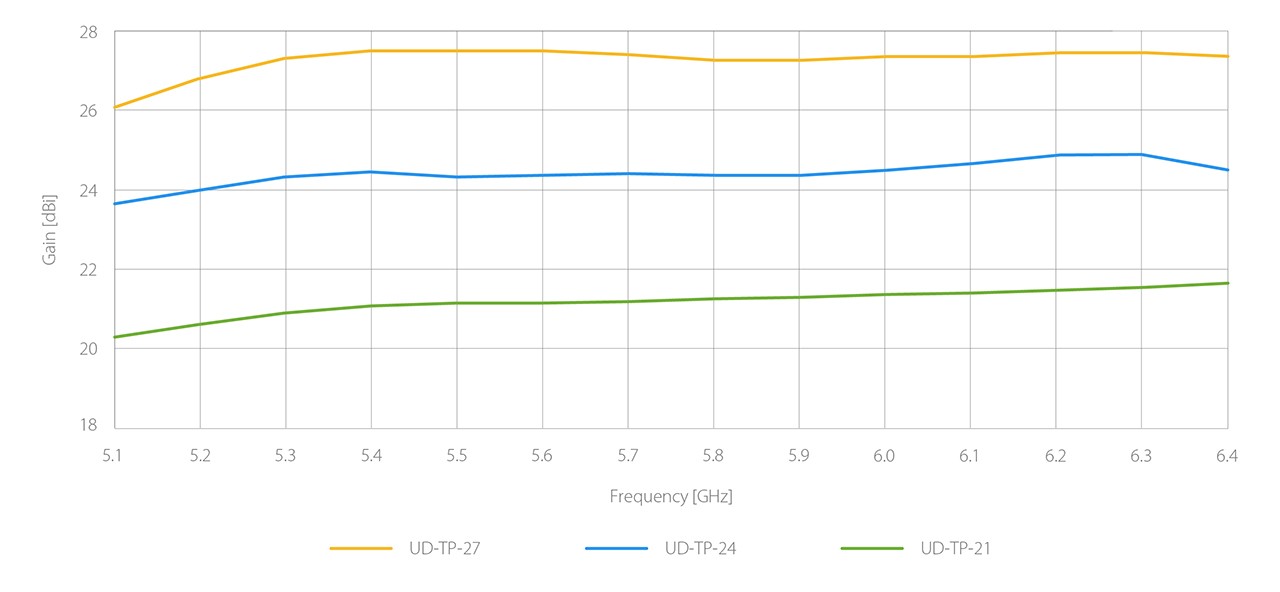

Stabils antenas pastiprinājums ir būtisks, lai nodrošinātu uzticamu kanāla darbību. Visu trīs UltraDish™ TP antenu pastiprinājums ir stabils visā darbības frekvenču diapazonā no 5,18 līdz 6,4 GHz, kas ļauj vienmērīgi izmantot visu spektru starp UNII-1 un UNII-5 joslām, neatkarīgi no izmantotā kanāla.
TwistPort savienotājs

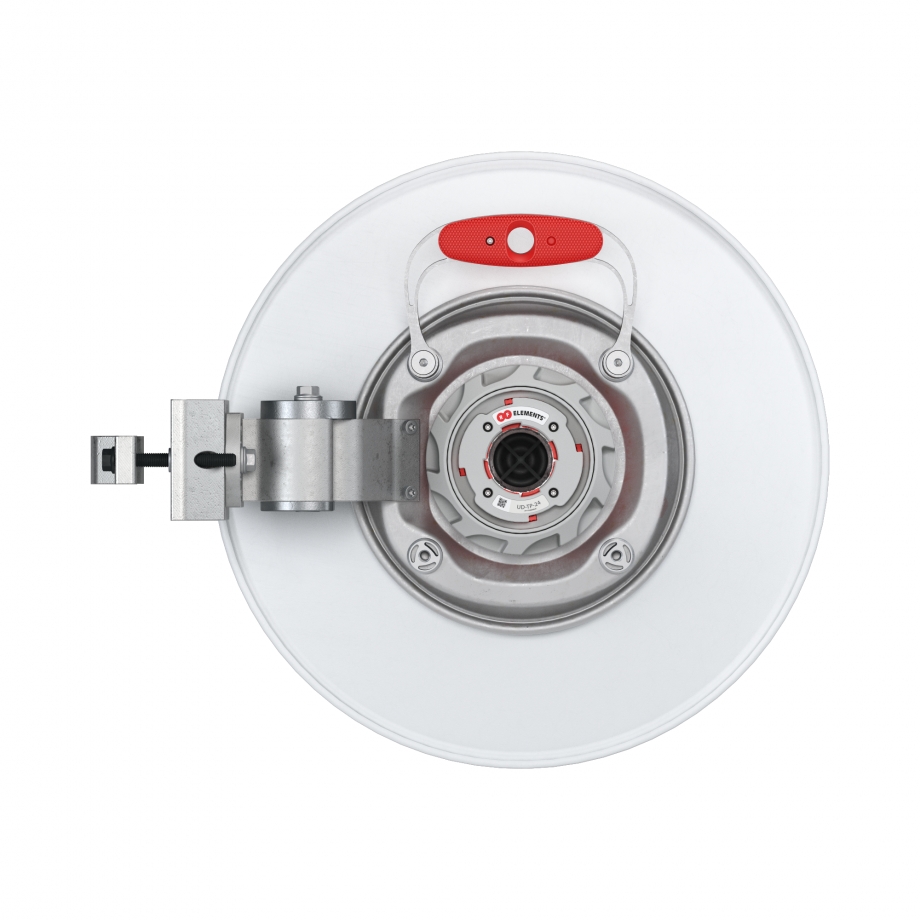

TwistPort™ ir RF Elements patentētais viļņvadu savienotājs, kas strādā praktiski bez zudumiem. Tas savieno antenu ar radio moduli un iemieso jaunu augstas veiktspējas un viegli lietojamu bezvadu aprīkojuma standartu.

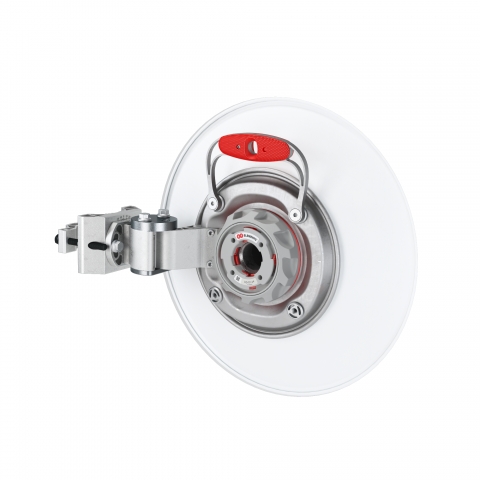

TwistPort™ darbība ir ārkārtīgi vienkārša. Montāža un radiofrekvenču savienojums ir apvienoti vienā, elegantā un ļoti funkcionālā "pagriez un nobloķē" dizainā. Radio moduļa instalācija ar vienu roku tagad ir reāla iespēja!
Tehniskās specifikācijas / Datu lapa
