4G LTE āra antena 6dBi, jūras klase
nav noliktavā
?
61.95 €
61.95 €
Preces apraksts

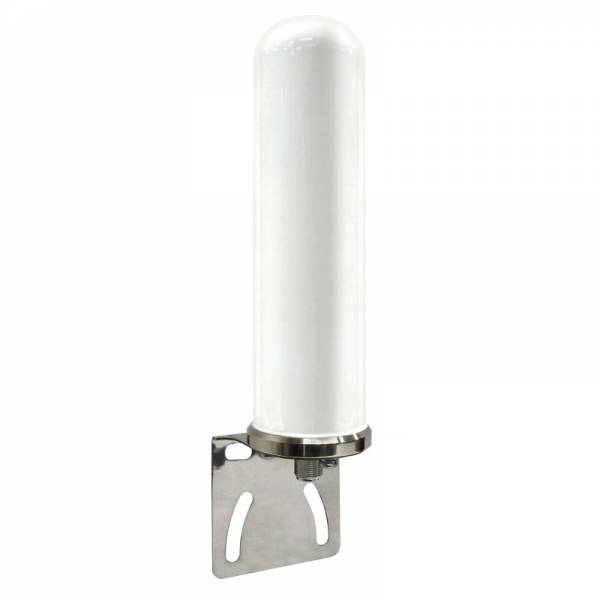

AOA-M4G ir visvirziena 4G/LTE antena no ALFA Network izmantošanai ārpus telpām ar paaugstinātu aizsardzību pret ūdens iekļūšanu. Darbojas frekvenču joslā 698-960 MHz SISO 1x1 ar 4 dBi pastiprinājumu un 1710-2700 MHz SISO 1x1 ar 6 dBi pastiprinājumu. Aprīkota ar ūdensnecaurlaidīgu N Female tipa savienotāju.

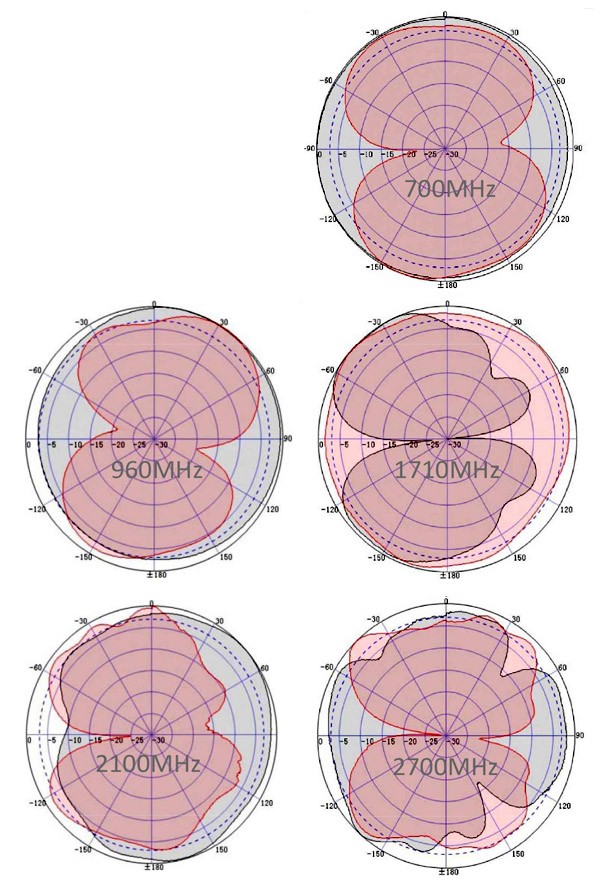

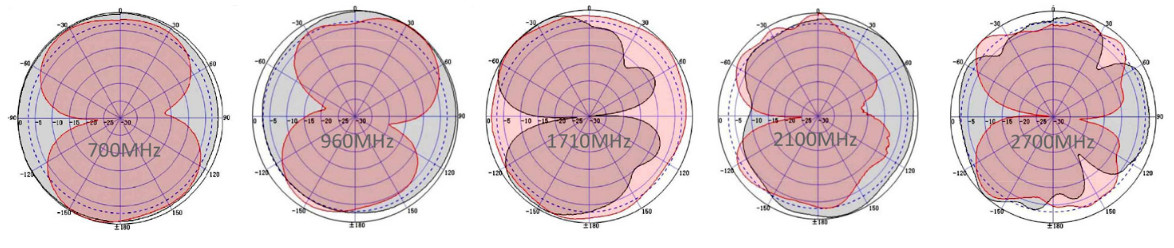

Frequency Diagram
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
4G (LTE)
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.96 (GHz) 4 (dBi), 1.71 - 2.7 (GHz) 6 (dBi)
Stara platums
18 ° Vertikāli, 360 ° Horizontāli
Polarizācija
Vertikālā
VSWR
< 1.5
Pretestība
50 Ω
Maksimālā ieejas jauda
100 W
Konnektori
RF savienotāji

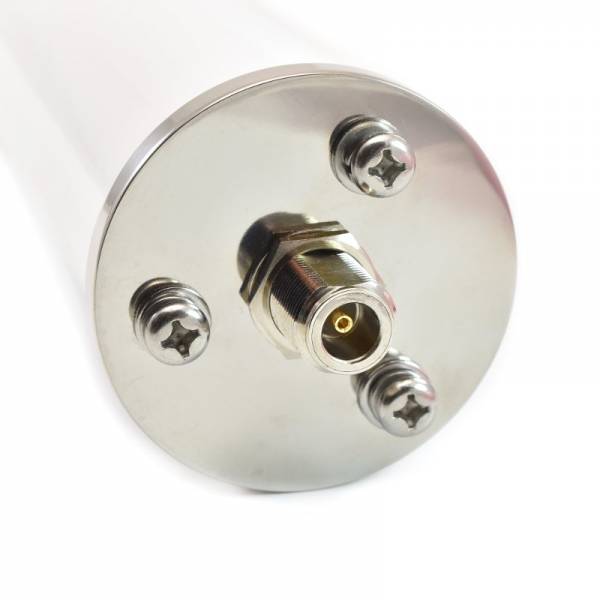

(1) N Female
Fiziskie parametri
Krāsa
Balts
Materiāls
Stikla šķiedra
Aizsardzība pret mitrumu un putekļiem
Jūras klase
Izmēri
Ø63 x 220 mm
Svars
1.2 kg
Darbības temperatūra
-40 °C līdz 70 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
Pieļaujamais vēja ātrums
60 m/s
