4G LTE āra antena 8dBi IP67 N-Male
nav noliktavā
?
39.13 €
39.13 €
Pieejamas preces variācijas
Pieejamas alternatīvas
Preces apraksts

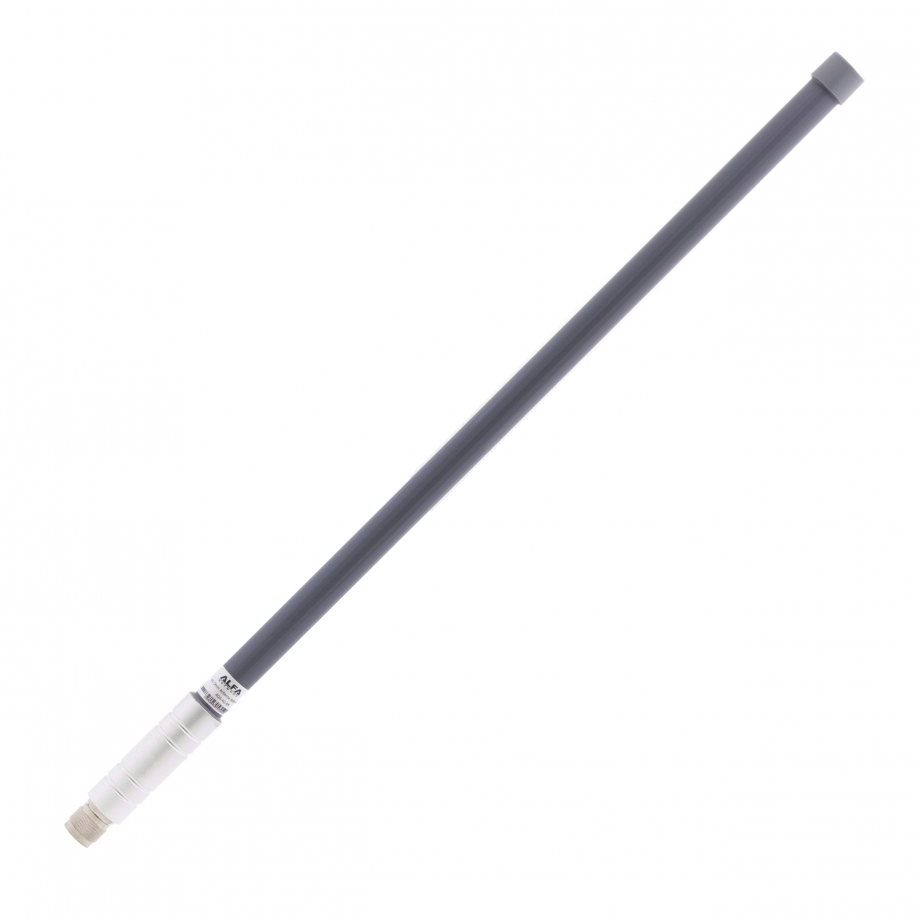

AOA-4G-8M ir visvirziena 4G/LTE antena no ALFA Network, kas paredzēta lietošanai ārpus telpām ar IP67 korpusa aizsardzību. Darbojas frekvenču joslā 698-960 MHz SISO 1x1 ar 6 dBi pastiprinājumu un 1710-2700 MHz SISO 1x1 ar 8 dBi pastiprinājumu. Aprīkota ar N Male tipa savienotāju.

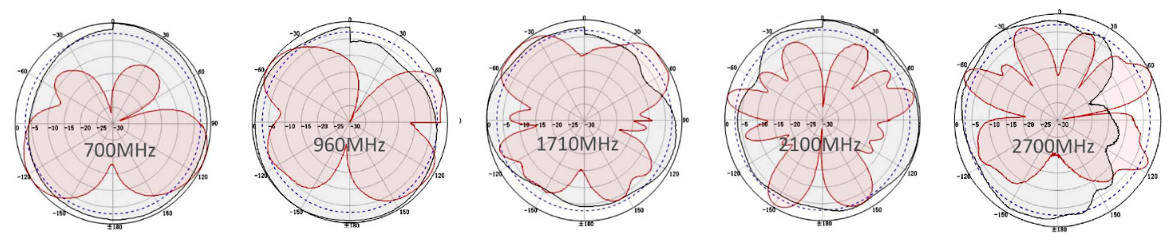

Frekvenču diagramma
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
4G (LTE)
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.698 - 0.960 (GHz) 6 (dBi), 1.710 - 2.700 (GHz) 8 (dBi)
Stara platums
16 ° Vertikāli, 360 ° Horizontāli
Polarizācija
Vertikālā
VSWR
< 1.5
Pretestība
50 Ω
Maksimālā ieejas jauda
100 W
Konnektori
RF savienotāji

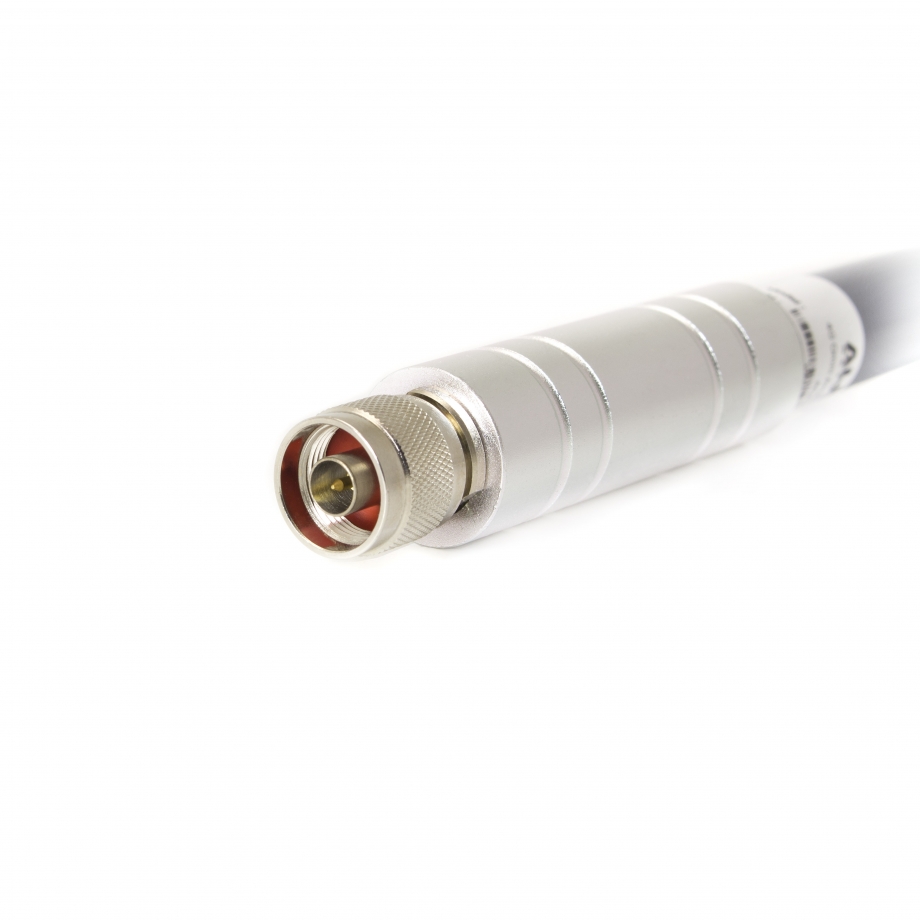

(1) N Male
Fiziskie parametri
Krāsa
Pelēks
Materiāls
Stikla šķiedra
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
Ø20 x 600 mm
Svars
0.65 kg
Darbības temperatūra
-40 °C līdz 70 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
Pieļaujamais vēja ātrums
60 m/s
