Zīmols
Ražotāja daļas nr
ARS-NT5B
Garantija
?
24 mēneši
EAN numurs
4718050302543

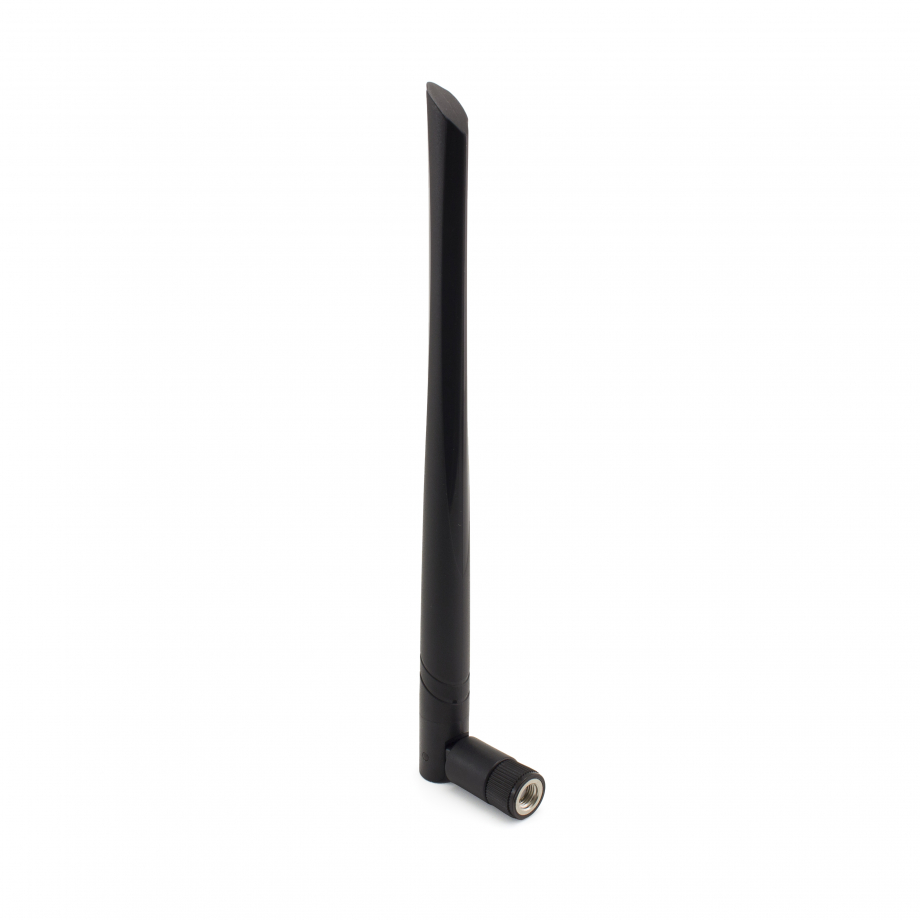

Alfa 2.4/5GHz iekštelpu antena 5dBi, RP-SMA Male
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Pieejamas alternatīvas
Preces apraksts
Alfa ARS-NT5B ir divvirzienu divjoslu Wi-Fi antena ar 5 dBi pastiprinājumu izmantošanai 802.11ac un 802.11n/g/b tīklos. Antena spēj uztvert un pārraidīt Wi-Fi signālus 2,4 GHz un 5 GHz frekvenču joslās.
Antenu var izmantot ar jebkuru Wi-Fi adapteri vai bezvadu maršrutētāju ar RP-SMA savienotājiem. Tas ir ērts un izdevīgs veids, kā pievienot trūkstošo Wi-Fi antenu vai aizstāt antenu ar zemu pastiprinājuma koeficientu ar jaudīgāku antenu.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Bezvadu antenas frekvences diapazons un pastiprinājums
2.4 - 2.483 (GHz) 5 (dBi), 5.15 - 5.875 (GHz) 5 (dBi)
Stara platums
360 ° Vertikāli
Polarizācija
Lineāra
VSWR
< 1.5
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) RP-SMA Male
Fiziskie parametri
Izmēri
Ø13 x 196 mm
Darbības temperatūra
-40 °C līdz 65 °C
Vide
Iekštelpu
