Zīmols
Ražotāja daļas nr
ARS-N19
Garantija
?
24 mēneši
EAN numurs
4718050300167

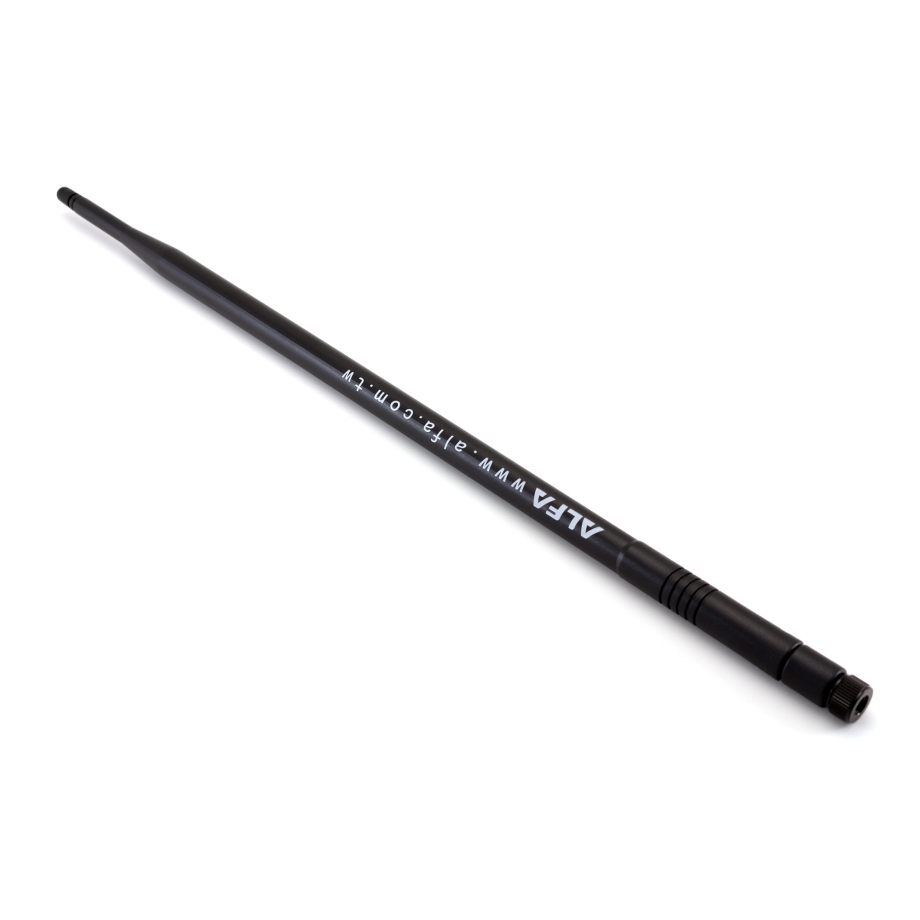

Alfa iekštelpu 9dBi Omni antena ARS-N19, melna
nav noliktavā
?
6.88 €
6.88 €
Pieejamas preces variācijas
Preces apraksts
Alfa ARS-N19 ir visvirziena antena ar augstu pastiprinājuma koeficientu, kas paredzēta lietošanai iekštelpās. Tā ir ideāli piemērota bezvadu signāla jaudas paaugstināšanai un iekštelpu pārklājuma uzlabošanai. Visvirzienu konstrukcija un augsts pastiprinājuma koeficients nodrošina stabilu un drošu Wi-Fi savienojumu dažādām ierīcēm. ARS-N19 darbojas 2,4-2,5 GHz frekvenču diapazonā, ar pastiprinājuma koeficientu 9 dBī un stara platumu 360 °. Antenai ir lineāra un vertikāla polarizācija, lai sasniegtu optimālos signāla raksturlielumus. ARS-N19 ir izgatavota no augstas kvalitātes materiāliem un to raksturo izturība un uzticamība. Tai ir kompakti izmēri un zems profils, kas atvieglo tās uzstādīšanu. Turklāt tā ir ļoti vienkārša lietošanā un neprasa speciālu programmatūru vai konfigurāciju.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Bezvadu antenas frekvences diapazons un pastiprinājums
2.4 - 2.5 (GHz) 9 (dBi)
Stara platums
360 ° Vertikāli
Polarizācija
Lineāra, Vertikālā
VSWR
< 1.5
Pretestība
50 Ω
Konnektori
RF savienotāji

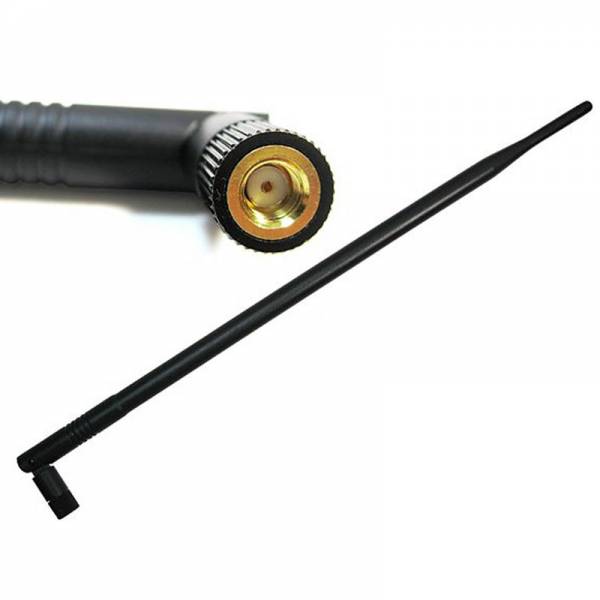

(1) RP-SMA Male
Fiziskie parametri
Krāsa
Melns
Materiāls
Plastmasa
Izmēri

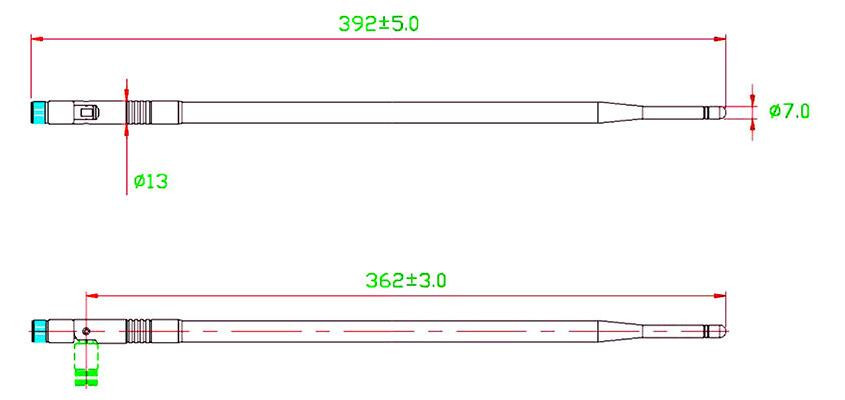

Ø13 x 392 mm
Darbības temperatūra
-10 °C līdz 55 °C
Vide
Iekštelpu
