Zīmols
Ražotāja daļas nr
AOA-2458-46ACM
Garantija
?
24 mēneši
EAN numurs
4718050307470
Alfa 2.4/5GHz āra antena 4 /6dBi, N-Male
ir noliktavā
?
13.27 €
13.27 €
Pieejamas preces variācijas
Preces apraksts
AOA-2458-46ACM ir divjoslu daudzvirzienu antena no ALFA Network, kas paredzēta lietošanai ārpus telpām. Tas darbojas frekvenču joslās 2400-2483 MHz ar 4 dBi pastiprinājumu un 5150-5875 frekvenču joslā ar 6 dBi pastiprinājumu, izmantojot standartu SISO 1x1. Aprīkota ar N Male tipa savienotāju.

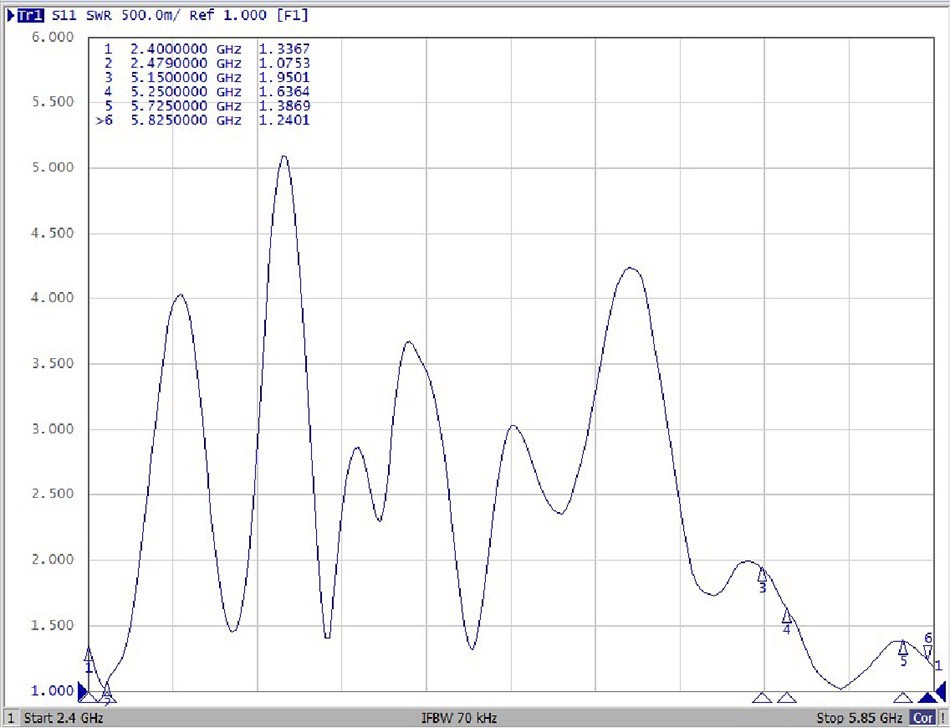

VSWR

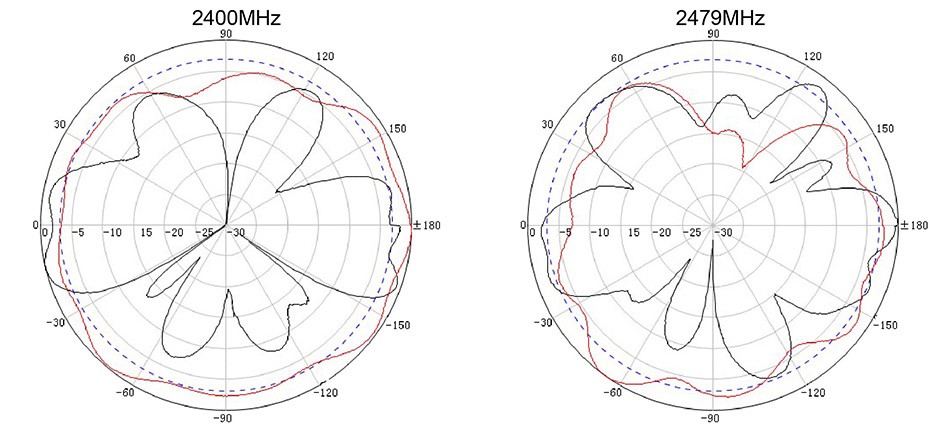

Frekvenču diagramma
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Bezvadu antenas frekvences diapazons un pastiprinājums
2.400 - 2.483 (GHz) 4 (dBi), 5.150 - 5.875 (GHz) 6 (dBi)
Stara platums
360 ° Vertikāli
Polarizācija
Lineāra
VSWR
< 2.0
Pretestība
50 Ω

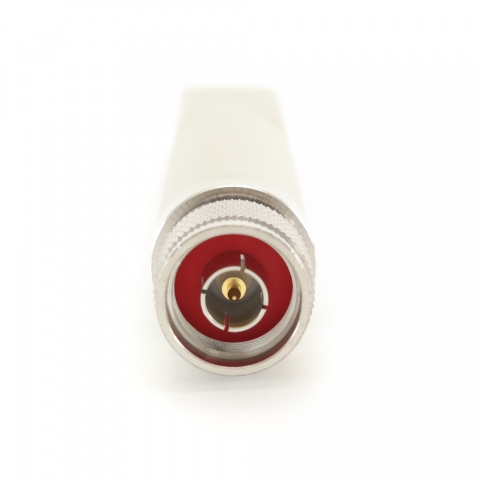

Konnektori
RF savienotāji
(1) N Male
Fiziskie parametri
Izmēri
Ø22 x 180 mm
Svars
0.07 kg
Darbības temperatūra
-40 °C līdz 85 °C
