Zīmols
Ražotāja daļas nr
CRS106-1C-5S
Garantija
?
24 mēneši
EAN numurs
4752224000101

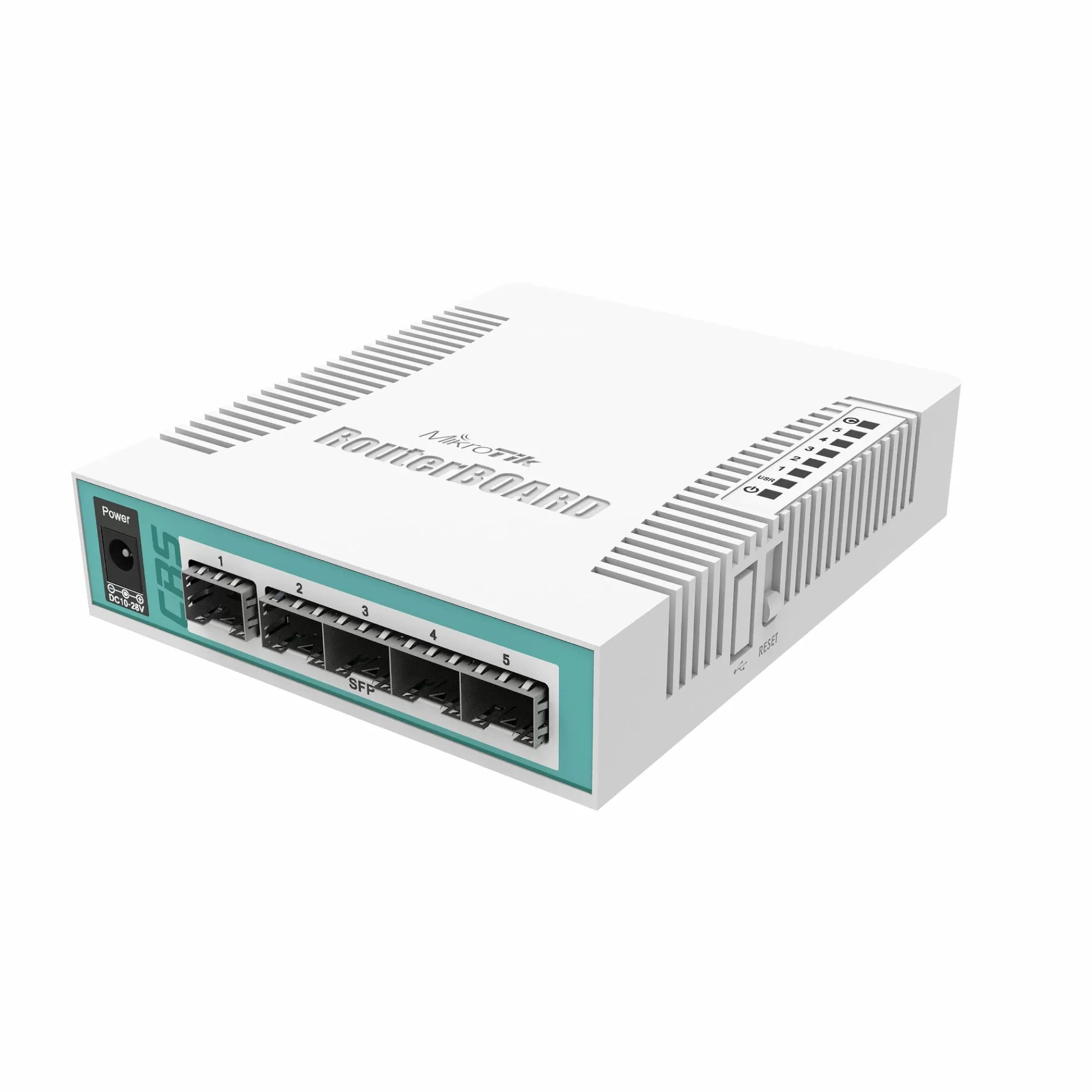

MikroTik CRS106-1C-5S
MikroTik MTCNA Certificate
MikroTik Value Added Distributor
ir noliktavā
?
51.58 €
51.58 €
MikroTik MTCNA Certificate
MikroTik Value Added Distributor
Preces apraksts
Universāls un efektīvs risinājums
Mikrotik CRS106-1C-5S ir jaudīgs un universāls komutators, kas palīdzēs uzlabot jūsu tīkla darbības efektivitāti. Tas ir kompakts un viegli lietojams, taču piedāvā plašu funkciju un iespēju klāstu. CRS106-1C-5S komutators ir aprīkots ar vienu kombinētu Gigabit Ethernet / SFP portu un pieciem 1,25G SFP portiem, kas nodrošina plašas savienojamības iespējas. Šāda konfigurācija ļauj viegli pievienot tīklam dažādas ierīces, nodrošinot nepārtrauktu datu pārraidi un efektīvu trafika vadību.
Praktiskais dizains
CRS106-1C-5S ir aprīkots ar 400 MHz procesoru un 128 MB operatīvo atmiņu, kas ļauj viegli tikt galā ar resursietilpīgiem uzdevumiem. Šis jaudīgais komutators darbojas ar RouterOS ar L5 licenci, kas nodrošina piekļuvi plašam tīkla funkciju klāstam. CRS106-1C-5S var darbināt no dažādiem barošanas avotiem, tostarp no 11-30 V līdzstrāvas avota. Komutators ir izpildīts kompaktā korpusā un tiek komplektēts ar ārējo AC/DC adapteri, kas nodrošina ērtu un uzticamu strāvas padevi.
Salīdzināt ar līdzīgiem produktiem
| Ethernet Ports | |||
| 1 x SFP/ETH Combo 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | |
| SFP Ports | |||
| 5 x 1.25 Gbps | 4 x 10 Gbps | 8 x 10 Gbps | |
| RAM | |||
| 128 MB | 512 MB | 512 MB | |
| Storage Memory | |||
| 16 MB | 16 MB | 16 MB | |
| Chipset | |||
| QCA8511, 1 core, 400 MHz | 98DX3236, 1 core, 800 MHz | 98DX8208, 2 core, 800 MHz | |
| Max Power Consumption | |||
| 11 W | 12 W | 17 W | |
| Form Factor | |||
| Desktop | Desktop | Rack-mounted 19", Desktop | |
| Mounting Method | |||
| Wall Mount, Tabletop | Tabletop | RackMount, Tabletop | |
| Ethernet Ports | 1 x SFP/ETH Combo 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps |
| SFP Ports | 5 x 1.25 Gbps | 4 x 10 Gbps | 8 x 10 Gbps |
| RAM | 128 MB | 512 MB | 512 MB |
| Storage Memory | 16 MB | 16 MB | 16 MB |
| Chipset | QCA8511, 1 core, 400 MHz | 98DX3236, 1 core, 800 MHz | 98DX8208, 2 core, 800 MHz |
| Max Power Consumption | 11 W | 12 W | 17 W |
| Form Factor | Desktop | Desktop | Rack-mounted 19", Desktop |
| Mounting Method | Wall Mount, Tabletop | Tabletop | RackMount, Tabletop |
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Interfeisi
PoE standarti
nav PoE
SFP porti
(5) 1G SFP, (1) 1G SFP / ETH kombinācija
Komunikācijas interfeiss
RJ45
Pārvaldīšana
Ethernet
Sistēmas specifikācija
Chipset
QCA8511, 1 core, 400 MHz
RAM atmiņas apjoms
128 MB
Iebūvētās atmiņas apjoms
16 MB
Elektroapgāde
Enerģijas veids
AC/DC adapteris, 24V pasīvā PoE
Enerģijas padeve
Ārējais AC/DC adapteris
Atbalstītais ieejas spriegums
11 - 30 V DC
Maksimālais enerģijas patēriņš
11 W
Barošanas savienotājs
Līdzstrāvas spraudnis 2,1 x 5,5 mm
PSU / POE adapter
24 V DC 0.8 A
Fiziskie parametri
Aizsardzība pret mitrumu un putekļiem
IP20
Izmēri
137 x 114 x 29 mm
Darbības temperatūra
-20 °C līdz 70 °C
Vide
Iekštelpu
Montāžas veids
Sienas stiprinājums, Galda virsma
Formas faktors
Darbvirsmas
Iepakojumā iekļauts
Ārējais barošanas bloks
Iekļauts
Programmatūra
MikroTik
RouterOS Level 5
