Ražotāja daļas nr
DS-3E0109P-E
Garantija
?
24 mēneši
EAN numurs
6941264013976

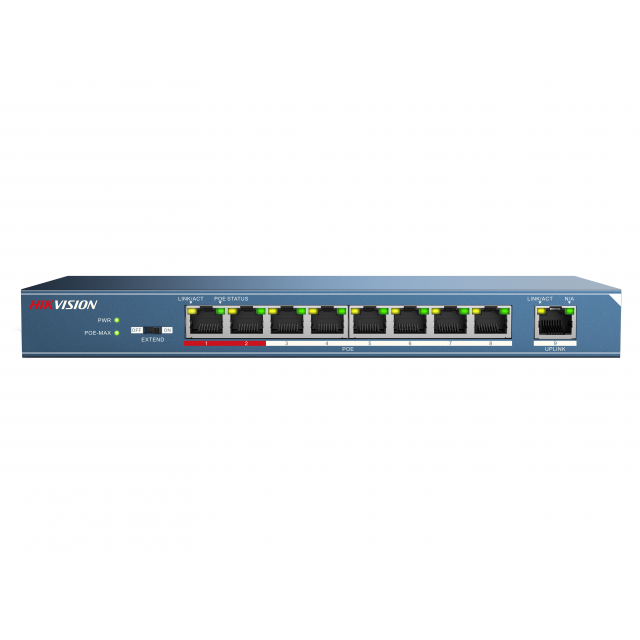

Hikvision komutators DS-3E0109P-E PoE
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Hikvision komutators DS-3E0310HP-E
DS-3E0310HP-E
Pieejamas alternatīvas
Preces apraksts
Hikvision DS-3E0109P-E nepārvaldāms PoE slēdzis ir aprīkots ar astoņiem RJ-45 FE portiem ar PoE atbalstu un RJ-45 FE portu. Režīmā Extend PoE pārraides diapazons pa vītā pāra kabeli sasniedz 300 m. Ar kopējo PoE budžetu 115 W, slēdzis piešķir līdz 30 W uz vienu portu. Kad slodze tiek pārsniegta, tas piegādā strāvu saskaņā ar PoE prioritātes piešķiršanu 1. un 2. portam. DS-3E0109P-E ir aprīkots ar PoE, Link / Act un strāvas LED indikatoriem. Nodrošina 6kV pārsprieguma aizsardzību. Iebūvēts pārsprieguma aizsargs pasargā slēdzi no pēkšņiem zibens spērieniem. Dizains bez ventilatora, metāla korpuss. VIP ports nodrošina svarīgu datu pārsūtīšanu tīkla pārslodzes gadījumā.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Interfeisi
RJ45 porti
(9) 100 Mbps
PoE portu skaits
8 gab
PoE standarti
802.3af (PoE), 802.3at (PoE+)
Elektroapgāde
Enerģijas veids
AC/DC adapteris
Enerģijas padeve
Ārējais AC/DC adapteris
Maksimālais enerģijas patēriņš
120 W
Barošanas savienotājs
Līdzstrāvas spraudnis 2,1 x 5,5 mm
PSU / POE adapter
48 V DC 2.5 A
Fiziskie parametri
Materiāls
Metāls
Izmēri
170 × 27.6 × 93.1 mm
Svars
0.350 kg
Darbības temperatūra
-10 °C līdz 55 °C
Vide
Iekštelpu
Formas faktors
Darbvirsmas
Montāžas veids
Galda virsma
Iepakojumā iekļauts
Ārējais barošanas bloks
Iekļauts
