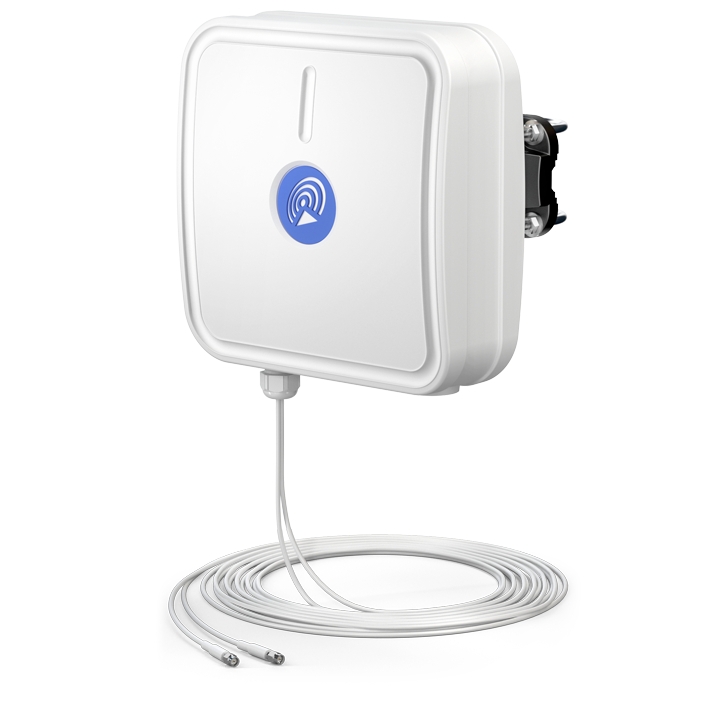

QuPanel 5G / LTE MIMO 2x2, 10m kabelis
ir noliktavā
?
157.93 €
157.93 €
Preces apraksts
QuPanel 5G / LTE virzītā MIMO 2x2 antena ar lielu pastiprinājuma jaudu ir domāta galvenokārt 5G un 4G LTE, taču tā ir saderīga arī ar 3G un 2G. Antena uzlabo signālu laukos / piepilsētās un vietās, kur mobilais signāls ir vājš. Paredzams, ka šī antena tiks uzstādīta uz ēkām (uz staba vai sienas). Pateicoties ļoti plašam darba frekvenču diapazonam antena ir universāls klients 5G joslām n77, n78 un LTE joslām, piemēram, LTE700/800/1800/1900/2100/2300/2600/3400/3800. Tā ir saderīga ar Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 un citiem MIMO 2x2 5G / LTE / 3G / 2G modemiem un maršrutētājiem.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Paneļa
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 7 (dBi), 1.7 - 2.7 (GHz) 7 (dBi), 3.3 - 3.8 (GHz) 5.5 (dBi)
Stara platums
70 ° Vertikāli, 70 ° Horizontāli
Kabeļa garums
10 m
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(2) SMA Male
Fiziskie parametri
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
392 x 392 x 96 mm
Svars
3.7 kg
Darbības temperatūra
-40 °C līdz 75 °C

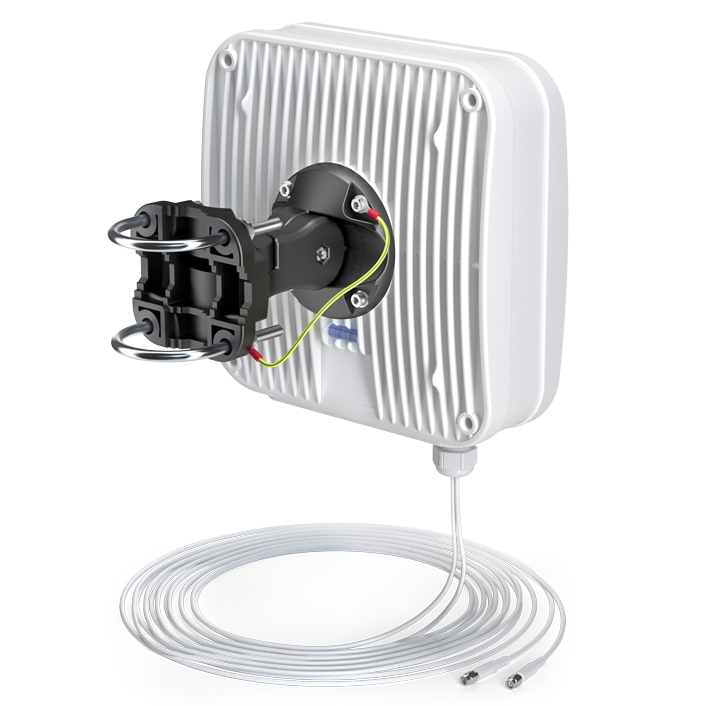

Montāžas veids
Staba stiprinājums
