Zīmols
Ražotāja daļas nr
AOLM2-1
Garantija
?
24 mēneši
EAN numurs
5907772035504

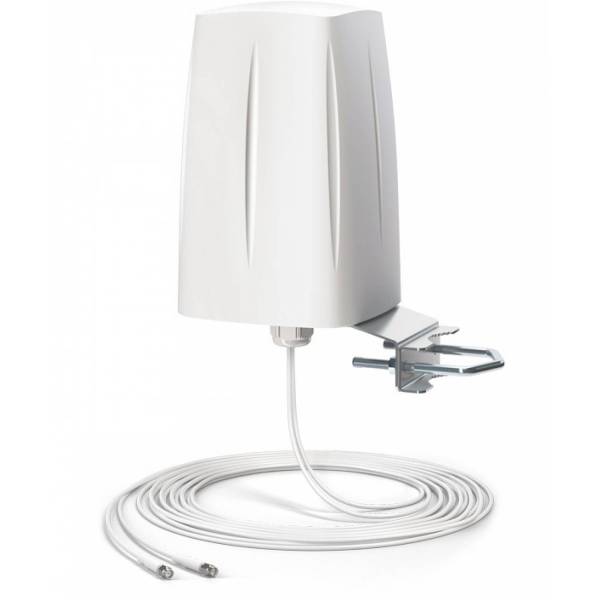

QuOmni LTE MIMO 2x2, 10m kabelis
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Pieejamas alternatīvas
Preces apraksts
Visvirziena LTE MIMO 2x2 daudzjoslu antena
Visvirziena LTE MIMO 2x2 antena darbojas ar vertikālu polarizāciju un ir paredzēta LTE/ 3G/ 2G savienojumiem. Antenu var izmantot populārākajās LTE joslās (piemēram, 3,7,20), 694-2700 MHz frekvenču diapazonā. Šī antena ir paredzēta uzstādīšanai uz ēkām (uz staba vai sienas) kā klienta antena vai uz kustīgiem objektiem, piemēram, vilcieniem, autobusiem, kravas automašīnām, jahtām, laivām, lai saņemtu LTE/3G signālu. Saderīga ar Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 un citiem MIMO 2x2 LTE/3G/2G modemiem un maršrutētājiem.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Kupola
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Mobilās antenas pastiprinājums
2 dBi, 4 dBi
Stara platums
35 ° Vertikāli, 360 ° Horizontāli
Kabeļa garums
10 m
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(2) SMA Male
Fiziskie parametri
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
240 x 160 x 160 mm
Svars
1.5 kg
Darbības temperatūra
-40 °C līdz 75 °C
Montāžas veids
Staba stiprinājums
