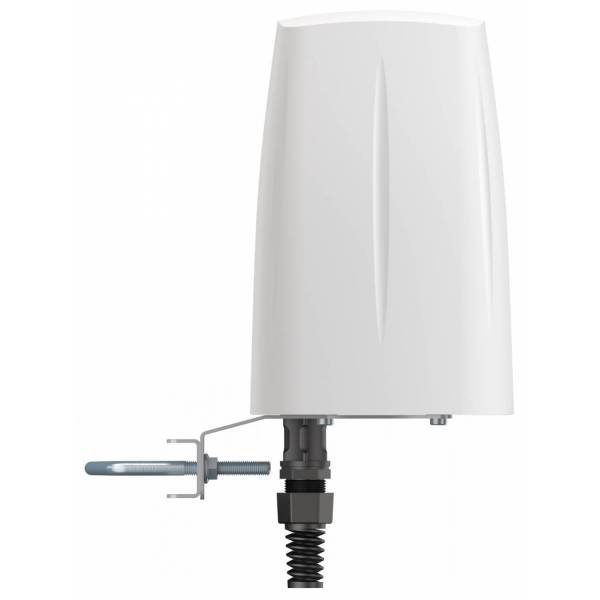

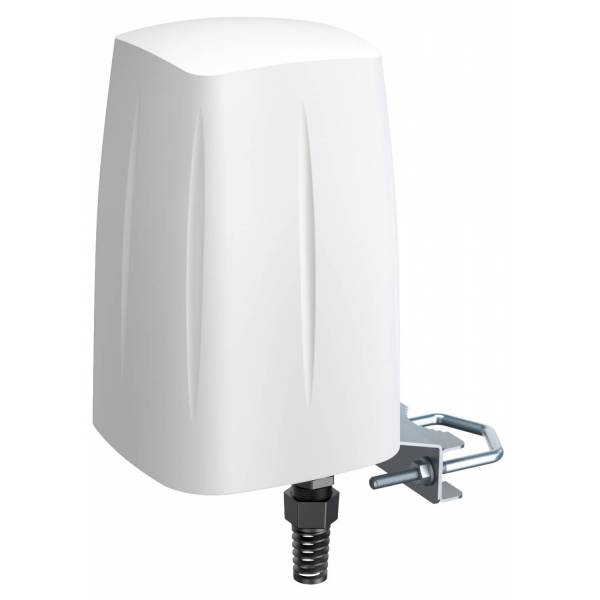

QuSpot antena RUTX09 iekārtām
ir noliktavā
?
113.11 €
113.11 €
Preces apraksts

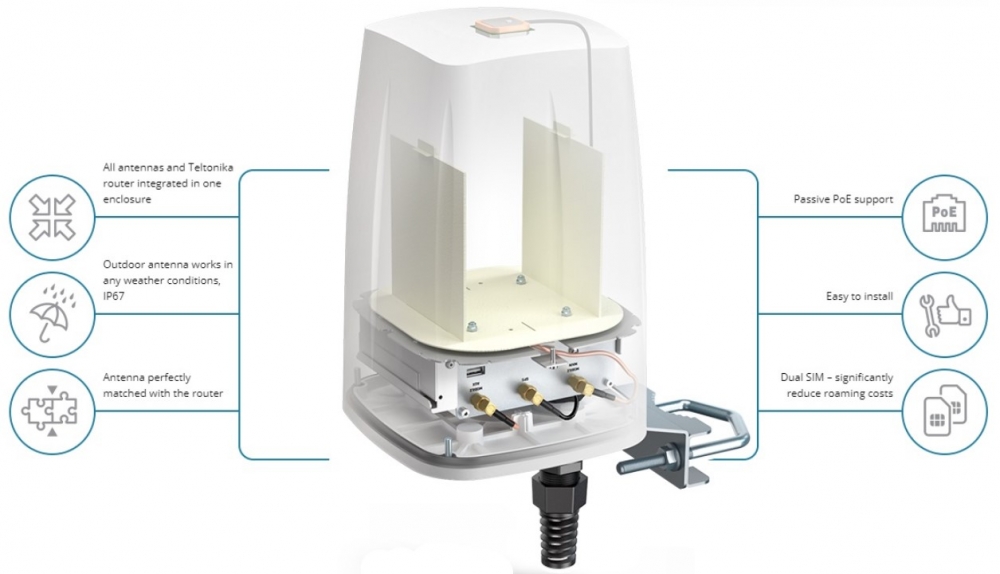

QuSpot omni LTE antena Teltonika RUTX09 maršrutētājam ir ideāla ierīce izmantošanai ārpus telpām mobilajās un stacionārajās sistēmās, piemēram, rūpniecības objektos, videonovērošanas sistēmās, piekļuves punktos, jahtās, laivās utt. Ierīcē ir iebūvēta arī GPS antena. Ja izmantojat RUTX09 kopā ar QuSpot antenu, jūs saņemat pilnvērtīgu risinājumu ar integrētu maršrutētāju un daudzjoslu antenu vienā korpusā.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
4G (LTE)
Antena
Antenas dizains
Kupola
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Mobilās antenas pastiprinājums
2 dBi, 4 dBi
Stara platums
35 ° Vertikāli, 360 ° Horizontāli
Polarizācija
Vertikālā
VSWR
< 2
Pretestība
50 Ω
Fiziskie parametri
Krāsa
Balts
Materiāls
Alumīnijs, ABS plastmasa, Politetrafluoretilēns
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
240 x 160 x 160 mm
Svars
1.5 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
