QuSpot antena RUT241/240/200/230 iekārtām
ir noliktavā
?
98.18 €
98.18 €
Preces apraksts

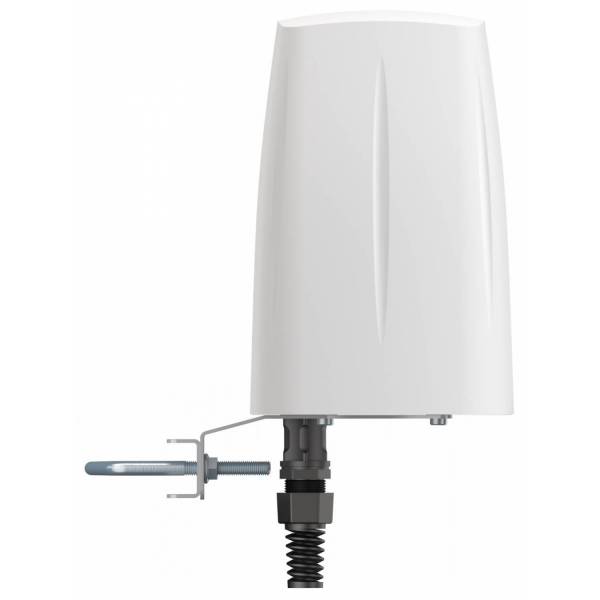

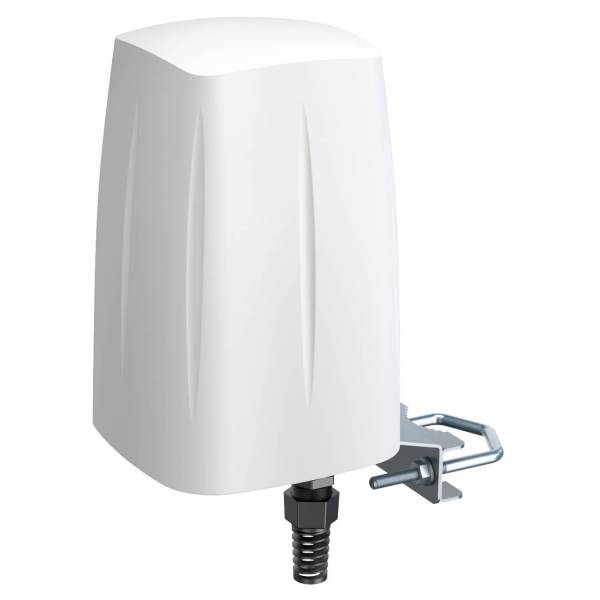

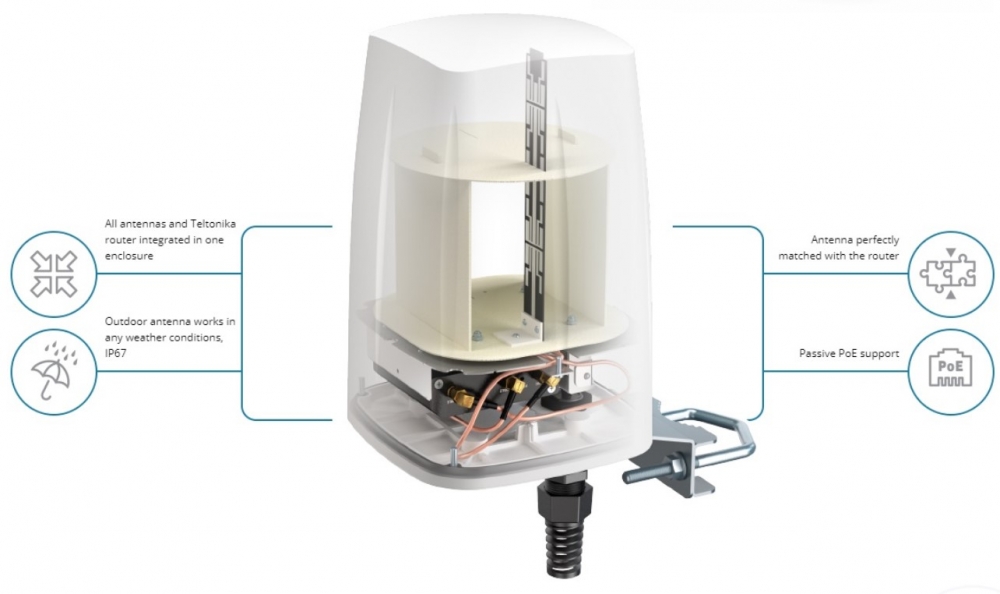

QuSpot LTE omni antena ir paredzēta izmantošanai ar maršrutētāju Teltonika RUT241, RUT240, RUT200 vai RUT230. Kopā tie izveido ideālo ārtelpu ierīci uzstādīšanai mobilajos vai stacionārajos objektos, piemēram, rūpnīcās, CCTV sistēmās, hotspotos, jahtās, laivās, kemperos utt. Tajā ir iebūvēta arī Wi-Fi omni antena. Ja jūs izmantojat RUT241, RUT240, RUT200 vai RUT230 ar QuSpot antenu, jūs iegūstat integrētu kompleksu risinājumu ar iebūvētu maršrutētāju un daudzdiapazonu antenām vienā korpusā.
PIEZĪME: priekš RUT230 viena LTE antena ir atvienota.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
4G (LTE)
Antena
Antenas dizains
Kupola
Bezvadu antenas frekvences diapazons un pastiprinājums
2.40 - 2.50 (GHz) 6 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Mobilās antenas pastiprinājums
2 dBi, 4 dBi
Stara platums
35 ° Vertikāli, 360 ° Horizontāli
Polarizācija
Vertikālā
VSWR
< 2
Pretestība
50 Ω
Fiziskie parametri
Krāsa
Balts
Materiāls
Alumīnijs, ABS plastmasa, Politetrafluoretilēns
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
240 x 160 x 160 mm
Svars
1.5 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
