Zīmols
Ražotāja daļas nr
R240S
Garantija
?
24 mēneši
EAN numurs
5907772035146

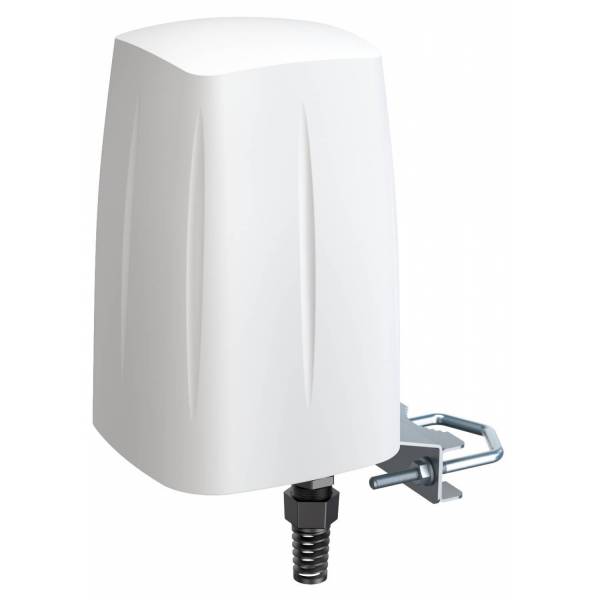

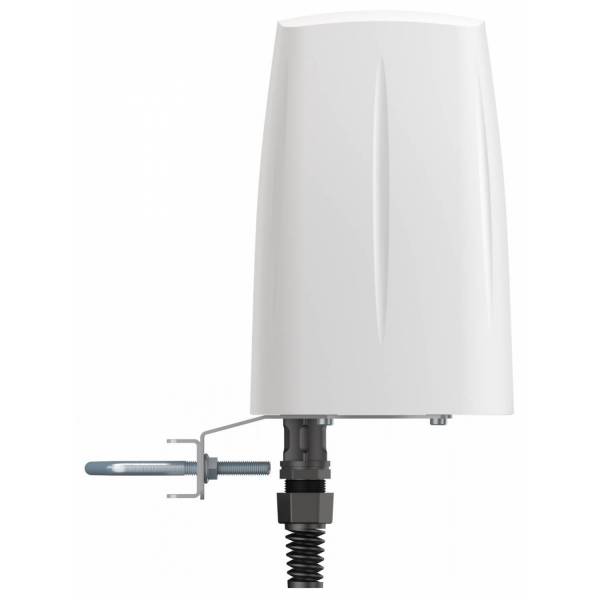

QuRouter 240S (Antenna with Intergated Tetltonika RUT240)
ir noliktavā
?
-16% 287.86 €
240.79 €
-16% 287.86 €
240.79 €
Preces apraksts

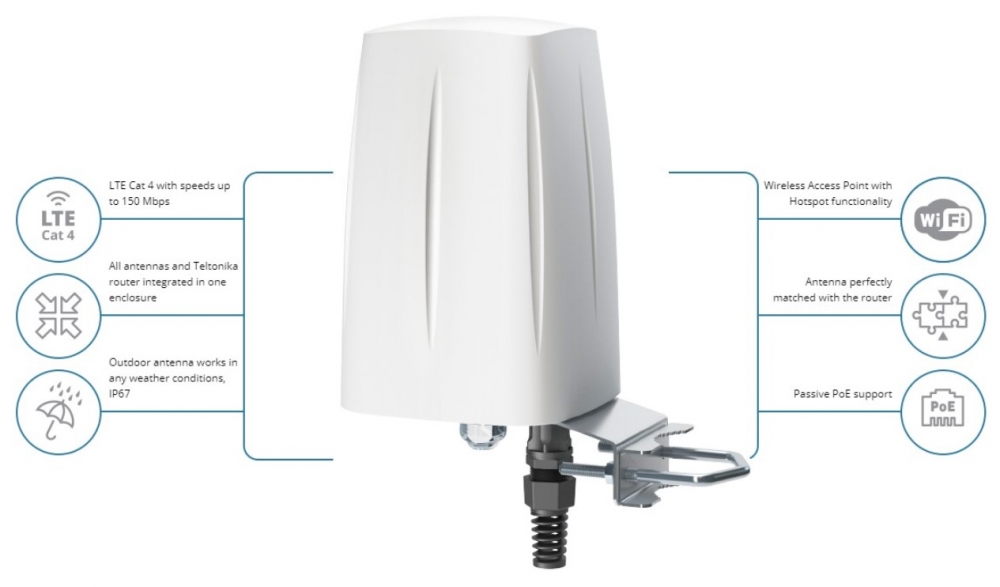

QuRouter 240S ir rentabls un jaudīgs āra industriālais LTE Cat 4 un Wi-Fi maršrutētājs, kas paredzēts profesionālai lietošanai. Tas ir aprīkots ar daudzvirzienu LTE un Wi-Fi antenām. Maršrutētājs nodrošina augstu veiktspēju kritiski svarīgiem mobilajiem sakariem vidē ar skarbiem laikapstākļiem, kur nepieciešams plašs darba temperatūru diapazons. Aprīkots ar ārēju SIM kartes turētāju.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
2G (GSM), 3G (UMTS), 4G (LTE)
LTE kategorija
Cat4 - 150Mbps/50Mbps
FDD LTE frekvenču joslas
1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
TDD LTE frekvenču joslas
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM kartes slots
Micro-SIM
Bezvadu tīkls
Standarti
802.11b/g/n
Caurlaidspēja 2.4GHz joslā
150 Mbps
Antena
Antenas dizains
Kupola
Bezvadu antenas frekvences diapazons un pastiprinājums
2.40 - 2.50 (GHz) 6 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.96 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Mobilās antenas pastiprinājums
2 dBi, 4 dBi
Stara platums
360 °
Polarizācija
Vertikālā
VSWR
< 1.7
Pretestība
50 Ω
Interfeisi
RJ45 porti
(1) 100 Mbps
Pārvaldīšana
Ethernet
Sistēmas specifikācija
Chipset
Quad-core ARM Cortex A7, 717 MHz
RAM atmiņas apjoms
64 MB
Iebūvētās atmiņas apjoms
16 MB
Elektroapgāde
Enerģijas veids
24V pasīvā PoE
Enerģijas padeve
Ārējais AC/DC adapteris
Atbalstītais ieejas spriegums
9 - 30 V DC
Maksimālais enerģijas patēriņš
5 W
Barošanas savienotājs
4-pin, 3 mm
Fiziskie parametri
Krāsa
Balts
Materiāls
Cinkots tērauds, Alumīnijs, ABS plastmasa
Aizsardzība pret mitrumu un putekļiem
IP67

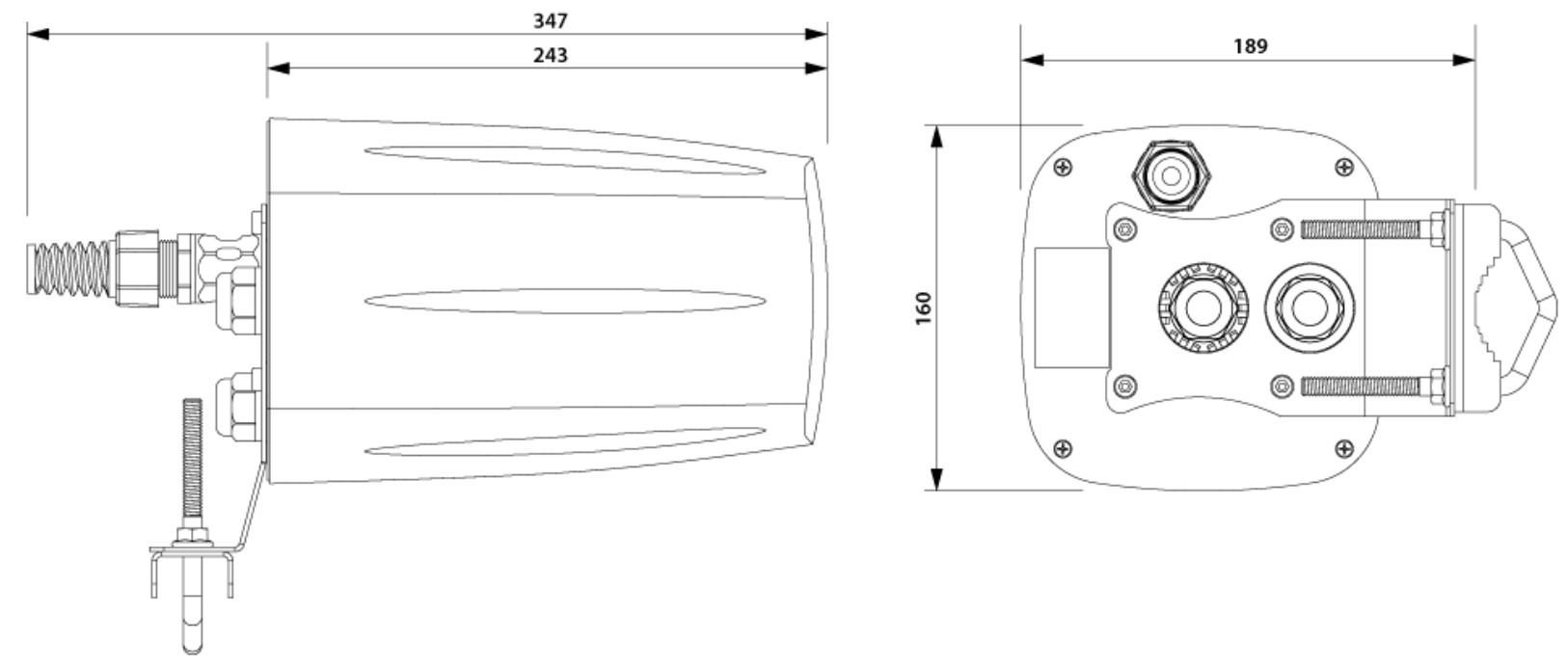

Izmēri
160 x 160 x 240 mm
Svars
1.5 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
