Zīmols
Ražotāja daļas nr
AX11M
Garantija
?
24 mēneši
EAN numurs
5907772035139

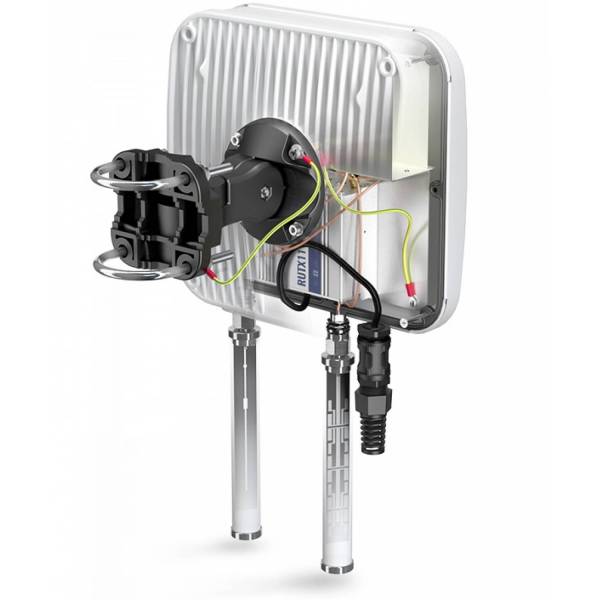

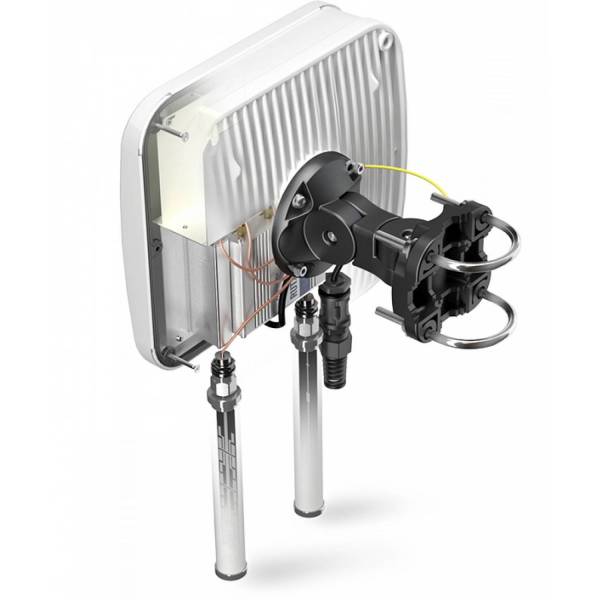

QuMax antena RUTX11 iekārtai
ir noliktavā
?
134.14 €
134.14 €
Preces apraksts

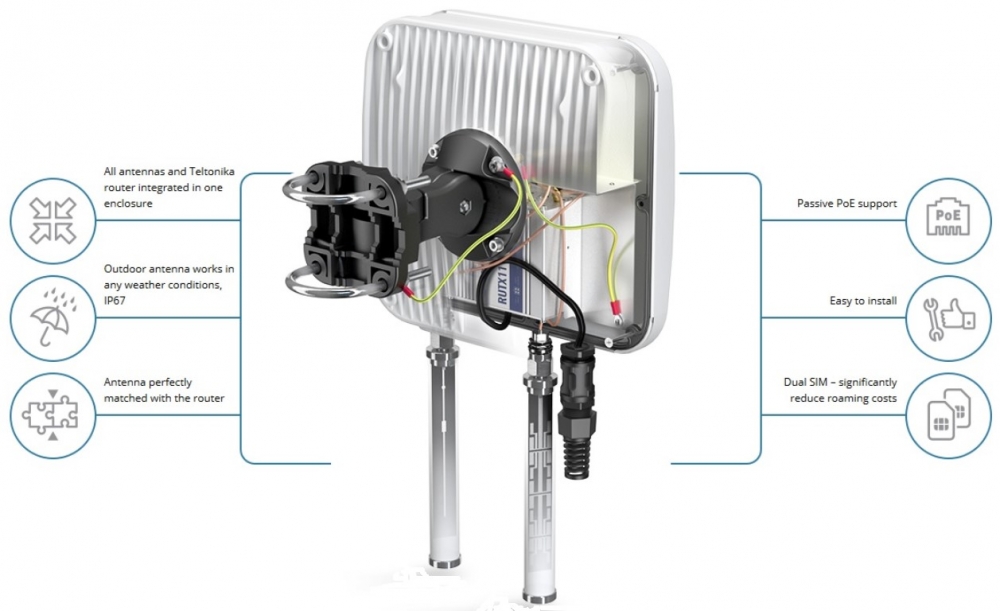

QuMAX piedāvā jaudīgāko virziena LTE antenu no visām QuWireless antenām. Tā paredzēta savienojumiem ar bāzes staciju lielā attālumā. QuMAX ir izstrādāts, lai uzstādītu maršrutētāju Teltonika RUTX11 vienā korpusā, kas atbilst IP67 standartam. Šī antena ir optimāla izvēle stacionārām instalācijām industriālā vidē. Ierīcē ir iebūvēta arī GPS antena, Bluetooth antena un ārtelpu visvirzienu Wi-Fi antena, kas darbojas 2,4 un 5 GHz frekvenču joslās.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
4G (LTE)
Antena
Antenas dizains
Paneļa
Bezvadu antenas frekvences diapazons un pastiprinājums
2.40 - 2.50 (GHz) 6 (dBi), 4.70 - 6.00 (GHz) 7 (dBi)
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.2 - 2.7 (GHz) 6 (dBi)
Mobilās antenas pastiprinājums
4 dBi, 5 dBi, 6 dBi
Stara platums
90 ° Vertikāli, 90 ° Horizontāli
Polarizācija
Vertikālā
VSWR
< 2
Pretestība
50 Ω
Fiziskie parametri
Krāsa
Balts
Materiāls
Alumīnijs, ABS plastmasa, Stikla šķiedra, Politetrafluoretilēns
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
272 x 276 x 96 mm
Svars
1.8 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
