Zīmols
Ražotāja daļas nr
AT100MO
Garantija
?
24 mēneši
EAN numurs
5907772035993

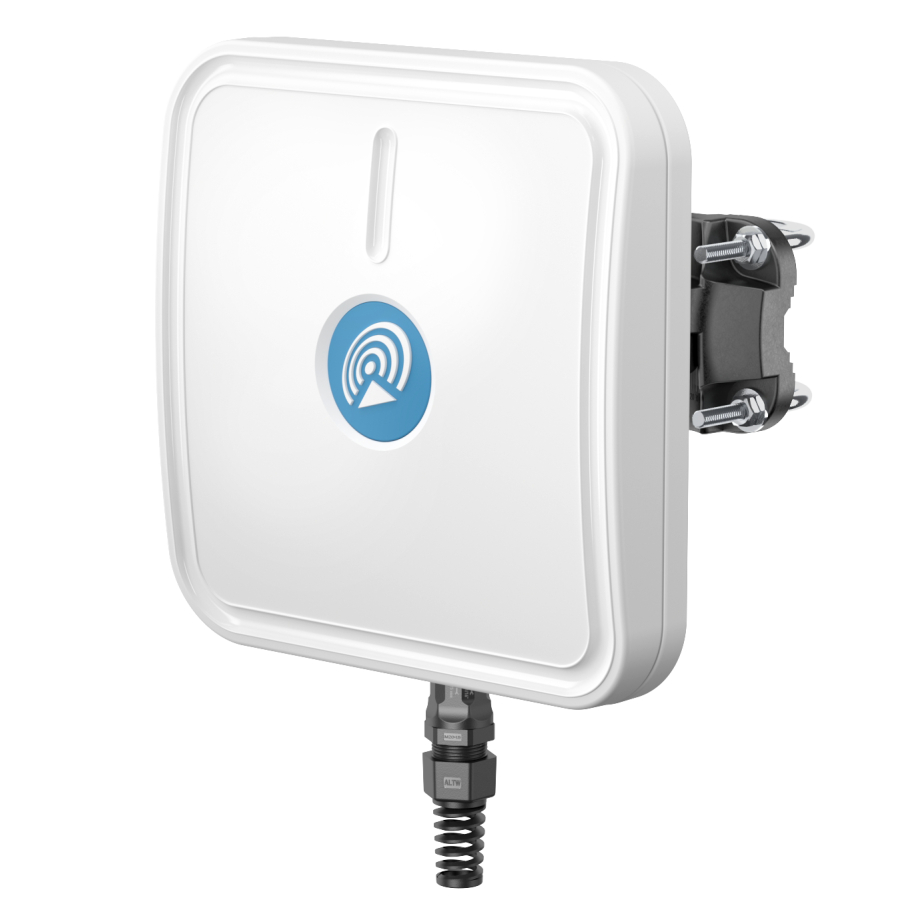

QuMax Omni antena TCR100 iekārtai
ir noliktavā
?
98.18 €
98.18 €
Preces apraksts

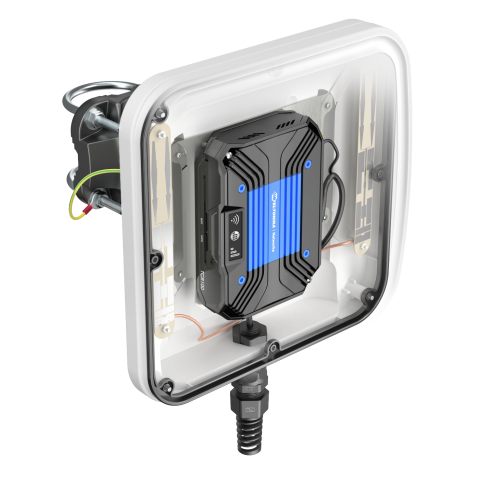

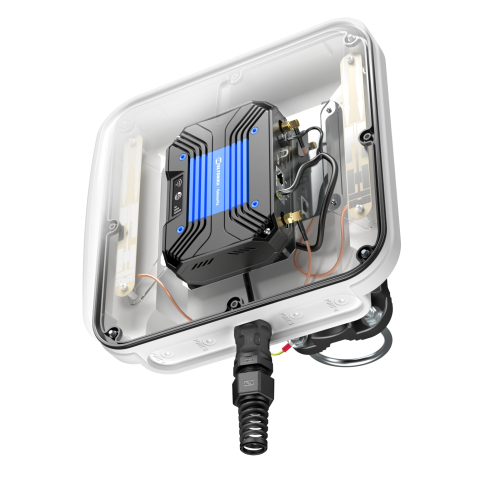

QuMax Omni universālā antena Teltonika TCR100 maršrutētājam ir ideāla āra antena mobilajām un stacionārajām iekārtām, piemēram, rūpnieciskos objektos, sabiedriskajos uzņēmumos, videonovērošanas sistēmās, jahtās, laivās, kempingos utt. Ierīce ir aprīkota ar iebūvētu omni LTE antenu. Izmantojot TCR100 ar QuMax Omni antenu, jūs saņemat integrētu komplekso risinājumu ar iebūvētu maršrutētāju un daudzjoslu antenu vienā korpusā. Pateicoties pret laikapstākļiem noturīgajam IP67 korpusam, QuMax Omni antena darbojas jebkuros laikapstākļos.
Atbalstītās LTE joslas: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
4G (LTE)
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.96 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.5 - 2.7 (GHz) 6 (dBi)
Mobilās antenas pastiprinājums
4 dBi, 5 dBi, 6 dBi
Stara platums
360 °
Polarizācija
Vertikālā
Pretestība
50 Ω
Konnektori
Ethernet savienotājs
RJ45
Fiziskie parametri
Krāsa
Balts
Materiāls
Alumīnijs, Stikla šķiedra, Politetrafluoretilēns
Aizsardzība pret mitrumu un putekļiem
IP67

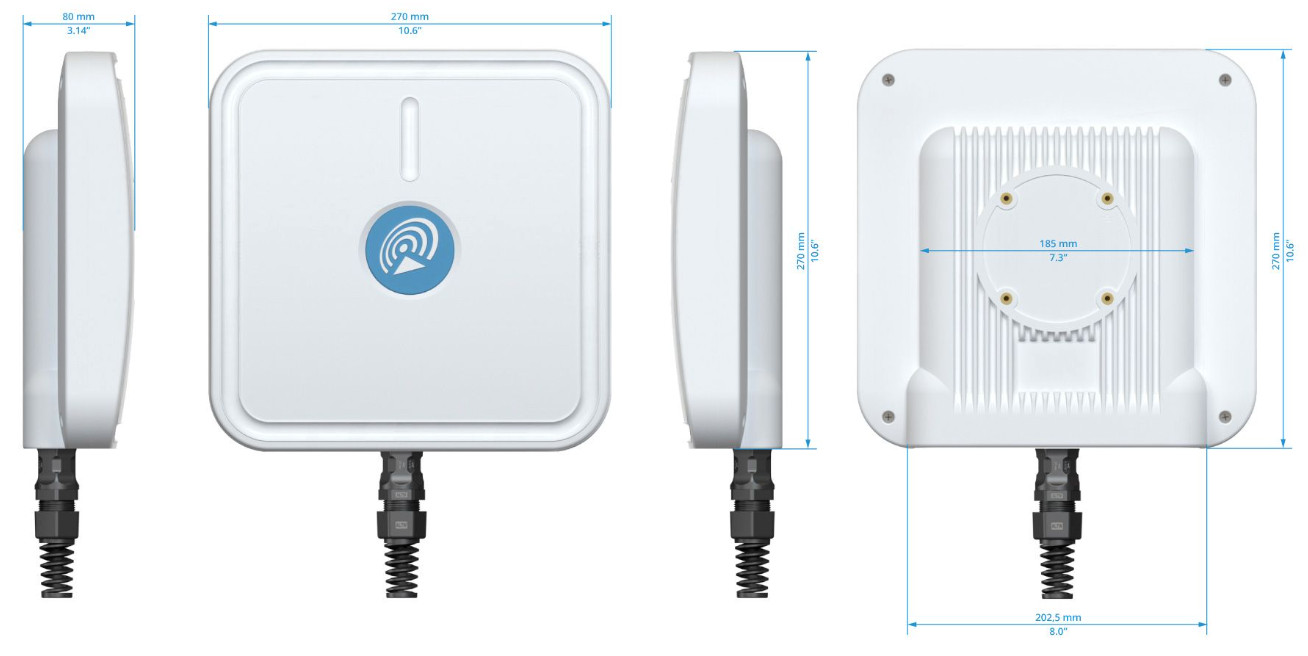

Izmēri
272 x 276 x 80 mm
Svars
1.8 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Sienas stiprinājums, Griestu stiprinājums, Staba stiprinājums
