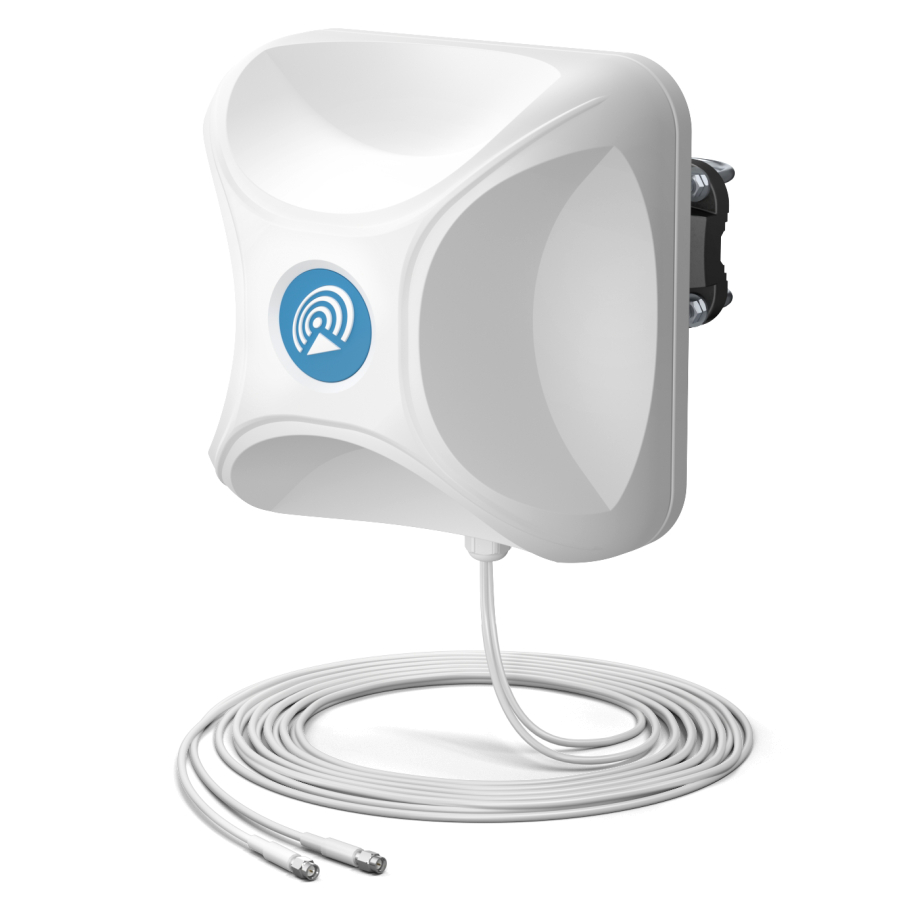

QuPanel 5G/LTE Global MIMO 2x2, 5m
jaunums
jaunums
ir noliktavā
?
171.84 €
171.84 €
Pieejamas preces variācijas
Preces apraksts
QuPanel 5G/LTE Global MIMO 2x2 ir virzīta platjoslas 5G ārtelpu antena. Tā ir paredzēta galvenokārt LTE/ 5G /3G/ 2G ierīcēm, kurām nepieciešama augsta savienojuma efektivitāte. Antena aptver daudzas LTE joslas, tostarp jauno paplašināto LTE 71. joslu, ar frekvencēm: 600 - 6000 MHz. Antenu var uzstādīt kā klienta ierīci uz staba vai sienas ar kronšteina palīdzību. Tā ir ideāli piemērota lietošanai ar visiem rūpnieciskajiem un sadzīves LTE modemiem un 2x2 maršrutētājiem, piemēram: Teltonika, DIGI, Mikrotik, Robustel, Cisco u. c.
Atbalstītās LTE/4G GSM joslas (617-960 MHz): 5, 6, 8, 12, 13, 14, 17, 18, 19, 20, 26, 27, 28, 29, 44, 67, 68, 71, 85, n81, n82, n83, n89.
Atbalstītās LTE/4G UMTS joslas (1710-2170 MHz): 1, 2, 3, 4, 9, 10, 25, 33, 34, 35, 36, 37, 39, 59, 62, n80, n84, n86, n95.
Atbalstītās LTE/4G WCS DARS joslas (2300-2400 MHz): 30, 40.
Atbalstītās LTE/4G joslas (2400-2700 MHz): 7, 38, 41, 53, 69, n90.
Atbalstītās LTE/5G joslas (3300-3800 MHz): 22, 42, 43, 48, 49, 52, n78.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
4G (LTE), 5G (NR)
Antena
Antenas dizains
Paneļa
Mobilās antenas frekvences diapazons un pastiprinājums
0.617 - 0.96 (GHz) 6 (dBi), 1.7 - 2.7 (GHz) 7 (dBi), 3.3 - 4.6 (GHz) 7 (dBi), 4.7 - 6.0 (GHz) 5.5 (dBi)
Stara platums
80 °
VSWR
< 3
Pretestība
50 Ω
Konnektori
RF savienotāji
(2) SMA Male
Fiziskie parametri
Materiāls
Alumīnijs, ABS plastmasa, Stikla šķiedra, Politetrafluoretilēns
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
486 x 292 x 106 mm
Svars
2.8 kg
Darbības temperatūra
-40 °C līdz 80 °C
Vide
Āra
Montāžas veids
Sienas stiprinājums, Staba stiprinājums
