Zīmols
Ražotāja daļas nr
ER-X-SFP
Garantija
?
24 mēneši
EAN numurs
0810354022203

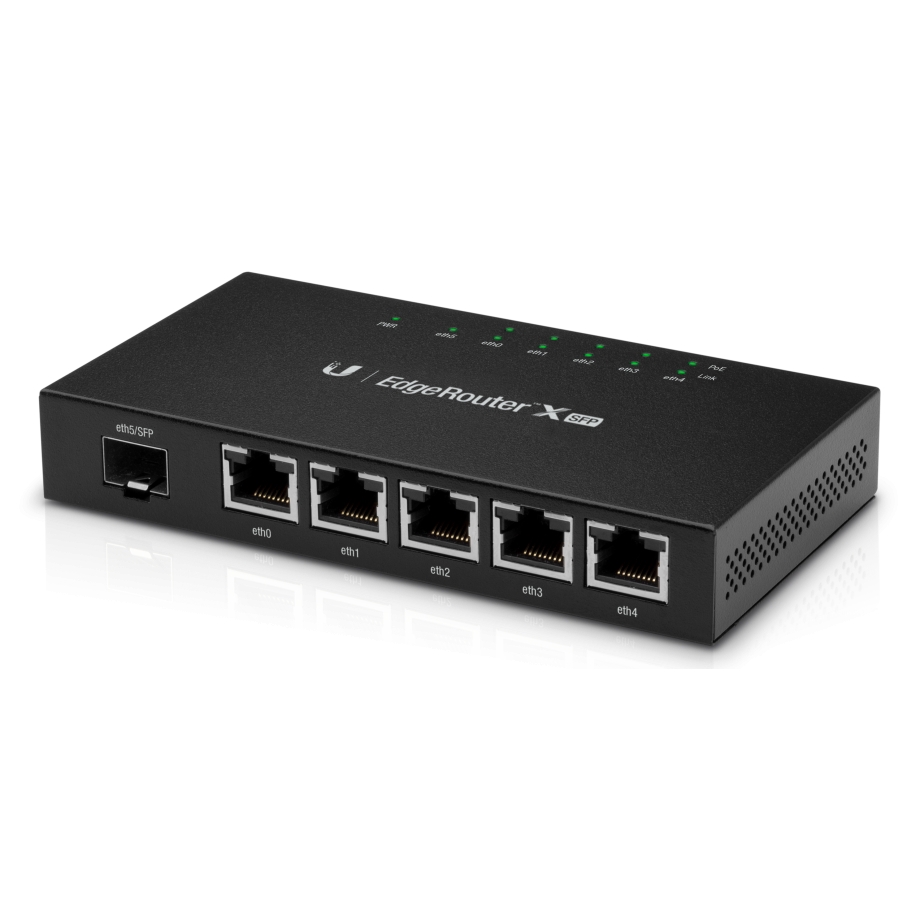

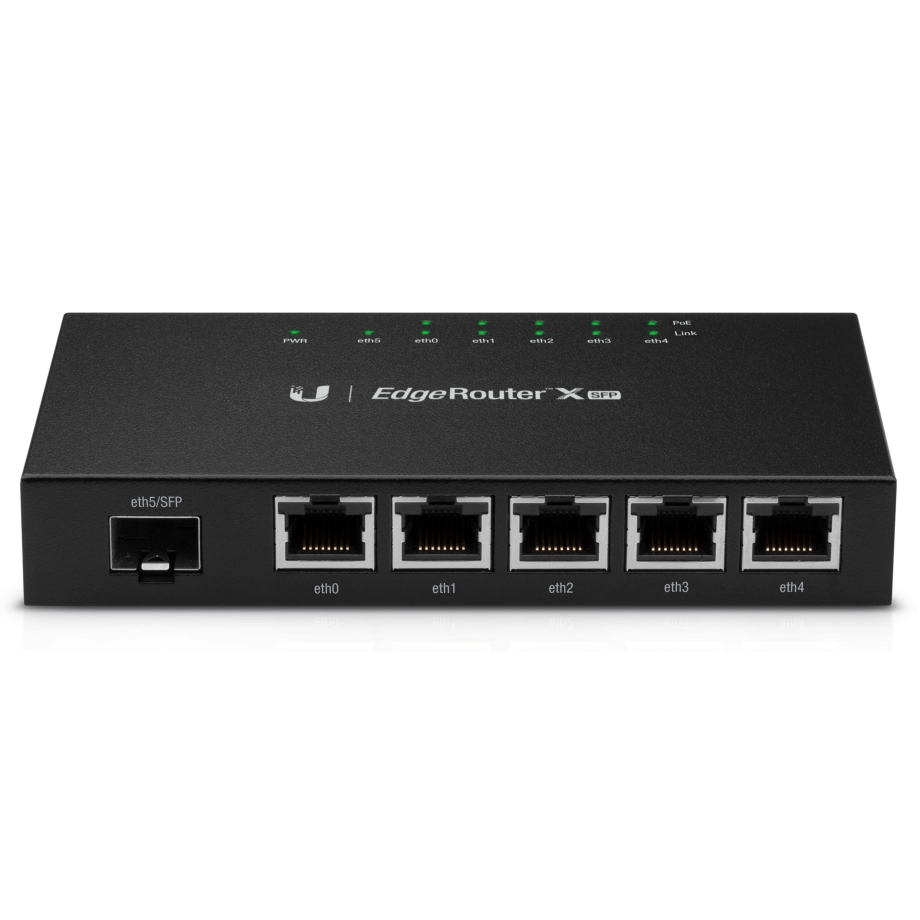

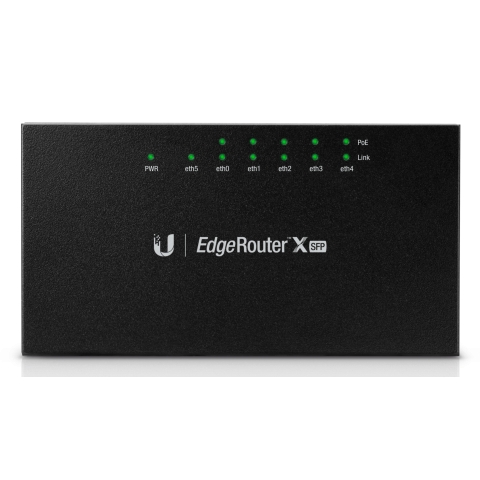

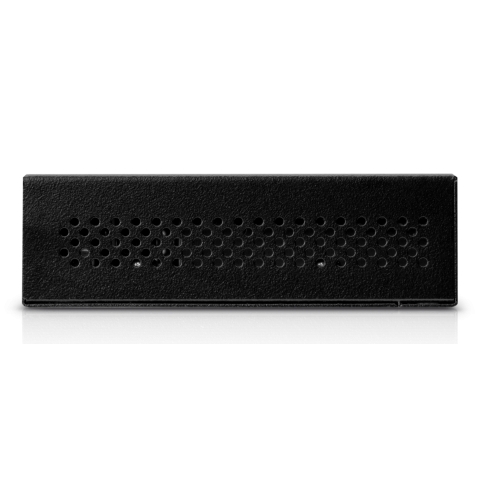

Ubiquiti EdgeRouter X SFP
Ubiquiti Elite Distributor
nav noliktavā
?
81.14 €
81.14 €
Ubiquiti Elite Distributor
Pieejamas preces variācijas
Pieejamas alternatīvas
Preces apraksts
Neliela lokālā tīkla organizēšanai birojā vai mājās.

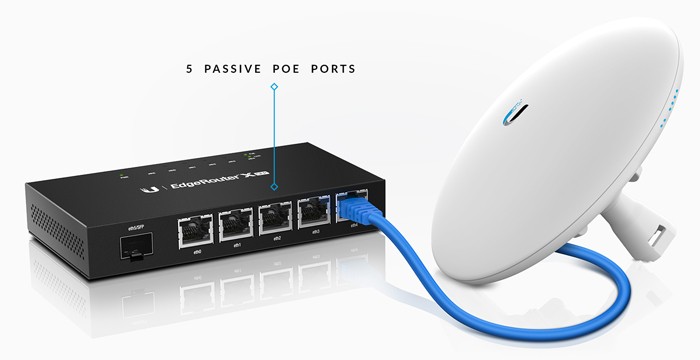

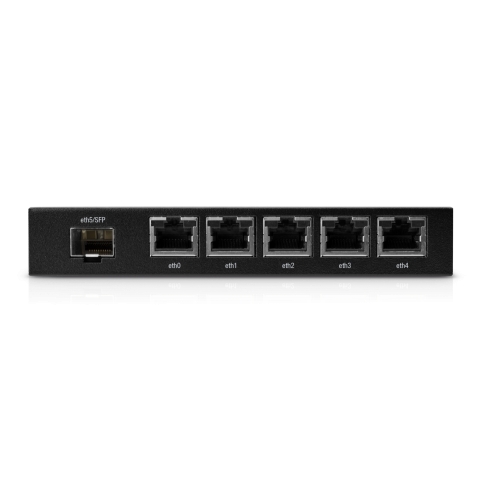

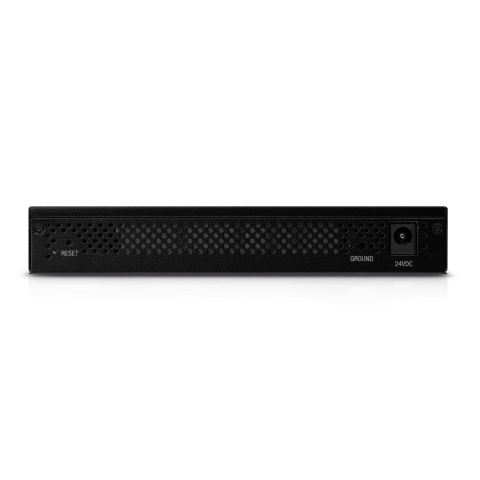

Fiziskais tīkla interfeiss EdgeRouter X SFP sastāv no 5 Gigabit Ethernet pieslēgvietām, kā arī viena slota SFP modulim. Tas ļauj maršrutētāju integrēt jebkurā tīkla struktūrā, tostarp optisko šķiedru tīklā. Svarīgi atzīmēt, ka šis modelis atbalsta pasīvo PoE 24V - tas ļauj barot līdz pat 5 pieslēgtiem klientiem. Tajā pašā laikā pašu maršrutētāju var barot no 220 V, izmantojot 24 V līdzstrāvas savienotāju, izmantojot komplektā iekļauto adapteri.
EdgeRouter X SFP ir aprīkots ar savai klasei efektīvu aparatūru, tostarp divkodolu procesoru ar taktātrumu 880 MHz un 256 MB RAM. Tas viss ļāva nodrošināt joslas platumu līdz pat 1 Gbit/s, kas ir pietiekams normālai tīkla darbībai pat maksimālas slodzes laikā.
Gigabitu savienojamība

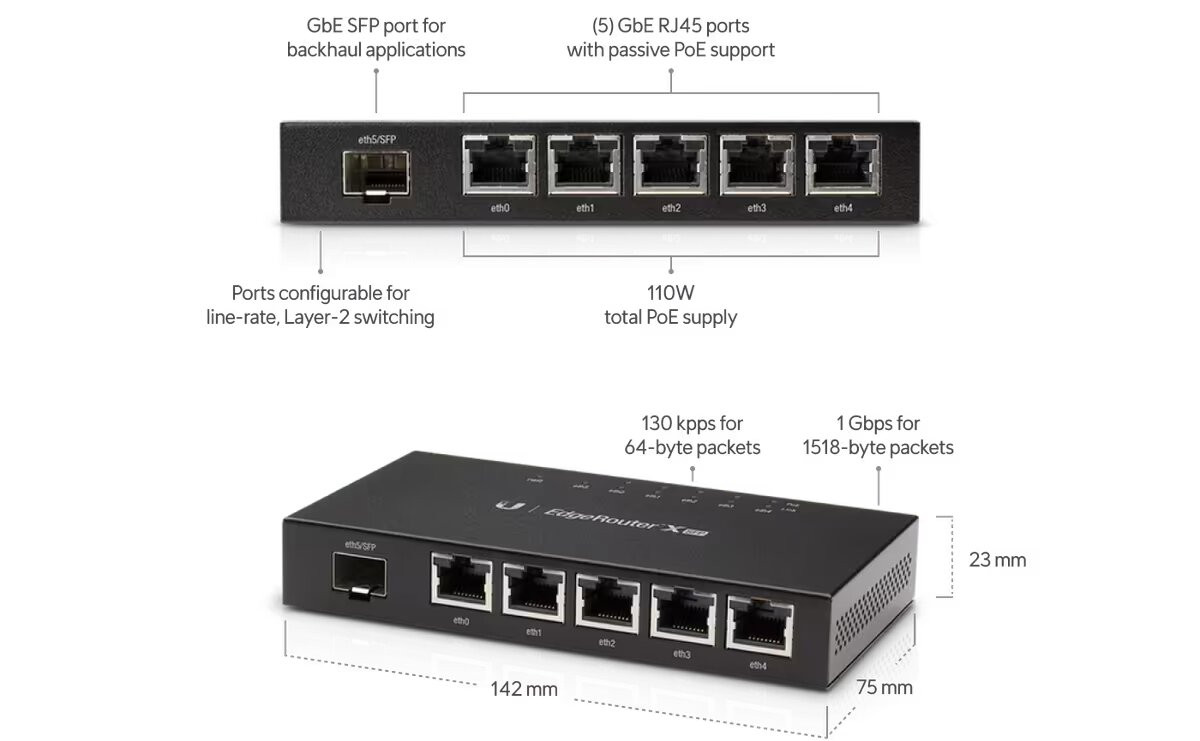

EdgeRouter™ X SFP ir piecas neatkarīgas Gigabit RJ45 pieslēgvietas un viena Gigabit SFP pieslēgvieta - visas sešas ir konfigurējamas komutācijai.
Optiskais SFP datu pārraides nodrošināšanai
Gigabitu SFP ports nodrošina optiskās šķiedras savienojamību, lai atbalstītu atvilces maršrutēšanas lietojumprogrammas operatoru klases tīklos.

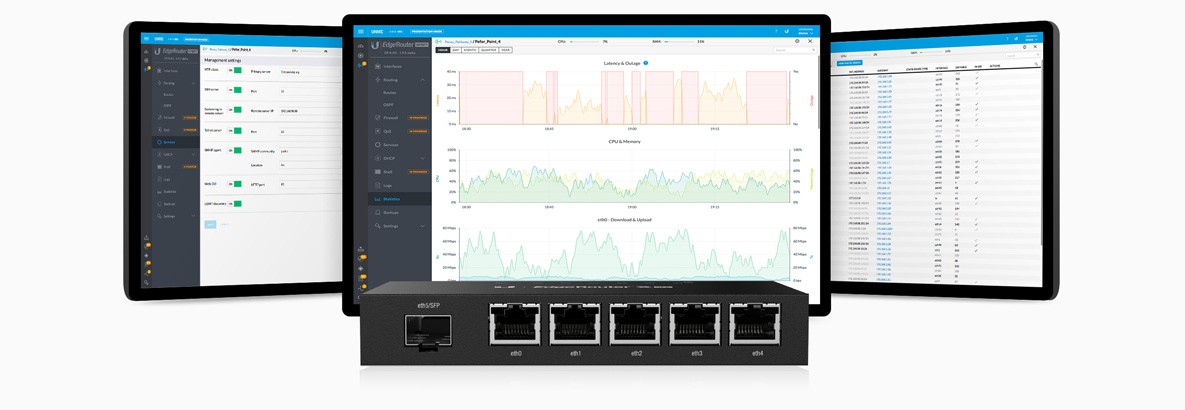

Centralizēta pārvaldība
EdgeRouter™ X SFP atbalsta un pārvalda UNMS™ - visaptveroša lietojumprogramma ar intuitīvu lietotāja interfeisu. Viena pārvaldības sistēma kontrolē reģistrētās EdgeMAX® ierīces vairākās vietās.
Salīdzināt ar līdzīgiem produktiem
| Ethernet porti | ||||||
| 5 x 1 Gbps | 3 x 1 Gbps | 10 x 1 Gbps | 6 x 1 Gbps | 1 x 1 Gbps | 5 x 1 Gbps | |
| PoE standarti | ||||||
| 5 x Passive PoE | 1 x Passive PoE | 5 x Passive PoE | 1 x Passive PoE | |||
| SFP porti | ||||||
| 1 x 1G SFP | 1 x 1G SFP | 2 x 1G SFP | 1 x 1G SFP | 8 x 10G SFP+ | ||
| USB Ports | ||||||
| 1 x USB-A 3.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | |||
| Chipset | ||||||
| Dual-Core 880 MHz, MIPS1004Kc | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | MIPS64 16 Core 1.8 GHz | Dual-Core 880 MHz, MIPS1004Kc | |
| RAM atmiņas apjoms | ||||||
| 256 MB | 1 GB | 1 GB | 1 GB | 16 GB | 256 MB | |
| Iebūvētās atmiņas apjoms | ||||||
| 256 MB | 4 GB | 4 GB | 4 GB | 8 GB | 256 MB | |
| Maksimālais enerģijas patēriņš | ||||||
| 55 W | 13 W | 24 W | 90 W | 100 W | 5 W | |
| Montāžas veids | ||||||
| Tabletop | Tabletop | Tabletop | RackMount, Wall Mount, Tabletop | RackMount | Tabletop | |
| Ethernet porti | 5 x 1 Gbps | 3 x 1 Gbps | 10 x 1 Gbps | 6 x 1 Gbps | 1 x 1 Gbps | 5 x 1 Gbps |
| PoE standarti | 5 x Passive PoE | 1 x Passive PoE | 5 x Passive PoE | 1 x Passive PoE | ||
| SFP porti | 1 x 1G SFP | 1 x 1G SFP | 2 x 1G SFP | 1 x 1G SFP | 8 x 10G SFP+ | |
| USB Ports | 1 x USB-A 3.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | ||
| Chipset | Dual-Core 880 MHz, MIPS1004Kc | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | MIPS64 16 Core 1.8 GHz | Dual-Core 880 MHz, MIPS1004Kc |
| RAM atmiņas apjoms | 256 MB | 1 GB | 1 GB | 1 GB | 16 GB | 256 MB |
| Iebūvētās atmiņas apjoms | 256 MB | 4 GB | 4 GB | 4 GB | 8 GB | 256 MB |
| Maksimālais enerģijas patēriņš | 55 W | 13 W | 24 W | 90 W | 100 W | 5 W |
| Montāžas veids | Tabletop | Tabletop | Tabletop | RackMount, Wall Mount, Tabletop | RackMount | Tabletop |
Tehniskās specifikācijas / Datu lapa
