Zīmols
Ražotāja daļas nr
PR1US450
Garantija
?
24 mēneši
EAN numurs
0708747440775
Teltonika kompakta stūra mobilā antena 5dBi
Certified Teltonika Engineers
Official Teltonika Distributor
ir noliktavā
?
5.34 €
5.34 €
Noliktavā nepietiek preces. Lūdzu, reģistrējieties, lai noformētu iepriekšpasūtījumu.
Certified Teltonika Engineers
Official Teltonika Distributor
Preces apraksts

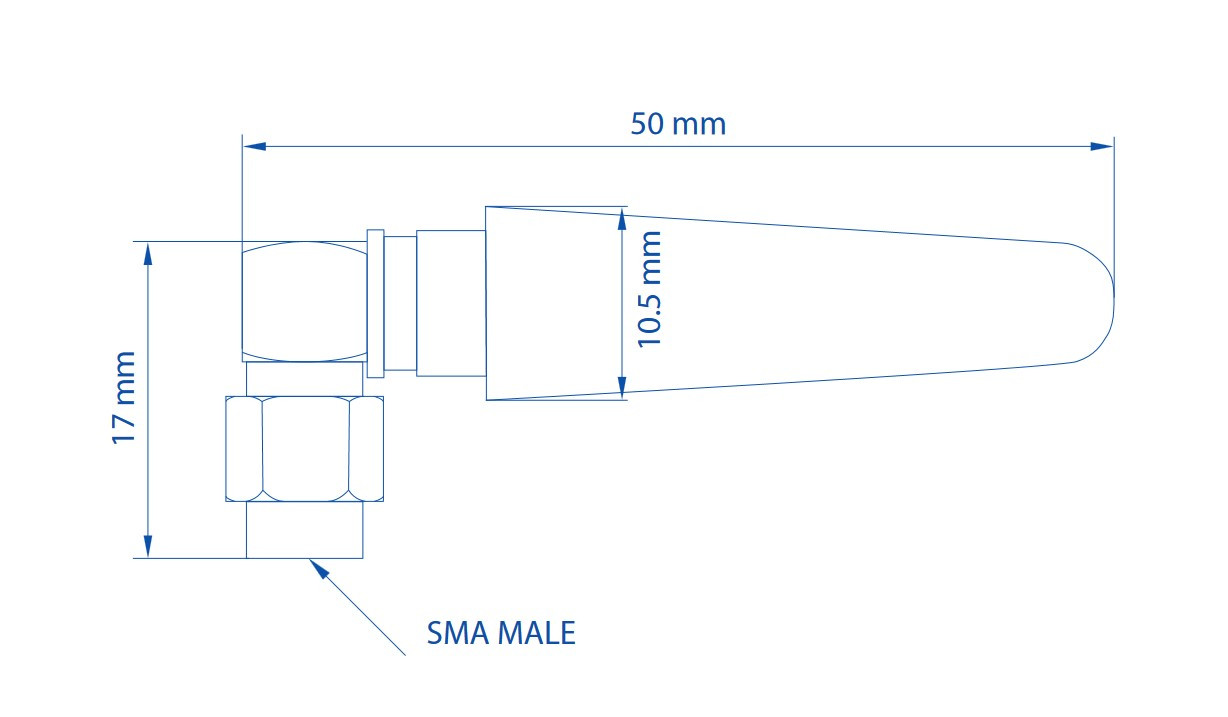

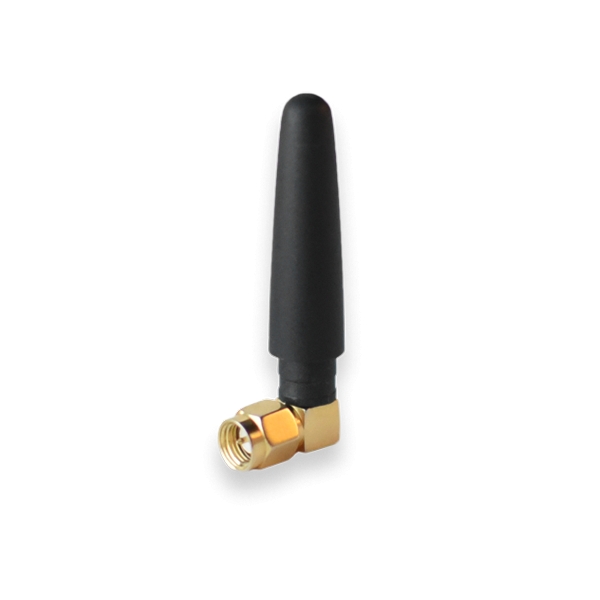

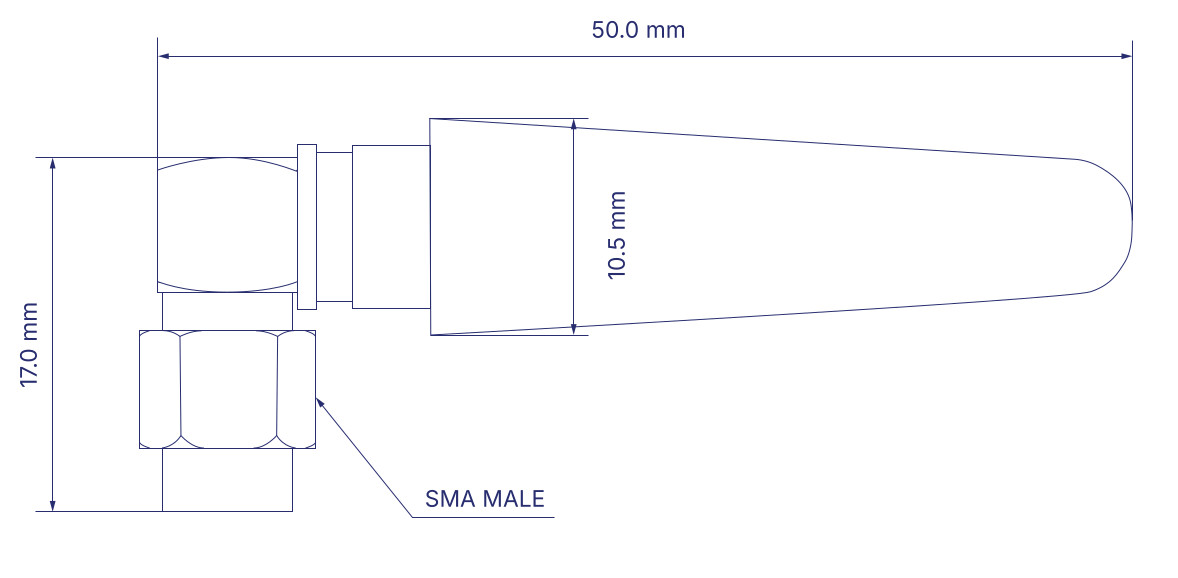

PR1US450 ir leņķveida kompaktā mobilā antena, kas darbojas 700-2700 MHz frekvenču diapazonā ar 5 dBi pastiprinājuma koeficientu. PR1US450 antenai ir lineāra polarizācija un 50 omu ieejas pretestība. Antena ir 50 mm gara un aprīkota ar taisnu SMA Male savienotāju.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Antena
Antenas dizains
Omni
Mobilās antenas frekvences diapazons un pastiprinājums
0.700 - 2.700 (GHz) 5 (dBi)
Mobilās antenas pastiprinājums
5 dBi
Polarizācija
Lineāra
VSWR
< 1.8
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) SMA Male
Fiziskie parametri
Krāsa
Melns
Izmēri
50 x 17 x Ø10.5 mm
