Zīmols
Ražotāja daļas nr
TSW212
Garantija
?
24 mēneši
EAN numurs
4779051841370
Teltonika TSW212 pārvaldāms komutators
Certified Teltonika Engineers
Official Teltonika Distributor
nav noliktavā
?
123.42 €
123.42 €
Noliktavā nepietiek preces. Lūdzu, reģistrējieties, lai noformētu iepriekšpasūtījumu.
Piegāde noliktavā?
?
nav informācijas par pieejamību
%20-%20https://sketch.com%20--%3e%3ctitle%3eprofile_ico%3c/title%3e%3cdesc%3eCreated%20with%20Sketch.%3c/desc%3e%3cg%20id='elements'%20stroke='none'%20stroke-width='1'%20fill='none'%20fill-rule='evenodd'%3e%3cg%20id='svg_elements'%20transform='translate(-449.000000,%20-152.000000)'%20fill='%23131515'%3e%3cpath%20d='M459.293251,164.029275%20C464.901425,164.029275%20469.293251,166.657751%20469.293251,170.012711%20L469.293251,170.012711%20L469.293251,171.011748%20C469.293251,171.556855%20468.849156,172%20468.302879,172%20C467.756603,172%20467.312508,171.556855%20467.312508,171.011748%20L467.312508,171.011748%20L467.312508,170.012711%20C467.312508,167.841105%20463.640863,166.00676%20459.293251,166.00676%20C454.946621,166.00676%20451.273993,167.841105%20451.273993,170.012711%20L451.273993,170.012711%20L451.273993,171.011748%20C451.273993,171.556855%20450.829898,172%20450.283622,172%20C449.738328,172%20449.293251,171.556855%20449.293251,171.011748%20L449.293251,171.011748%20L449.293251,170.012711%20C449.293251,166.657751%20453.686059,164.029275%20459.293251,164.029275%20Z%20M458.603921,152.053677%20C459.091246,151.982108%20459.584467,151.982108%20460.068845,152.053677%20C461.136835,152.211523%20462.104609,152.697806%20462.869002,153.459584%20C463.631431,154.220381%20464.118757,155.187064%20464.276941,156.252769%20C464.680753,158.970463%20462.793349,161.510702%20460.068845,161.91365%20C459.822235,161.949926%20459.572677,161.968553%20459.327049,161.968553%20C458.255129,161.968553%20457.229387,161.629332%20456.360847,160.986184%20C455.28991,160.194013%20454.592327,159.032228%20454.395825,157.714559%20C453.992013,154.995885%20455.879417,152.456625%20458.603921,152.053677%20Z%20M459.336874,153.976259%20C459.189498,153.976259%20459.041138,153.987044%20458.894744,154.008613%20C458.099892,154.126262%20457.397397,154.546857%20456.916949,155.192947%20C456.437483,155.839036%20456.238034,156.631207%20456.355935,157.425338%20C456.473836,158.219469%20456.894351,158.920462%20457.541826,159.398901%20C458.187336,159.877341%20458.978258,160.074403%20459.779004,159.958715%20C461.422746,159.715574%20462.562459,158.183194%20462.317814,156.54297%20C462.122294,155.222359%20461.101465,154.204695%20459.779004,154.008613%20C459.633593,153.987044%20459.484251,153.976259%20459.336874,153.976259%20Z'%20id='profile_ico'%3e%3c/path%3e%3c/g%3e%3c/g%3e%3c/svg%3e){kind=small}
Saņemt īpašu cenu
Certified Teltonika Engineers
Official Teltonika Distributor
Pieejamas alternatīvas
Preces apraksts
Universāls pārvaldāms tīkla komutators
TSW212 ir jaudīgs 2. līmeņa pārvaldāms komutators ar paplašinātām 3. līmeņa funkcijām, kas nodrošina efektīvāku tīkla vadību. Šis universālais komutators atbilst industriālās infrastruktūras prasībām, nodrošinot stabilu savienojamību, plašas vadības iespējas un nemainīgu uzticamību.
Nevainojama integrācija
TSW212 viegli integrējas dažādās rūpnieciskās automatizācijas sistēmās, pateicoties plaša nozares protokolu klāsta atbalstam, ieskaitot Ethernet/IP, PROFINET un MRP (Media Redundancy Protocol). Šāda savietojamība nodrošina efektīvu datu apmaiņu starp ierīcēm un dod iespēju veikt reāllaika saziņu svarīgākajos rūpnieciskajos procesos.
Uzticama savienojamība

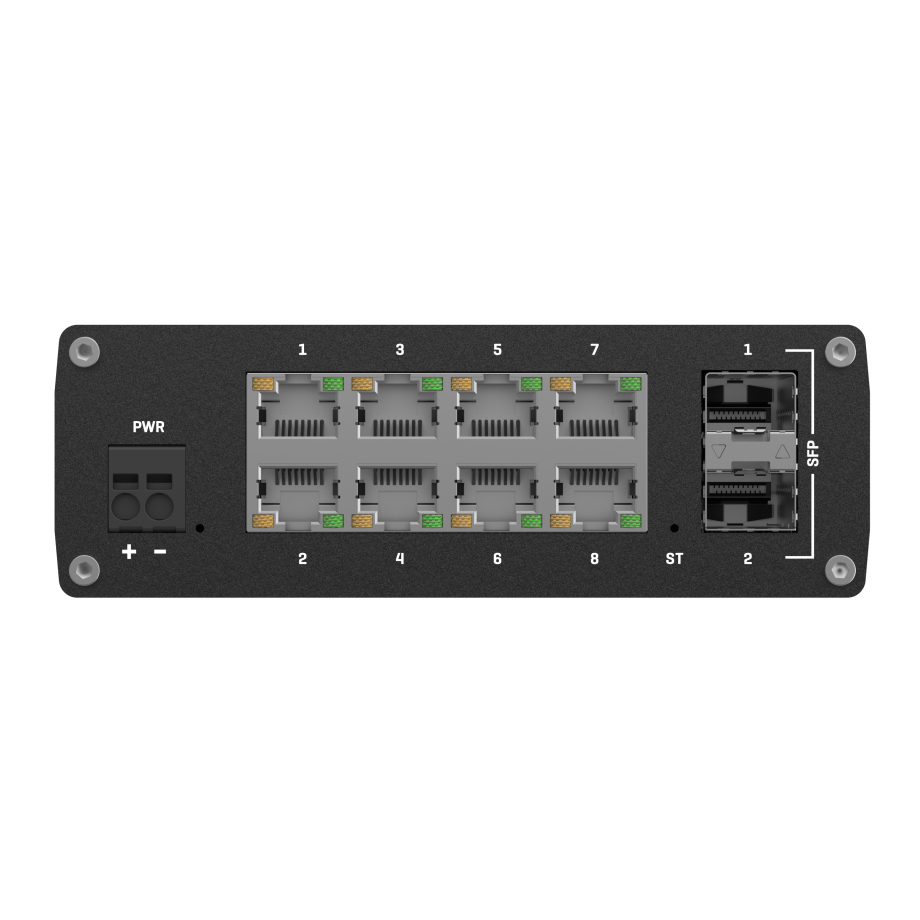

TSW212 ir aprīkots ar astoņiem Gigabit Ethernet portiem un diviem SFP portiem, kas nodrošina uzticamu savienojamību tīkla ierīcēm ar augstu caurlaidspēju. SFP porti atbalsta optisko šķiedru savienojamību, kas padara TSW212 par ideālu risinājumu attālo ierīču pieslēgšanai vai tīkla paplašināšanai lielos attālumos.
Izturīga konstrukcija
TSW212 ir izpildīts izturīgā alumīnija korpusā un spēj izturēt skarbus ekspluatācijas apstākļus, kas raksturīgi rūpnieciskiem objektiem. Komutators var darboties ekstremālās temperatūrās no -40 °C līdz +75 °C un izturēt spēcīgas vibrācijas. Turklāt integrētais DIN sliedes stiprinājums vienkāršo uzstādīšanu un nodrošina stabilu montāžu.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Sistēmas specifikācija
RAM atmiņas apjoms
128 MB
Iebūvētās atmiņas apjoms
16 MB
Elektroapgāde
Enerģijas veids
AC/DC adapteris
Enerģijas padeve
Ārējais AC/DC adapteris
Atbalstītais ieejas spriegums
7 - 57 V DC
Maksimālais enerģijas patēriņš
6 W
Barošanas savienotājs
2-pin, 3 mm
Fiziskie parametri
Materiāls
Alumīnijs
Aizsardzība pret mitrumu un putekļiem
IP30
Izmēri
132 x 44.2 x 122.2 mm
Svars
0.615 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Iekštelpu
Montāžas veids
DIN sliede, Sienas stiprinājums, Galda virsma
Iepakojumā iekļauts
Ārējais barošanas bloks
Nav iekļauts
