Ražotāja daļas nr
US-24
Garantija
?
24 mēneši
EAN numurs
0810354024771

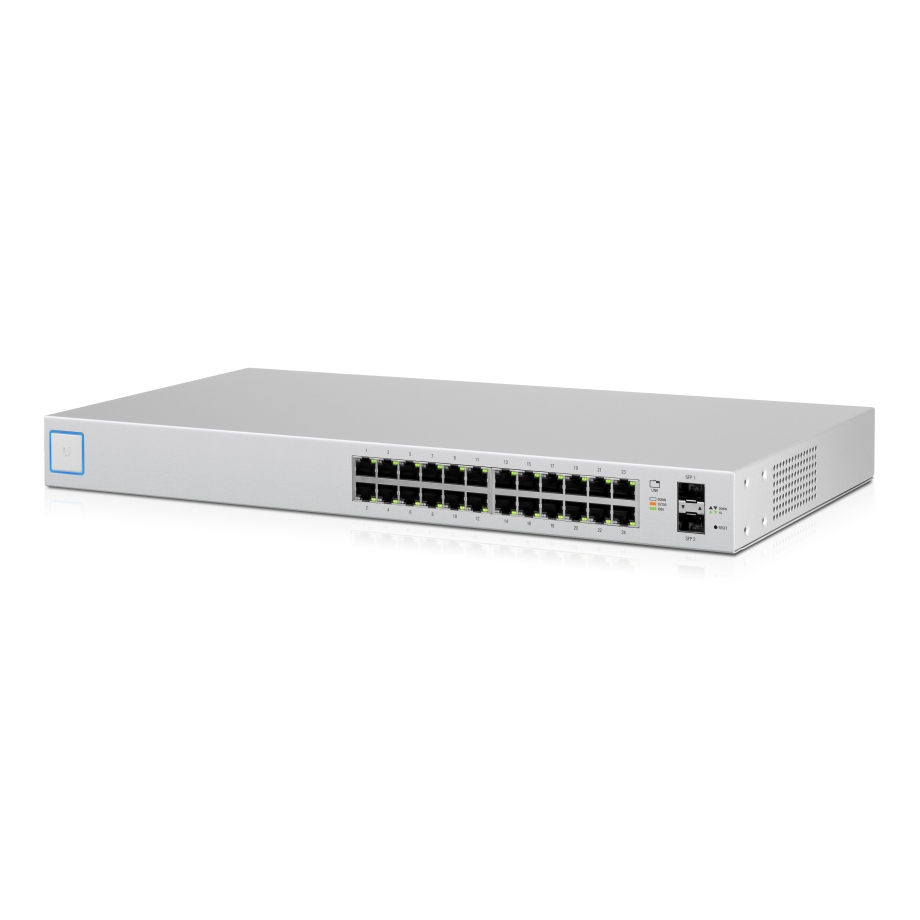

Switch Standard 24 (Gen1)
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Pieejamas alternatīvas
Preces apraksts

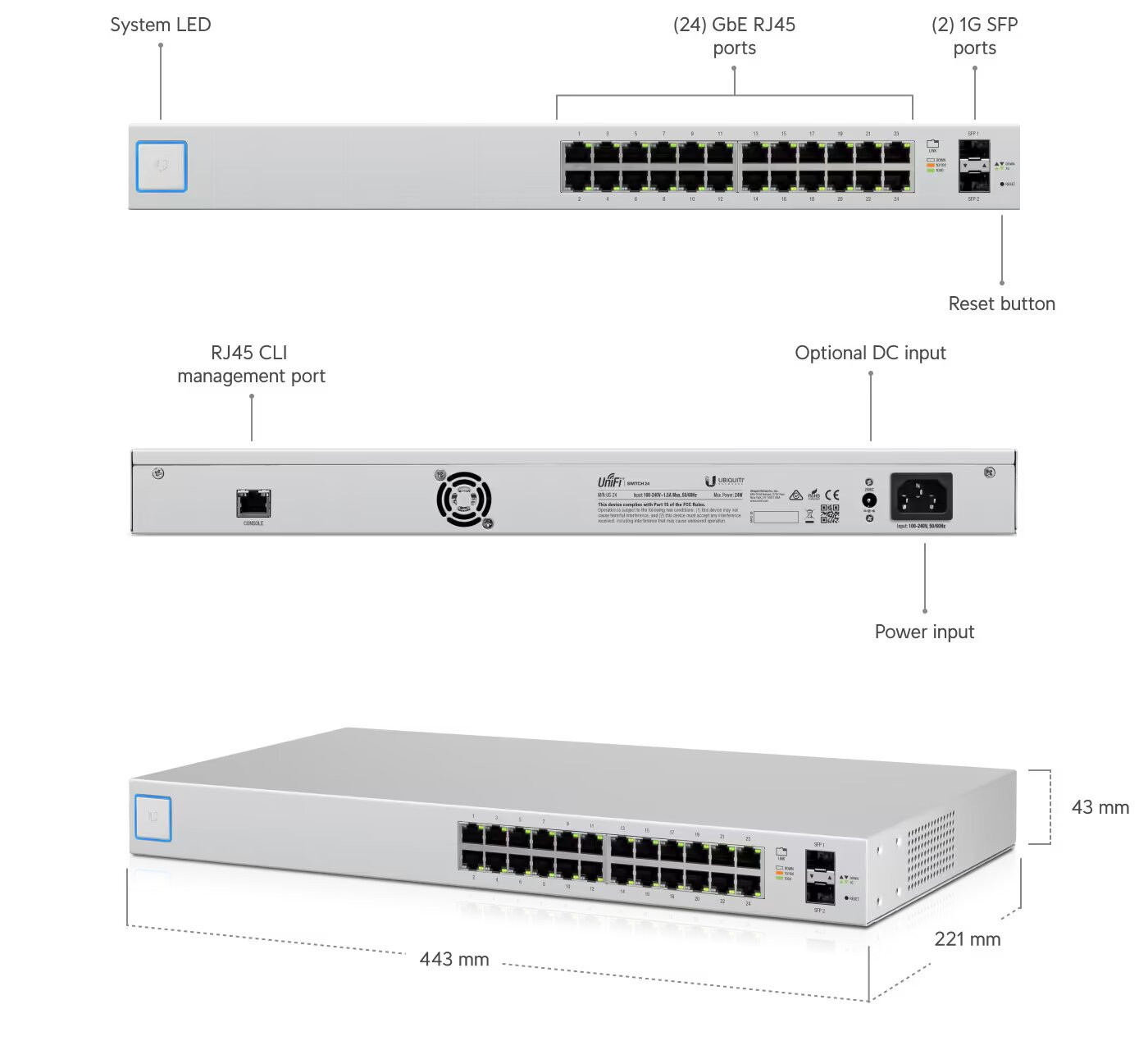

US-24 ir pilnībā pārvaldāms komutators bez ventilatora ar 24 GbE RJ45 portiem un diviem 1G SFP portiem. Universālais komutators US-24 nodrošina gigabitu savienojumus ar Ethernet ierīcēm, kā arī uzņēmumu klases optiskās šķiedras gigabitu savienojumus. Komutators piedāvā arī plašu 2. slāņa komutācijas protokolu klāstu, tostarp konkrētiem portiem pielāgotus režīmus (komutācija, spoguļošana vai agregācija), un ir aprīkots ar 1,3 collu LCM krāsaino skārienekrānu, kas attēlo galveno sistēmas un savienojumu informāciju. Šo komutatoru var arī uzraudzīt un konfigurēt no jebkuras vietas, izmantojot jaudīgās un intuitīvās UniFi Network tīmekļa un mobilās lietotnes.
Salīdzināt ar līdzīgiem produktiem
| Ethernet porti | ||||||
| 24 x 1 Gbps | 16 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps | |
| PoE standarti | ||||||
| 16 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | |||
| SFP porti | ||||||
| 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP | |
| Pārvaldīšana | ||||||
| Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | |
| Maksimālais enerģijas patēriņš | ||||||
| 25 W | 150 W | 250 W | 56 W | 500 W | 150 W | |
| Darbības temperatūra | ||||||
| -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 45 °C | |
| Izmēri | ||||||
| 443 x 43 x 221 mm | 443 x 43 x 221 mm | 485 x 43.7 x 285.4 mm | 443 x 43 x 286 mm | 485 x 43.7 x 374.6 mm | 235 x 43 x 204 mm | |
| Svars | ||||||
| 2.6 kg | 2.89 kg | 4.7 kg | 3.65 kg | 6.1 kg | 1.65 kg | |
| Montāžas veids | ||||||
| Montāža plauktā | Montāža plauktā, Sienas stiprinājums | Montāža plauktā | Montāža plauktā | Montāža plauktā | Sienas stiprinājums, Galda virsma | |
| Ethernet porti | 24 x 1 Gbps | 16 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps |
| PoE standarti | 16 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | ||
| SFP porti | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP |
| Pārvaldīšana | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
| Maksimālais enerģijas patēriņš | 25 W | 150 W | 250 W | 56 W | 500 W | 150 W |
| Darbības temperatūra | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 45 °C |
| Izmēri | 443 x 43 x 221 mm | 443 x 43 x 221 mm | 485 x 43.7 x 285.4 mm | 443 x 43 x 286 mm | 485 x 43.7 x 374.6 mm | 235 x 43 x 204 mm |
| Svars | 2.6 kg | 2.89 kg | 4.7 kg | 3.65 kg | 6.1 kg | 1.65 kg |
| Montāžas veids | Montāža plauktā | Montāža plauktā, Sienas stiprinājums | Montāža plauktā | Montāža plauktā | Montāža plauktā | Sienas stiprinājums, Galda virsma |
Tehniskās specifikācijas / Datu lapa
