Zīmols
Ražotāja daļas nr
AOLM2
Garantija
?
24 mēneši
EAN numurs
5907772035320
QuOmni LTE MIMO 2x2, 5m kabelis
Šī prece vairs netiek ražota.
Mēs iesakām izmantot zemāk norādīto produktu
Pieejamas alternatīvas
Preces apraksts

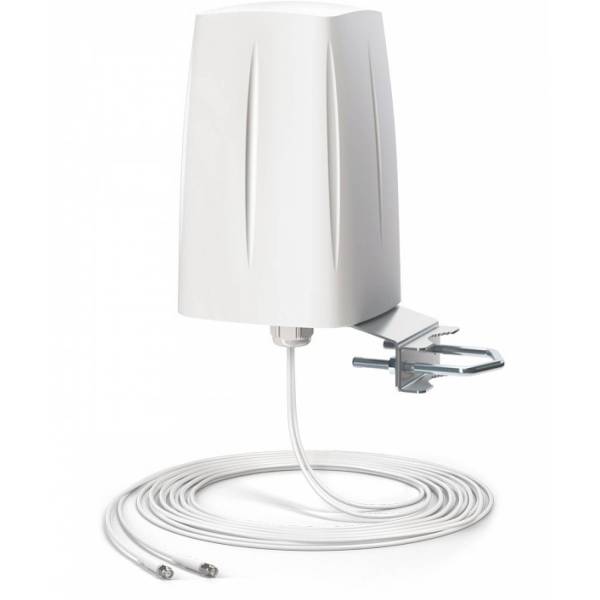

Visvirziena LTE MIMO 2x2 daudzjoslu antena
Visvirziena LTE MIMO 2x2 antena darbojas ar vertikālu polarizāciju un ir paredzēta LTE/ 3G/ 2G savienojumiem. Antenu var izmantot populārākajās LTE joslās (piemēram, 3,7,20), 694-2700 MHz frekvenču diapazonā. Šī antena ir paredzēta uzstādīšanai uz ēkām (uz staba vai sienas) kā klienta antena vai uz kustīgiem objektiem, piemēram, vilcieniem, autobusiem, kravas automašīnām, jahtām, laivām, lai saņemtu LTE/3G signālu. Saderīga ar Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 un citiem MIMO 2x2 LTE/3G/2G modemiem un maršrutētājiem.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
2G (GSM), 3G (UMTS), 4G (LTE)
Antena
Antenas dizains
Kupola
Mobilās antenas frekvences diapazons un pastiprinājums
0.694 - 0.960 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Stara platums
35 ° Vertikāli, 360 ° Horizontāli
Polarizācija
Vertikālā
Kabeļa garums
5 m
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(2) SMA Male
Fiziskie parametri
Krāsa
Balts
Materiāls
ABS plastmasa
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
240 x 160 x 160 mm
Svars
1.5 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
