QuSpot antena TRB500 iekārtām
ir noliktavā
?
158.80 €
158.80 €
Preces apraksts

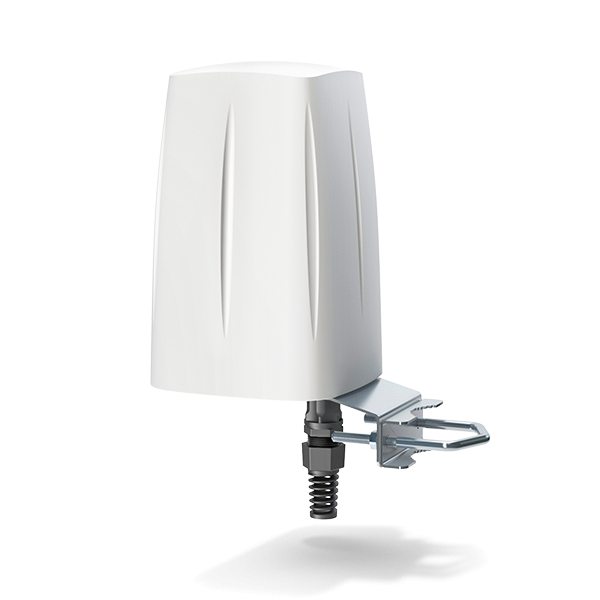

QuSpot for TRB500 ir ārtelpu antena, kas izstrādāta, lai nodrošinātu uzticamu bezvadu savienojumu dažādās vidēs. Šī ierīce ir universāls risinājums, kas apvieno augstas izšķirtspējas visvirziena 5G antenu ar RUTX50 vienā IP67 klases korpusā. Šī integrācija ļauj izmantot jaunos TRB500 risinājumus lietošanai ārpus telpām.
QuSpot for TRB500 ir ideāls risinājums bezvadu sakaru nodrošināšanai ārpus telpām. Šo antenu ieteicams izmantot uz kustīgiem objektiem, piemēram, vilcieniem, autobusiem, jahtām vai kemperiem, kā arī pilsētu centros ar augstu signāla blīvumu. Lai nodrošinātu maksimālu veiktspēju, ir komplektā iekļauts Gigabit PoE sadalītājs.
Atbalstītās LTE / 5G joslas: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30,33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67,68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90,n95, n97, n98, n100, n101.
Tehniskās specifikācijas / Datu lapa
Saderīgi produkti
Specifikācijas
Mobīlais tīkls
Mobilā tīkla paaudze
4G (LTE), 5G (NR)
Antena
Mobilās antenas frekvences diapazons un pastiprinājums
0.617 - 0.96 (GHz) 2 (dBi), 1.7 - 2.7 (GHz) 4 (dBi), 3.3 - 4.3 (GHz) 4.5 (dBi)
Stara platums
360 °
Polarizācija
Vertikālā
VSWR
< 2.5
Pretestība
50 Ω
Fiziskie parametri
Materiāls
Alumīnijs, ABS plastmasa, Politetrafluoretilēns
Aizsardzība pret mitrumu un putekļiem
IP67
Izmēri
160 x 160 x 240 mm
Svars
1.5 kg
Darbības temperatūra
-40 °C līdz 75 °C
Vide
Āra
Montāžas veids
Staba stiprinājums
Iepakojumā iekļauts
Ārējais barošanas bloks
Nav iekļauts
