Zīmols
Ražotāja daļas nr
PR1LF435
Garantija
?
24 mēneši
EAN numurs
0708747440805

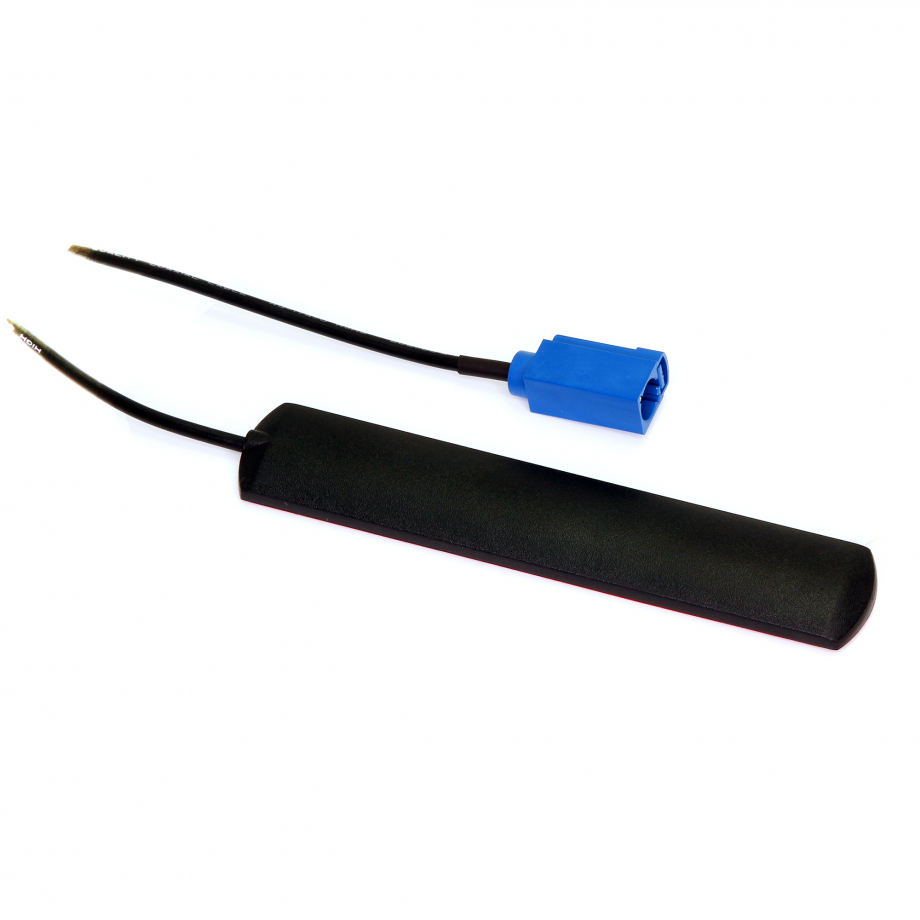

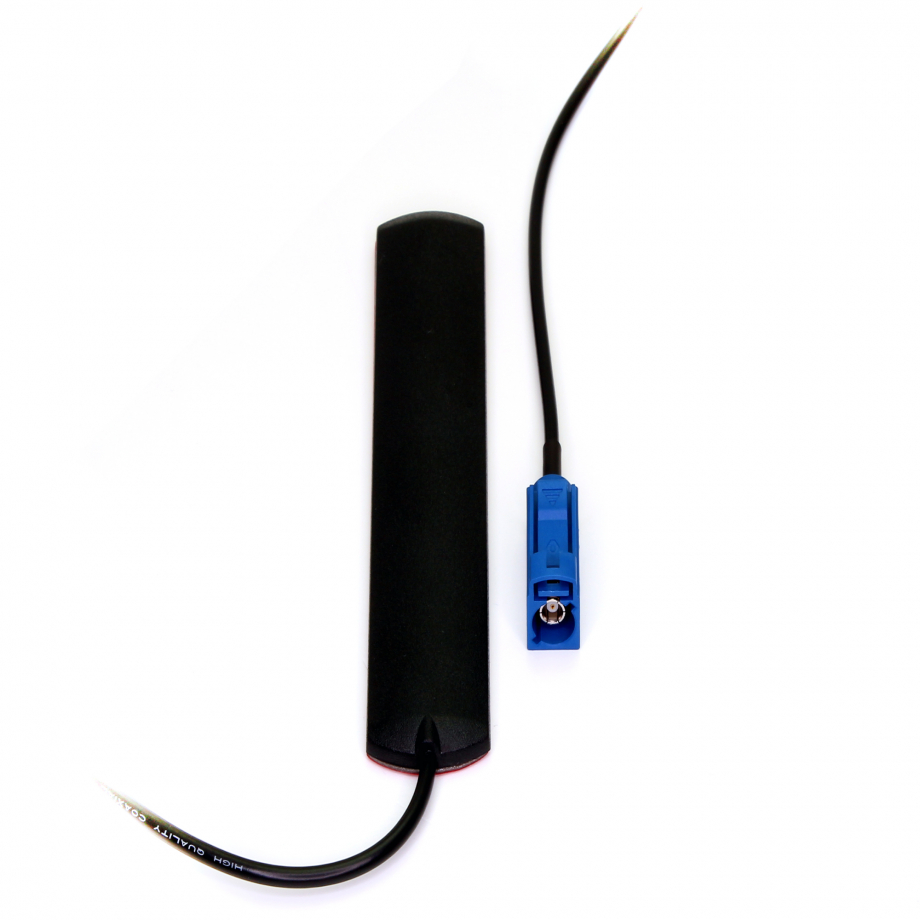

Teltonika mobilā antena 3.5dBi, pašlīmējošā, Fakra D Female
Certified Teltonika Engineers
Official Teltonika Distributor
nav noliktavā
?
6.22 €
6.22 €
Noliktavā nepietiek preces. Lūdzu, reģistrējieties, lai noformētu iepriekšpasūtījumu.
Certified Teltonika Engineers
Official Teltonika Distributor
Pieejamas alternatīvas
Preces apraksts
PR1LF435 ir pielīmējama mobilā antena ar vertikālu polarizāciju. Antena darbojas 690/ 900/ 1800/ 1900/ 2100/ 2700 MHz frekvenču diapazonā ar 3,5 dBi pastiprinājuma koeficientu. PR1LF435 ir aizsargāta pret putekļiem atbilstoši IP60 standartam. Šī antena ir aprīkota ar RG174 augstfrekvences koaksiālo kabeli ar taisnu Fakra D Female savienotāju. Kabeļa garums ir 2,5 m. Piestiprināšanas metode: pielīmēšana.
Tehniskās specifikācijas / Datu lapa
Specifikācijas
Antena
Mobilās antenas frekvences diapazons un pastiprinājums
0.690 - 2.700 (GHz) 3.5 (dBi)
Mobilās antenas pastiprinājums
3.5 dBi
Polarizācija
Vertikālā
Kabeļa garums
2.5 m
VSWR
< 2.0
Pretestība
50 Ω
Konnektori
RF savienotāji
(1) Fakra D Female
Fiziskie parametri
Krāsa
Melns

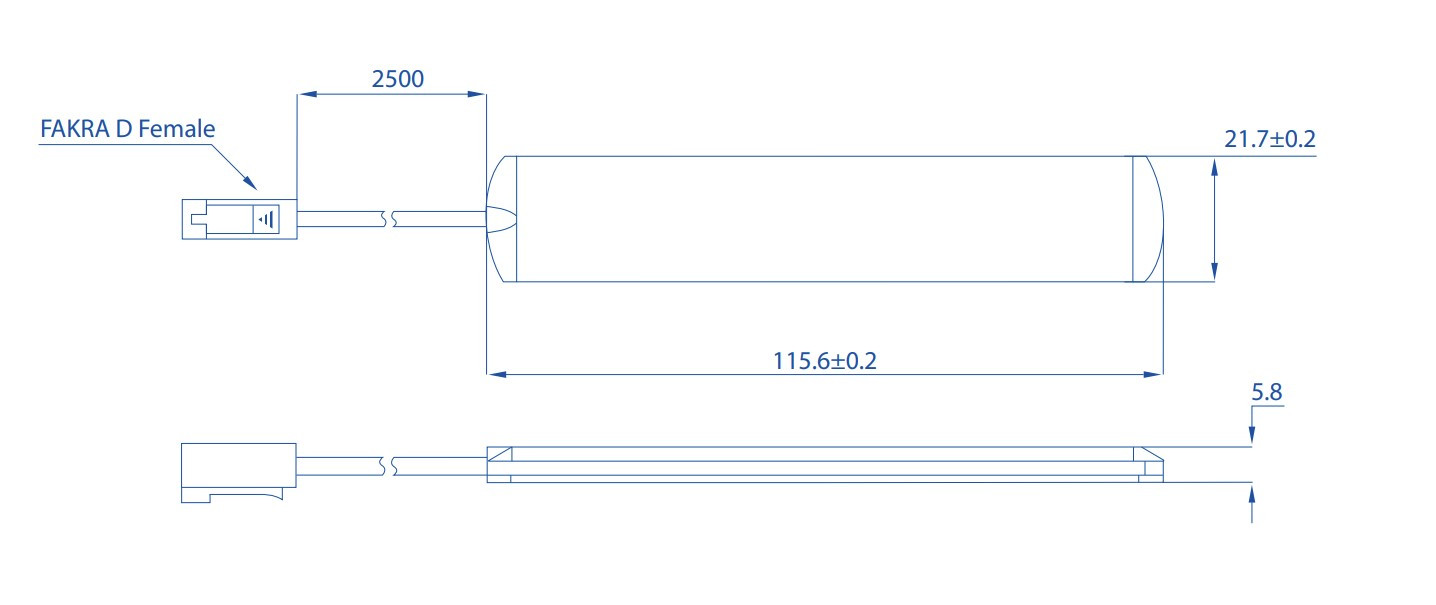

Izmēri
116 x 22 x 6 mm
Darbības temperatūra
-40 °C līdz 85 °C
Montāžas veids
Līme
